Schema documentation for component diggs:OrientationObservation

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:OrientationObservation

Namespace

http://diggsml.org/schemas/3

Annotations

Orientation observations describe the geometry of vectors or planar
surfaces encountered at a sampling feature, such as bedding, joints, cross-beds,
etc. These observations are designed to characterize regions with generalized
geometries. Individual measurements of planar geometries of boundaries or faults are
recorded in Discontinuity or Lithology observations.

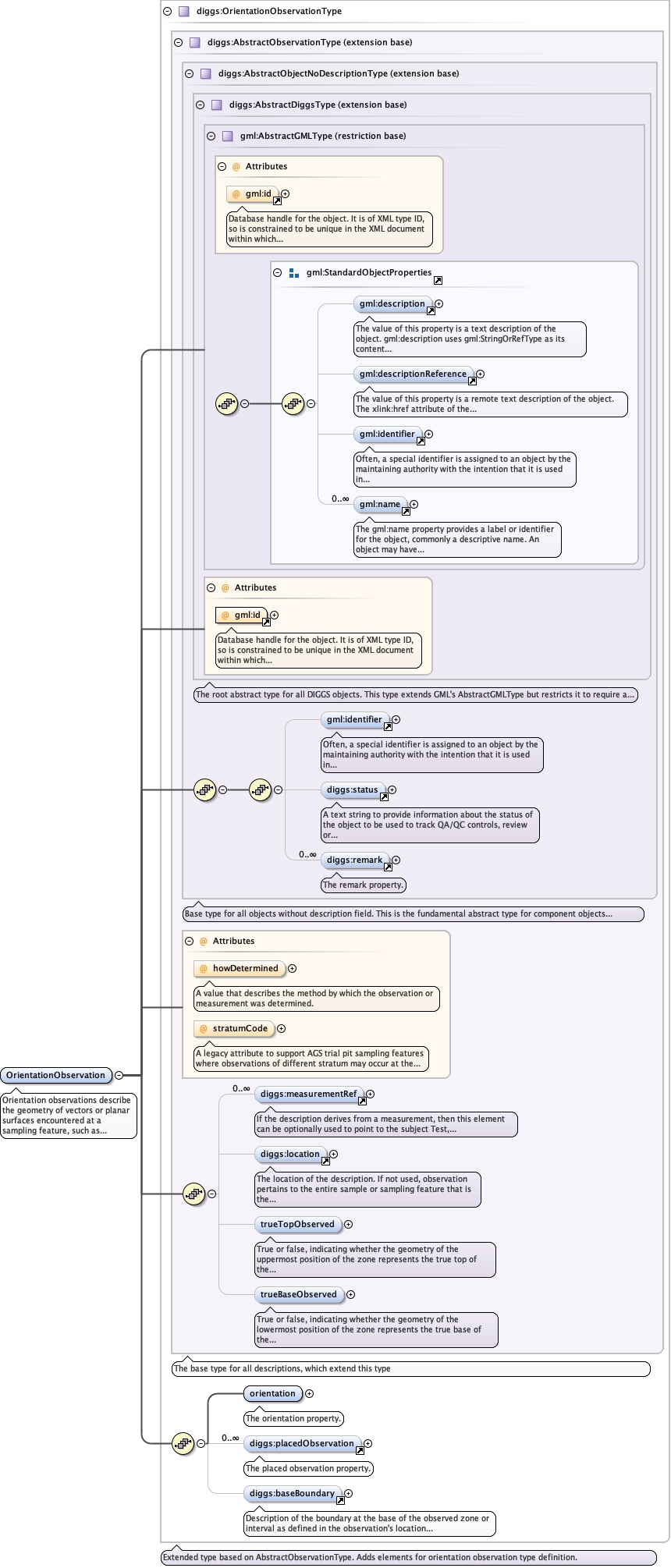

Diagram

Type

diggs:OrientationObservationType

Type hierarchy

gml:AbstractGMLType
- diggs:AbstractDiggsType
  - diggs:AbstractObjectNoDescriptionType
    - diggs:AbstractObservationType
      - diggs:OrientationObservationType

Properties

content

complex

Used by

Complex Type

diggs:OrientationObservationPropertyType

Model

gml:identifier{0,1} , diggs:status{0,1} , diggs:remark* , diggs:measurementRef* , diggs:location{0,1} , diggs:trueTopObserved{0,1} , diggs:trueBaseObserved{0,1} , diggs:orientation , diggs:placedObservation* , diggs:baseBoundary{0,1}

Children

diggs:baseBoundary, diggs:location, diggs:measurementRef, diggs:orientation, diggs:placedObservation, diggs:remark, diggs:status, diggs:trueBaseObserved, diggs:trueTopObserved, gml:identifier

Instance

<diggs:OrientationObservation howDetermined="" gml:id="" stratumCode="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:measurementRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:measurementRef>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:location>
  <diggs:trueTopObserved>{0,1}</diggs:trueTopObserved>
  <diggs:trueBaseObserved>{0,1}</diggs:trueBaseObserved>
  <diggs:orientation>{1,1}</diggs:orientation>
  <diggs:placedObservation>{0,unbounded}</diggs:placedObservation>
  <diggs:baseBoundary>{0,1}</diggs:baseBoundary>
</diggs:OrientationObservation>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

howDetermined

diggs:DescriptorMethodEnumType

optional

A value that describes the method by which the observation or
measurement was determined.

stratumCode

string

optional

A legacy attribute to support AGS trial pit sampling features
where observations of different stratum may occur at the same depth in a
pit. It is a reference letter or number whose sole purpose is to link
the stratum shown on a face sketch of the trial pit to the specific
observation.

Source

<element name="OrientationObservation" type="diggs:OrientationObservationType">
  <annotation>
    <documentation>Orientation observations describe the geometry of vectors or planar surfaces encountered at a sampling feature, such as bedding, joints, cross-beds, etc. These observations are designed to characterize regions with generalized geometries. Individual measurements of planar geometries of boundaries or faults are recorded in Discontinuity or Lithology observations.</documentation>
  </annotation>
</element>
