Schema documentation for component diggs:GroupGroupType

Showing:

Annotations

Attributes

Diagrams

Model

Source

Used by

Complex Type diggs:GroupGroupType

Namespace

http://diggsml.org/schemas/3

Annotations

Extended type based on AbstractGroupType. Adds elements for group group type definition.

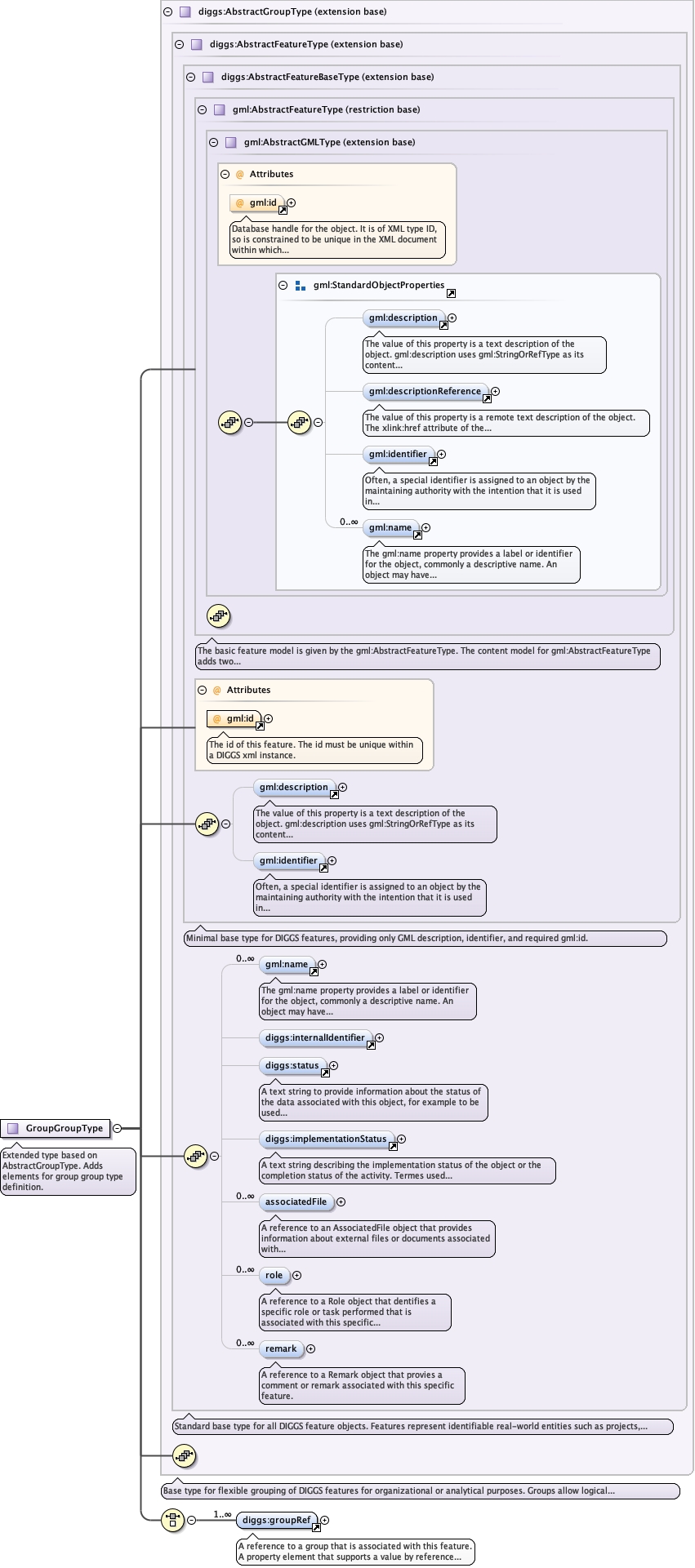

Diagram

Type

extension of diggs:AbstractGroupType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - diggs:AbstractFeatureBaseType
    - diggs:AbstractFeatureType
      - diggs:AbstractGroupType

        diggs:GroupGroupType

Used by

Element

diggs:GroupGroup

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , (diggs:groupRef+)

Children

diggs:associatedFile, diggs:groupRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="GroupGroupType">
  <annotation>
    <documentation>Extended type based on AbstractGroupType. Adds elements for group group type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractGroupType">
      <choice>
        <element maxOccurs="unbounded" minOccurs="1" ref="diggs:groupRef"/>
      </choice>
    </extension>
  </complexContent>
</complexType>
