Element diggs:BusinessAssociateType / diggs:title
Namespace http://diggsml.org/schemas/3
Annotations

A title for a person (eg. Mr., Ms., Sra., Dr. etc) that
precedes the name. Corporate titles (eg. Inc., Ltd., etc) or
suffixes (eg. PhD) would not be entered here, but included in the
BusinessAssociate's name.

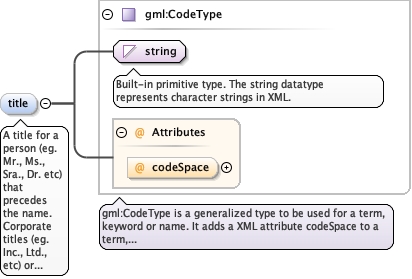

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="title" type="gml:CodeType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A title for a person (eg. Mr., Ms., Sra., Dr. etc) that precedes the name. Corporate titles (eg. Inc., Ltd., etc) or suffixes (eg. PhD) would not be entered here, but included in the BusinessAssociate's name.</documentation>
  </annotation>
</element>
Element diggs:BusinessAssociateType / diggs:address
Namespace http://diggsml.org/schemas/3
Annotations

Mailing address for the BusinessAssociate
Diagram
DiagramCommon_xsd_Element_diggs_Address.tmp#AddressCommon_xsd_Complex_Type_diggs_AddressPropertyType.tmp#AddressPropertyType
Type diggs:AddressPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Address
Instance

<diggs:address xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Address gml:id="">{1,1}</diggs:Address>
</diggs:address>
Source

<element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Mailing address for the BusinessAssociate</documentation>
  </annotation>
</element>
Element diggs:BusinessAssociateType / diggs:emailAddress
Namespace http://diggsml.org/schemas/3
Annotations

An email address for the BusinessAssociate. The type of
email (eg. business or personal) is defined in the type
attribute.

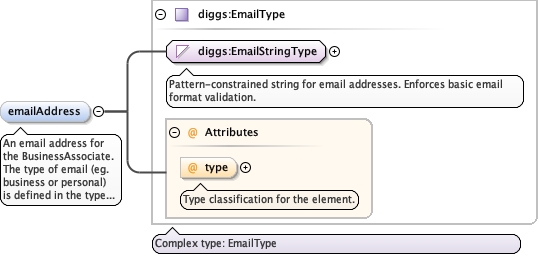

Diagram
DiagramCommon_xsd_Simple_Type_diggs_EmailStringType.tmp#EmailStringTypeCommon_xsd_Complex_Type_diggs_EmailType.tmp#EmailType_typeCommon_xsd_Complex_Type_diggs_EmailType.tmp#EmailType
Type diggs:EmailType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
type diggs:ExtEmailEnumType optional
Type classification for the element.
Source

<element name="emailAddress" type="diggs:EmailType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>An email address for the BusinessAssociate. The type of email (eg. business or personal) is defined in the type attribute.</documentation>
  </annotation>
</element>
Element diggs:BusinessAssociateType / diggs:phoneNumber
Namespace http://diggsml.org/schemas/3
Annotations

A telephone number for the BusinessAssociate. The type of
number (eg. mobile, fax, etc.) is described in the type
attribute.

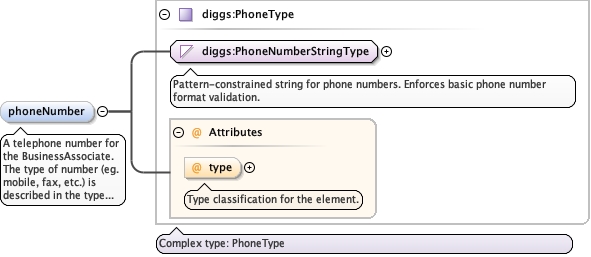

Diagram
DiagramCommon_xsd_Simple_Type_diggs_PhoneNumberStringType.tmp#PhoneNumberStringTypeCommon_xsd_Complex_Type_diggs_PhoneType.tmp#PhoneType_typeCommon_xsd_Complex_Type_diggs_PhoneType.tmp#PhoneType
Type diggs:PhoneType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use Annotation
type diggs:ExtPhoneEnumType optional
Type classification for the element.
Source

<element name="phoneNumber" type="diggs:PhoneType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A telephone number for the BusinessAssociate. The type of number (eg. mobile, fax, etc.) is described in the type attribute.</documentation>
  </annotation>
</element>
Element diggs:BusinessAssociateType / diggs:associatedWith
Namespace http://diggsml.org/schemas/3
Annotations

A BusinessAssociate that is associated with this one.
This can be an xlink:href pointer to the gml:id of another
BusinessAssociate object or an embedded BusinessAssociate
object

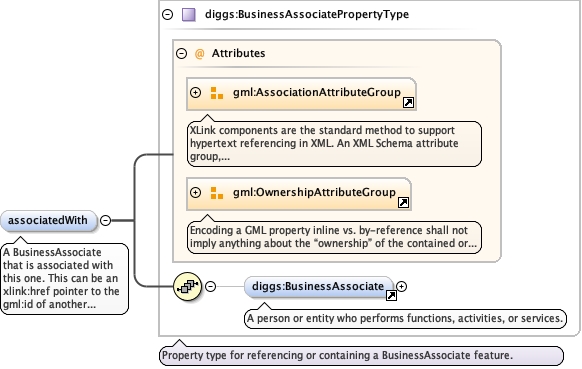

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateCommon_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:BusinessAssociate
Instance

<diggs:associatedWith xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:BusinessAssociate gml:id="">{0,1}</diggs:BusinessAssociate>
</diggs:associatedWith>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="associatedWith" type="diggs:BusinessAssociatePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:BusinessAssociate</appinfo>
    <documentation>A BusinessAssociate that is associated with this one. This can be an xlink:href pointer to the gml:id of another BusinessAssociate object or an embedded BusinessAssociate object</documentation>
  </annotation>
</element>
Complex Type diggs:BusinessAssociateType
Namespace http://diggsml.org/schemas/3
Annotations

Complex type: BusinessAssociateType

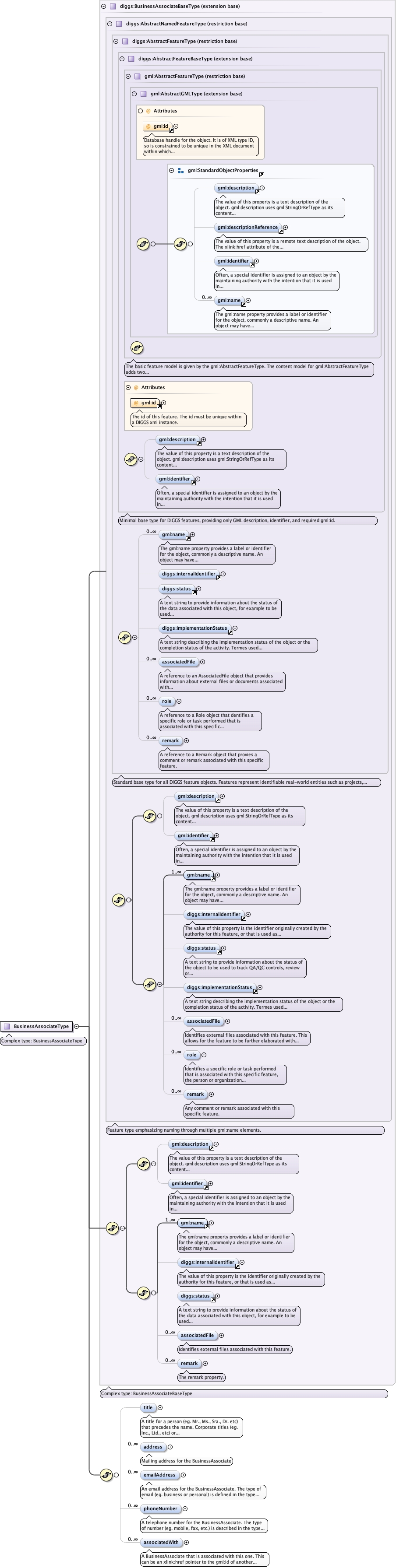

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Complex_Type_diggs_BusinessAssociateBaseType.tmp#BusinessAssociateBaseType_associatedFileCommon_xsd_Complex_Type_diggs_BusinessAssociateBaseType.tmp#BusinessAssociateBaseType_remarkCommon_xsd_Complex_Type_diggs_BusinessAssociateBaseType.tmp#BusinessAssociateBaseTypeCommon_xsd_Complex_Type_diggs_BusinessAssociateType.tmp#BusinessAssociateType_titleCommon_xsd_Complex_Type_diggs_BusinessAssociateType.tmp#BusinessAssociateType_addressCommon_xsd_Complex_Type_diggs_BusinessAssociateType.tmp#BusinessAssociateType_emailAddressCommon_xsd_Complex_Type_diggs_BusinessAssociateType.tmp#BusinessAssociateType_phoneNumberCommon_xsd_Complex_Type_diggs_BusinessAssociateType.tmp#BusinessAssociateType_associatedWith
Type extension of diggs:BusinessAssociateBaseType
Type hierarchy
Used by
Model
Children diggs:address, diggs:associatedFile, diggs:associatedWith, diggs:emailAddress, diggs:internalIdentifier, diggs:phoneNumber, diggs:remark, diggs:status, diggs:title, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="BusinessAssociateType">
  <annotation>
    <documentation>Complex type: BusinessAssociateType</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:BusinessAssociateBaseType">
      <sequence>
        <element name="title" type="gml:CodeType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A title for a person (eg. Mr., Ms., Sra., Dr. etc) that precedes the name. Corporate titles (eg. Inc., Ltd., etc) or suffixes (eg. PhD) would not be entered here, but included in the BusinessAssociate's name.</documentation>
          </annotation>
        </element>
        <element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>Mailing address for the BusinessAssociate</documentation>
          </annotation>
        </element>
        <element name="emailAddress" type="diggs:EmailType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>An email address for the BusinessAssociate. The type of email (eg. business or personal) is defined in the type attribute.</documentation>
          </annotation>
        </element>
        <element name="phoneNumber" type="diggs:PhoneType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A telephone number for the BusinessAssociate. The type of number (eg. mobile, fax, etc.) is described in the type attribute.</documentation>
          </annotation>
        </element>
        <element name="associatedWith" type="diggs:BusinessAssociatePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <appinfo source="urn:x-gml:targetElement">diggs:BusinessAssociate</appinfo>
            <documentation>A BusinessAssociate that is associated with this one. This can be an xlink:href pointer to the gml:id of another BusinessAssociate object or an embedded BusinessAssociate object</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
