Schema documentation for component gml:DataBlock

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element gml:DataBlock

Namespace

http://www.opengis.net/gml/3.2

Annotations

gml:DataBlock describes the Range as a block of text encoded values similar to
a Common Separated Value (CSV) representation. The range set parameterization is described
by the property gml:rangeParameters.

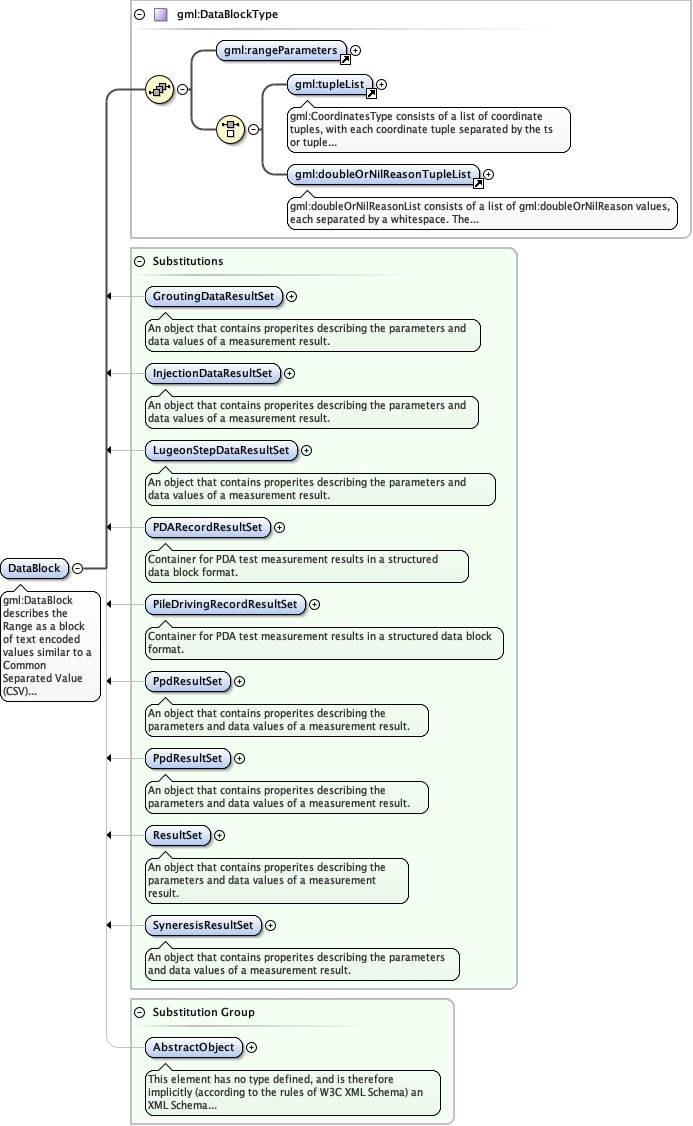

Diagram

Type

gml:DataBlockType

Properties

content

complex

Substitution Group

Substitution Group Affiliation

gml:AbstractObject

Used by

Complex Type

gml:RangeSetType

Model

gml:rangeParameters , (gml:tupleList | gml:doubleOrNilReasonTupleList)

Children

gml:doubleOrNilReasonTupleList, gml:rangeParameters, gml:tupleList

Instance

<gml:DataBlock xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:rangeParameters xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:rangeParameters>
  <gml:tupleList cs="," decimal="." ts=" ">{1,1}</gml:tupleList>
  <gml:doubleOrNilReasonTupleList>{1,1}</gml:doubleOrNilReasonTupleList>
</gml:DataBlock>

Source

<element name="DataBlock" type="gml:DataBlockType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>gml:DataBlock describes the Range as a block of text encoded values similar to a Common Separated Value (CSV) representation. The range set parameterization is described by the property gml:rangeParameters.</documentation>
  </annotation>
</element>
