Schema documentation for component diggs:PDARecordResultSet

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:PDARecordResultSet

Namespace

http://diggsml.org/schema-dev

Annotations

Container for PDA test measurement results in a structured data block
format.

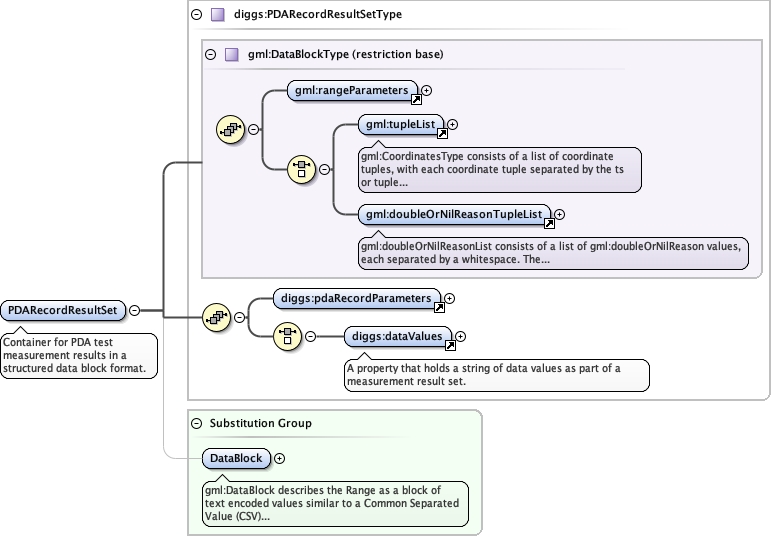

Diagram

Type

diggs:PDARecordResultSetType

Type hierarchy

gml:DataBlockType
- diggs:PDARecordResultSetType

Properties

content

complex

Substitution Group Affiliation

gml:DataBlock

Used by

Complex Type

diggs:PDARecordResultsPropertyType

Model

diggs:pdaRecordParameters , (diggs:dataValues)

Children

diggs:dataValues, diggs:pdaRecordParameters

Instance

<diggs:PDARecordResultSet xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:pdaRecordParameters xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:pdaRecordParameters>
  <diggs:dataValues cs="," decimal="." ts=" ">{1,1}</diggs:dataValues>
</diggs:PDARecordResultSet>

Source

<element name="PDARecordResultSet" substitutionGroup="gml:DataBlock" type="diggs:PDARecordResultSetType">
  <annotation>
    <documentation>Container for PDA test measurement results in a structured data block format.</documentation>
  </annotation>
</element>
