Schema documentation for component diggs:dataValues

Showing:

Annotations

Attributes

Diagrams

Properties

Source

Used by

Element diggs:dataValues

Namespace

http://diggsml.org/schema-dev

Annotations

A property that holds a string of data values as part of a measurement result set.

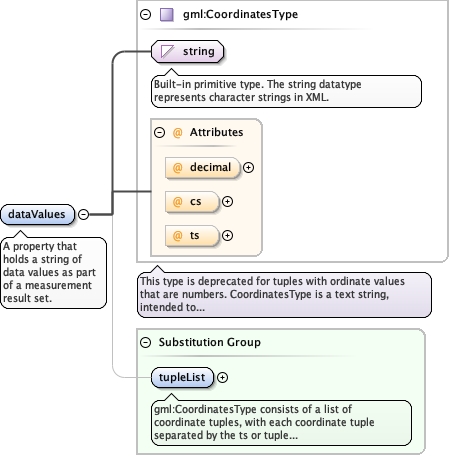

Diagram

Type

gml:CoordinatesType

Properties

content

complex

Substitution Group Affiliation

gml:tupleList

Used by

Complex Types

diggs:GroutingDataResultSetType, diggs:InjectionDataResultSetType, diggs:LugeonStepDataResultSetType, diggs:PDARecordResultSetType, diggs:PileDrivingRecordResultSetType, diggs:PpdResultSetType, diggs:ResultSetType, diggs:SyneresisResultSetType, diggs_geo:PpdResultSetType

Attributes

QName	Type	Default	Use
cs	string	,	optional
decimal	string	.	optional
ts	string		optional

Source

<element name="dataValues" substitutionGroup="gml:tupleList" type="gml:CoordinatesType">
  <annotation>
    <documentation>A property that holds a string of data values as part of a measurement result set.</documentation>
  </annotation>
</element>
