Schema documentation for component diggs:SyneresisResultSetType

Showing:

Diagrams

Model

Source

Used by

Complex Type diggs:SyneresisResultSetType

Namespace

http://diggsml.org/schema-dev

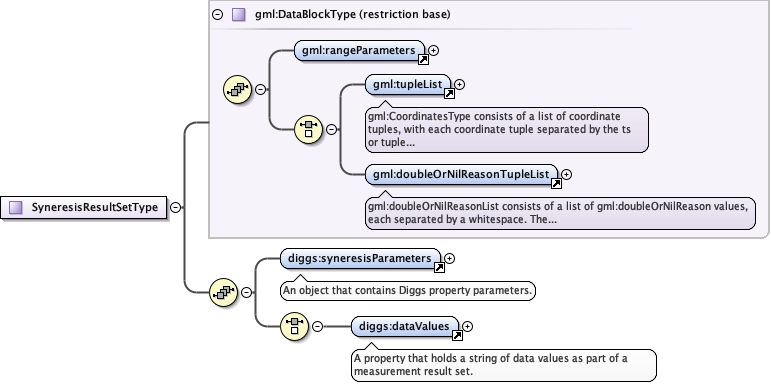

Diagram

Type

restriction of gml:DataBlockType

Type hierarchy

gml:DataBlockType
- diggs:SyneresisResultSetType

Used by

Element

diggs:SyneresisResultSet

Model

diggs:syneresisParameters , (diggs:dataValues)

Children

diggs:dataValues, diggs:syneresisParameters

Source

<complexType name="SyneresisResultSetType">
  <complexContent>
    <restriction base="gml:DataBlockType">
      <sequence>
        <element ref="diggs:syneresisParameters"/>
        <choice>
          <element ref="diggs:dataValues"/>
        </choice>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
