Schema documentation for component diggs:PileDrivingRecordResultSet

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:PileDrivingRecordResultSet

Namespace

http://diggsml.org/schema-dev

Annotations

Container for PDA test measurement results in a structured data block
format.

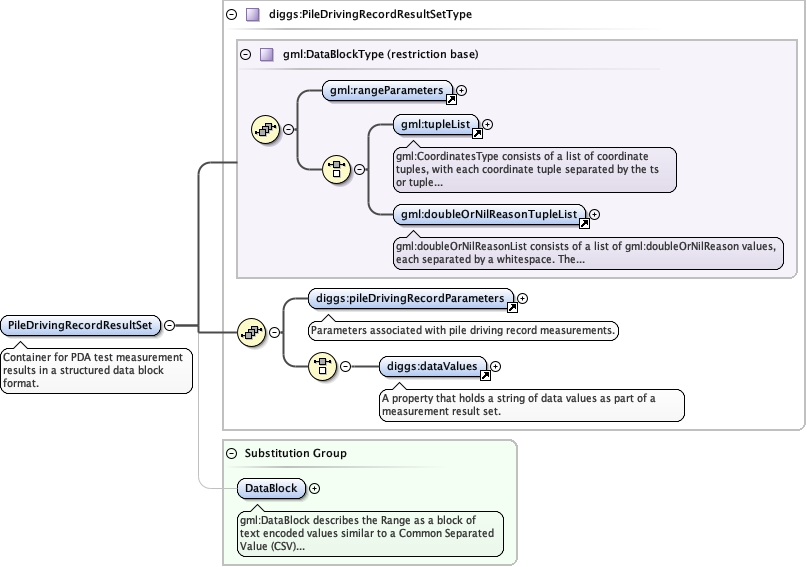

Diagram

Type

diggs:PileDrivingRecordResultSetType

Type hierarchy

gml:DataBlockType
- diggs:PileDrivingRecordResultSetType

Properties

content

complex

Substitution Group Affiliation

gml:DataBlock

Used by

Complex Type

diggs:PileDrivingRecordResultsPropertyType

Model

diggs:pileDrivingRecordParameters , (diggs:dataValues)

Children

diggs:dataValues, diggs:pileDrivingRecordParameters

Instance

<diggs:PileDrivingRecordResultSet xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:pileDrivingRecordParameters xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:pileDrivingRecordParameters>
  <diggs:dataValues cs="," decimal="." ts=" ">{1,1}</diggs:dataValues>
</diggs:PileDrivingRecordResultSet>

Source

<element name="PileDrivingRecordResultSet" substitutionGroup="gml:DataBlock" type="diggs:PileDrivingRecordResultSetType">
  <annotation>
    <documentation>Container for PDA test measurement results in a structured data block format.</documentation>
  </annotation>
</element>
