Element gml:AbstractRing
Namespace http://www.opengis.net/gml/3.2
Annotations

An abstraction of a ring to support surface boundaries of different complexity.
The AbstractRing element is the abstract head of the substituition group for all closed
boundaries of a surface patch.

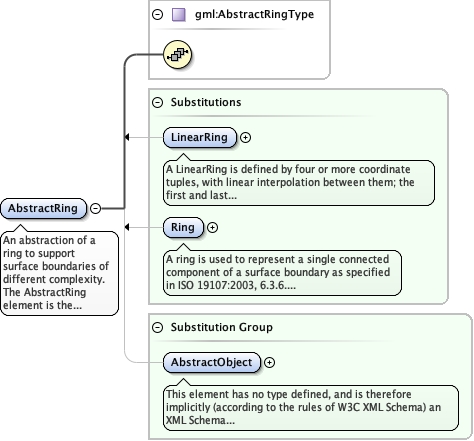

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractRingType.tmp#AbstractRingTypegml3_2Profile_diggs_xsd_Element_gml_LinearRing.tmp#LinearRinggml3_2Profile_diggs_xsd_Element_gml_Ring.tmp#Ringgml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#http___www.opengis.net_gml_3.2_AbstractObject
Type gml:AbstractRingType
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Source

<element name="AbstractRing" type="gml:AbstractRingType" abstract="true" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>An abstraction of a ring to support surface boundaries of different complexity. The AbstractRing element is the abstract head of the substituition group for all closed boundaries of a surface patch.</documentation>
  </annotation>
</element>
