Element diggs:SpliceType / diggs:spliceNumber
Namespace http://diggsml.org/schema-dev
Annotations

A number identifying the splice. Splices should be
numbered sequentially from the top down.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="spliceNumber" type="positiveInteger">
  <annotation>
    <documentation>A number identifying the splice. Splices should be numbered sequentially from the top down.</documentation>
  </annotation>
</element>
Element diggs:SpliceType / diggs:spliceType
Namespace http://diggsml.org/schema-dev
Annotations

A code describing the type of splice.

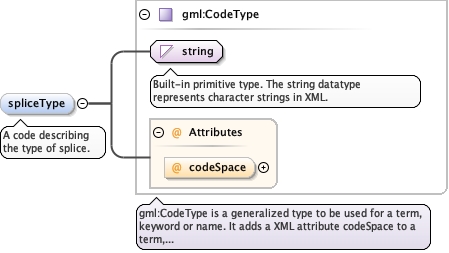

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="spliceType" type="gml:CodeType">
  <annotation>
    <documentation>A code describing the type of splice.</documentation>
  </annotation>
</element>
Element diggs:SpliceType / diggs:spliceLocation
Namespace http://diggsml.org/schema-dev
Annotations

The location of the splice in 3D space.

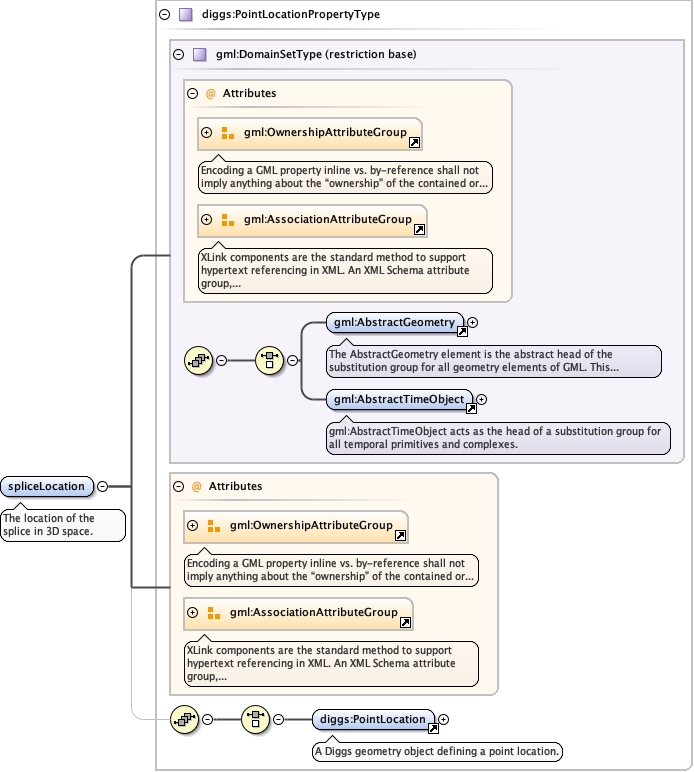

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupKernel_xsd_Element_diggs_PointLocation.tmp#PointLocationKernel_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Children diggs:PointLocation
Instance

<diggs:spliceLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:spliceLocation>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="1" name="spliceLocation" type="diggs:PointLocationPropertyType">
  <annotation>
    <documentation>The location of the splice in 3D space.</documentation>
  </annotation>
</element>
Complex Type diggs:SpliceType
Namespace http://diggsml.org/schema-dev
Annotations

The properties of a splice in a pile.

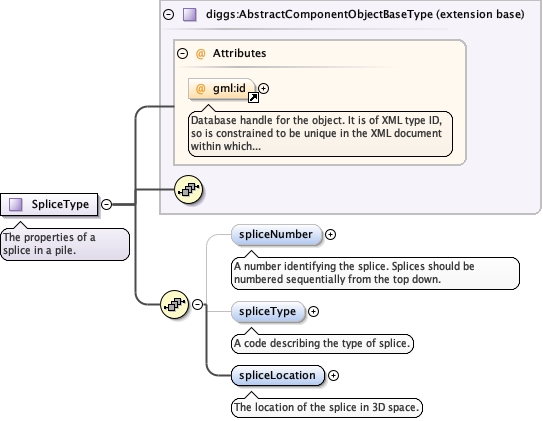

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypePiling_xsd_Complex_Type_diggs_SpliceType.tmp#SpliceType_spliceNumberPiling_xsd_Complex_Type_diggs_SpliceType.tmp#SpliceType_spliceTypePiling_xsd_Complex_Type_diggs_SpliceType.tmp#SpliceType_spliceLocation
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Element diggs:Splice
Model
Children diggs:spliceLocation, diggs:spliceNumber, diggs:spliceType
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SpliceType">
  <annotation>
    <documentation>The properties of a splice in a pile.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element minOccurs="0" name="spliceNumber" type="positiveInteger">
          <annotation>
            <documentation>A number identifying the splice. Splices should be numbered sequentially from the top down.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="spliceType" type="gml:CodeType">
          <annotation>
            <documentation>A code describing the type of splice.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="spliceLocation" type="diggs:PointLocationPropertyType">
          <annotation>
            <documentation>The location of the splice in 3D space.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
