Element diggs:OffsetParameters
Namespace http://diggsml.org/schemas/3
Annotations

The parameters that define a lateral offset from the centerline of a linear element:
the perpendicular distance from the centerline, positive on the side given by
offsetDirection and negative on the other. Its presence in a linear referencing
method makes the method two-dimensional. Examples are the swaths of side-scan sonar
or sub-bottom profilers on a vessel trackline, offset soil sampling along a survey
transect, and monitoring points parallel to a pipeline.

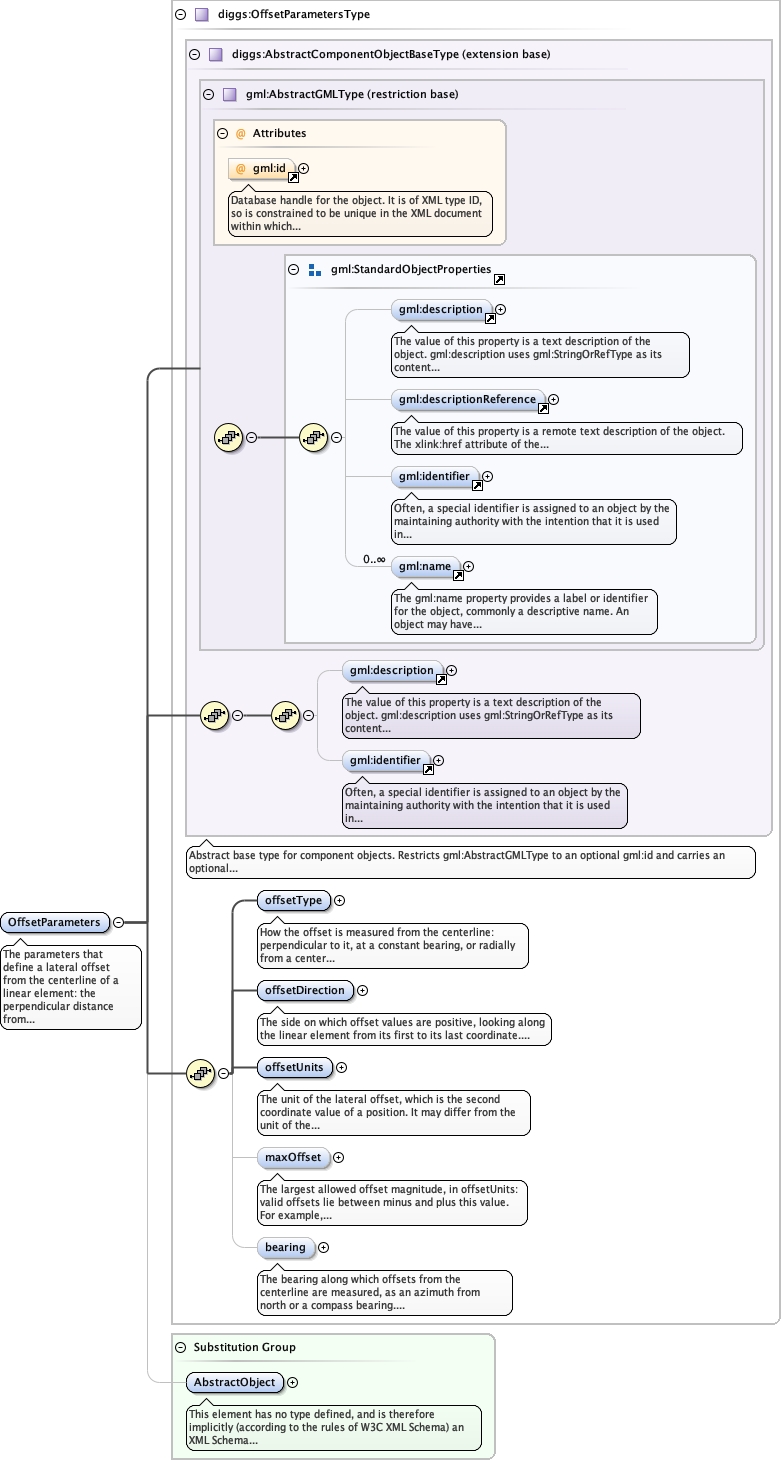

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetTypeLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetDirectionLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetUnitsLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_maxOffsetLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_bearingLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type diggs:OffsetParametersType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:bearing, diggs:maxOffset, diggs:offsetDirection, diggs:offsetType, diggs:offsetUnits, gml:description, gml:identifier
Instance

<diggs:OffsetParameters gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:offsetType>{1,1}</diggs:offsetType>
  <diggs:offsetDirection>{1,1}</diggs:offsetDirection>
  <diggs:offsetUnits>{1,1}</diggs:offsetUnits>
  <diggs:maxOffset>{0,1}</diggs:maxOffset>
  <diggs:bearing howDetermined="" qualifier="" uom="">{0,1}</diggs:bearing>
</diggs:OffsetParameters>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="OffsetParameters" type="diggs:OffsetParametersType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>The parameters that define a lateral offset from the centerline of a linear element: the perpendicular distance from the centerline, positive on the side given by offsetDirection and negative on the other. Its presence in a linear referencing method makes the method two-dimensional. Examples are the swaths of side-scan sonar or sub-bottom profilers on a vessel trackline, offset soil sampling along a survey transect, and monitoring points parallel to a pipeline.</documentation>
  </annotation>
</element>
