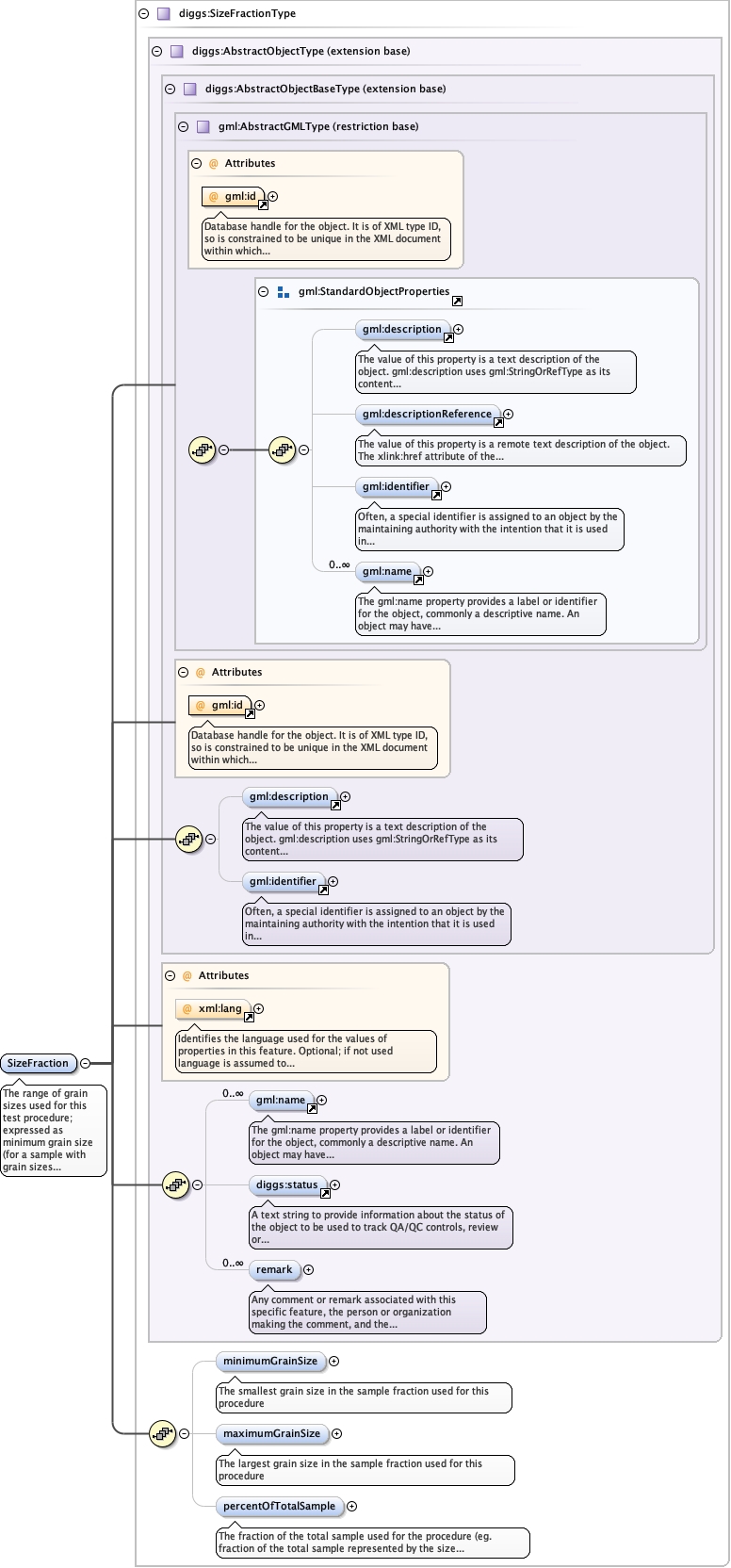

Schema documentation for component diggs:SizeFraction

The range of grain sizes used for this test procedure; expressed as minimum grain size (for a sample with grain sizes above a certain size), or maximum grain size (for a sample with grain sizes below a certain). Both minimumGrainSize and maximumGrainSize may be populated to represent a sample with grain sizes between the two specified.

<diggs:SizeFraction gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2"> <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description> <gml:identifier codeSpace="">{0,1}</gml:identifier> <gml:name codeSpace="">{0,unbounded}</gml:name> <diggs:status codeSpace="">{0,1}</diggs:status> <diggs:remark>{0,unbounded}</diggs:remark> <diggs:minimumGrainSize uom="">{0,1}</diggs:minimumGrainSize> <diggs:maximumGrainSize uom="">{0,1}</diggs:maximumGrainSize> <diggs:percentOfTotalSample uom="">{0,1}</diggs:percentOfTotalSample> </diggs:SizeFraction>

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

<element name="SizeFraction" type="diggs:SizeFractionType"> <annotation> <documentation>The range of grain sizes used for this test procedure; expressed as minimum grain size (for a sample with grain sizes above a certain size), or maximum grain size (for a sample with grain sizes below a certain). Both minimumGrainSize and maximumGrainSize may be populated to represent a sample with grain sizes between the two specified.</documentation> </annotation> </element>
