Element diggs:ParameterType / diggs:parameterName
Namespace http://diggsml.org/schema-dev
Annotations

A description or code to what the value property
represents. This is intended to be a controlled value from an
authority. If gml:name is also used for this parameter, the value of
parameterName must be the primary name defined for the parameter,
whereas gml:name provides additional paramter names defined by
ancillary authorities.

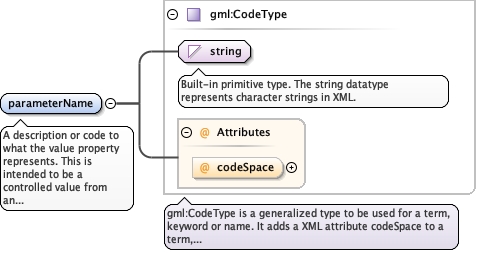

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="1" name="parameterName" type="gml:CodeType">
  <annotation>
    <documentation>A description or code to what the value property represents. This is intended to be a controlled value from an authority. If gml:name is also used for this parameter, the value of parameterName must be the primary name defined for the parameter, whereas gml:name provides additional paramter names defined by ancillary authorities.</documentation>
  </annotation>
</element>
Element diggs:ParameterType / diggs:parameterValue
Namespace http://diggsml.org/schema-dev
Annotations

A value associated with the name.

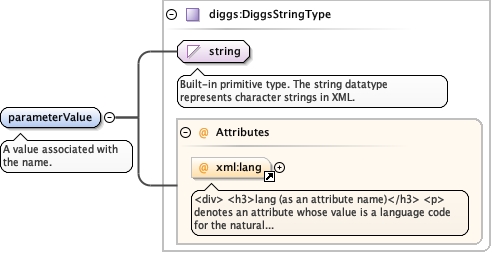

Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 1
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="1" name="parameterValue" type="diggs:DiggsStringType">
  <annotation>
    <documentation>A value associated with the name.</documentation>
  </annotation>
</element>
Element diggs:ParameterType / diggs:parameterMinValue
Namespace http://diggsml.org/schema-dev
Annotations

For numeric parameter values where a value range
is expressed instead of a fixed value, this property
contains the minimum value of the range.
Diagram
Diagram
Type double
Properties
content simple
Source

<element name="parameterMinValue" type="double">
  <annotation>
    <documentation>For numeric parameter values where a value range is expressed instead of a fixed value, this property contains the minimum value of the range.</documentation>
  </annotation>
</element>
Element diggs:ParameterType / diggs:parameterMaxValue
Namespace http://diggsml.org/schema-dev
Annotations

For numeric parameter values where a value range
is expressed instead of a fixed value, this property
contains the maximum value of the range.

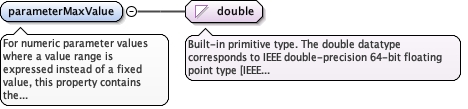

Diagram
Diagram
Type double
Properties
content simple
Source

<element name="parameterMaxValue" type="double">
  <annotation>
    <documentation>For numeric parameter values where a value range is expressed instead of a fixed value, this property contains the maximum value of the range.</documentation>
  </annotation>
</element>
Element diggs:ParameterType / diggs:parameterUnits
Namespace http://diggsml.org/schema-dev
Annotations

Unit of measure of the parameter.
Diagram
DiagramKernel_xsd_Simple_Type_diggs_AllUnits.tmp#AllUnits
Type diggs:AllUnits
Type hierarchy
Properties
content simple
minOccurs 0
Source

<element name="parameterUnits" type="diggs:AllUnits" minOccurs="0">
  <annotation>
    <documentation>Unit of measure of the parameter.</documentation>
  </annotation>
</element>
Complex Type diggs:ParameterType
Namespace http://diggsml.org/schema-dev

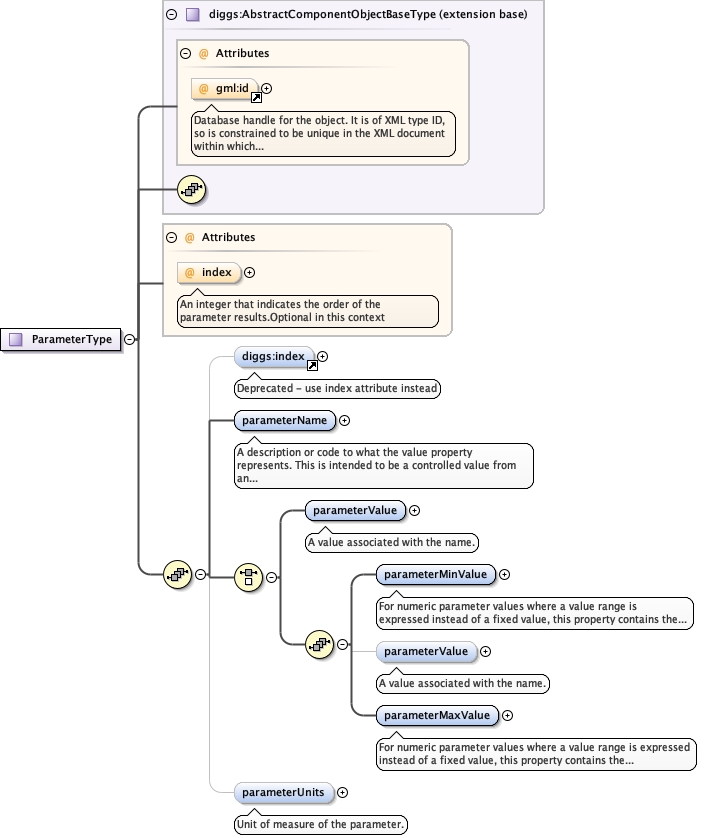

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idKernel_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_indexDeprecated_xsd_Element_diggs_index.tmp#indexKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterNameKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterValueKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterMinValueKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterMaxValueKernel_xsd_Complex_Type_diggs_ParameterType.tmp#ParameterType_parameterUnits
Type extension of diggs:AbstractComponentObjectBaseType
Type hierarchy
Used by
Model
Children diggs:index, diggs:parameterMaxValue, diggs:parameterMinValue, diggs:parameterName, diggs:parameterUnits, diggs:parameterValue
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
index positiveInteger optional
An integer that indicates the order of the parameter
results.Optional in this context
Source

<complexType name="ParameterType">
  <complexContent>
    <extension base="diggs:AbstractComponentObjectBaseType">
      <sequence>
        <element minOccurs="0" ref="diggs:index">
          <annotation>
            <documentation>Deprecated - use index attribute instead</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="parameterName" type="gml:CodeType">
          <annotation>
            <documentation>A description or code to what the value property represents. This is intended to be a controlled value from an authority. If gml:name is also used for this parameter, the value of parameterName must be the primary name defined for the parameter, whereas gml:name provides additional paramter names defined by ancillary authorities.</documentation>
          </annotation>
        </element>
        <choice>
          <element minOccurs="1" name="parameterValue" type="diggs:DiggsStringType">
            <annotation>
              <documentation>A value associated with the name.</documentation>
            </annotation>
          </element>
          <sequence>
            <element name="parameterMinValue" type="double">
              <annotation>
                <documentation>For numeric parameter values where a value range is expressed instead of a fixed value, this property contains the minimum value of the range.</documentation>
              </annotation>
            </element>
            <element minOccurs="0" name="parameterValue" type="diggs:DiggsStringType">
              <annotation>
                <documentation>A value associated with the name.</documentation>
              </annotation>
            </element>
            <element name="parameterMaxValue" type="double">
              <annotation>
                <documentation>For numeric parameter values where a value range is expressed instead of a fixed value, this property contains the maximum value of the range.</documentation>
              </annotation>
            </element>
          </sequence>
        </choice>
        <element name="parameterUnits" type="diggs:AllUnits" minOccurs="0">
          <annotation>
            <documentation>Unit of measure of the parameter.</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="index" type="positiveInteger" use="optional">
        <annotation>
          <documentation>An integer that indicates the order of the parameter results.Optional in this context</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:ParameterType / @index
Namespace No namespace
Annotations

An integer that indicates the order of the parameter
results.Optional in this context
Type positiveInteger
Properties
use optional
Used by
Complex Type diggs:ParameterType
Source

<attribute name="index" type="positiveInteger" use="optional">
  <annotation>
    <documentation>An integer that indicates the order of the parameter results.Optional in this context</documentation>
  </annotation>
</attribute>
