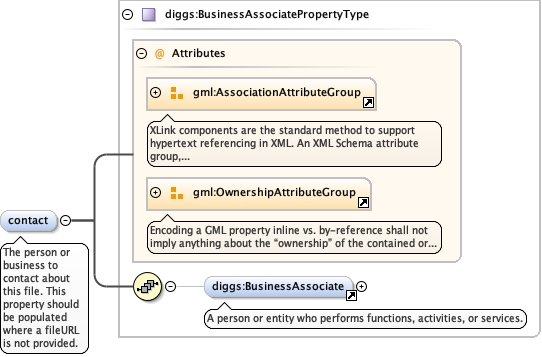

Element diggs:AssociatedFileType / diggs:contact
Namespace http://diggsml.org/schema-dev
Annotations

The person or business to contact about this file.
This property should be populated where a fileURL is not
provided.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupKernel_xsd_Element_diggs_BusinessAssociate.tmp#BusinessAssociateKernel_xsd_Complex_Type_diggs_BusinessAssociatePropertyType.tmp#BusinessAssociatePropertyType
Type diggs:BusinessAssociatePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:BusinessAssociate
Instance

<diggs:contact xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:BusinessAssociate gml:id="" xml:lang="">{0,1}</diggs:BusinessAssociate>
</diggs:contact>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="contact" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The person or business to contact about this file. This property should be populated where a fileURL is not provided.</documentation>
  </annotation>
</element>
Element diggs:AssociatedFileType / diggs:fileURL
Namespace http://diggsml.org/schema-dev
Annotations

Path to the digital file
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="fileURL" type="anyURI">
  <annotation>
    <documentation>Path to the digital file</documentation>
  </annotation>
</element>

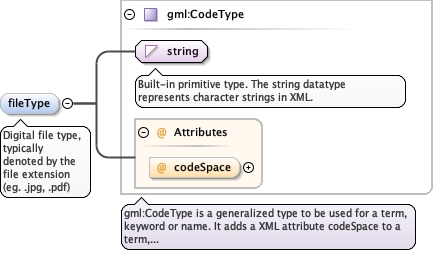

Element diggs:AssociatedFileType / diggs:fileType
Namespace http://diggsml.org/schema-dev
Annotations

Digital file type, typically denoted by the file
extension (eg. .jpg, .pdf)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="fileType" type="gml:CodeType">
  <annotation>
    <documentation>Digital file type, typically denoted by the file extension (eg. .jpg, .pdf)</documentation>
  </annotation>
</element>

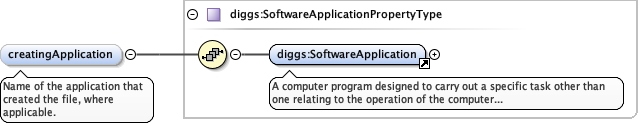

Element diggs:AssociatedFileType / diggs:creatingApplication
Namespace http://diggsml.org/schema-dev
Annotations

Name of the application that created the file, where
applicable.
Diagram
DiagramKernel_xsd_Element_diggs_SoftwareApplication.tmp#SoftwareApplicationKernel_xsd_Complex_Type_diggs_SoftwareApplicationPropertyType.tmp#SoftwareApplicationPropertyType
Type diggs:SoftwareApplicationPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:SoftwareApplication
Instance

<diggs:creatingApplication xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:SoftwareApplication gml:id="" xml:lang="">{1,1}</diggs:SoftwareApplication>
</diggs:creatingApplication>
Source

<element maxOccurs="1" minOccurs="0" name="creatingApplication" type="diggs:SoftwareApplicationPropertyType">
  <annotation>
    <documentation>Name of the application that created the file, where applicable.</documentation>
  </annotation>
</element>

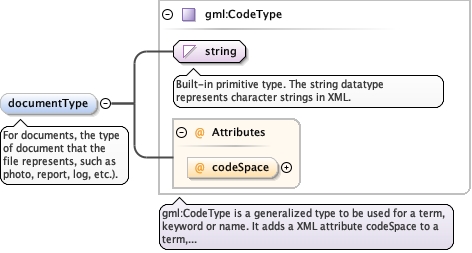

Element diggs:AssociatedFileType / diggs:documentType
Namespace http://diggsml.org/schema-dev
Annotations

For documents, the type of document that the file
represents, such as photo, report, log, etc.).
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="documentType" type="gml:CodeType">
  <annotation>
    <documentation>For documents, the type of document that the file represents, such as photo, report, log, etc.).</documentation>
  </annotation>
</element>

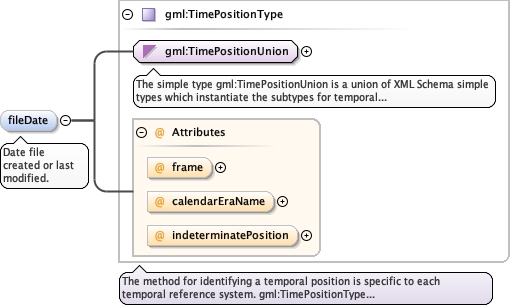

Element diggs:AssociatedFileType / diggs:fileDate
Namespace http://diggsml.org/schema-dev
Annotations

Date file created or last modified.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element maxOccurs="1" minOccurs="0" name="fileDate" type="gml:TimePositionType">
  <annotation>
    <documentation>Date file created or last modified.</documentation>
  </annotation>
</element>

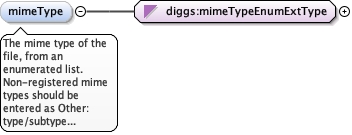

Element diggs:AssociatedFileType / diggs:mimeType
Namespace http://diggsml.org/schema-dev
Annotations

The mime type of the file, from an enumerated list. Non-registered mime types should be entered as Other: type/subtype where the subtype
should begin with "x-", eg.
application/x-segy.
Diagram
DiagramKernel_xsd_Simple_Type_diggs_mimeTypeEnumExtType.tmp#mimeTypeEnumExtType
Type diggs:mimeTypeEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="mimeType" type="diggs:mimeTypeEnumExtType">
  <annotation>
    <documentation>The mime type of the file, from an enumerated list. Non-registered mime types should be entered as Other: type/subtype where the subtype should begin with "x-", eg. application/x-segy.</documentation>
  </annotation>
</element>
Element diggs:AssociatedFileType / diggs:compression
Namespace http://diggsml.org/schema-dev
Annotations

A value that identifies the compression algorithm
used, if applicable (eg LZW).
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="compression" type="anyURI">
  <annotation>
    <documentation>A value that identifies the compression algorithm used, if applicable (eg LZW).</documentation>
  </annotation>
</element>
Element diggs:AssociatedFileType / diggs:encryption
Namespace http://diggsml.org/schema-dev
Annotations

A value that identifies the file encryption algorithm
used, if applicable (eg. AES).
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="encryption" type="anyURI">
  <annotation>
    <documentation>A value that identifies the file encryption algorithm used, if applicable (eg. AES).</documentation>
  </annotation>
</element>

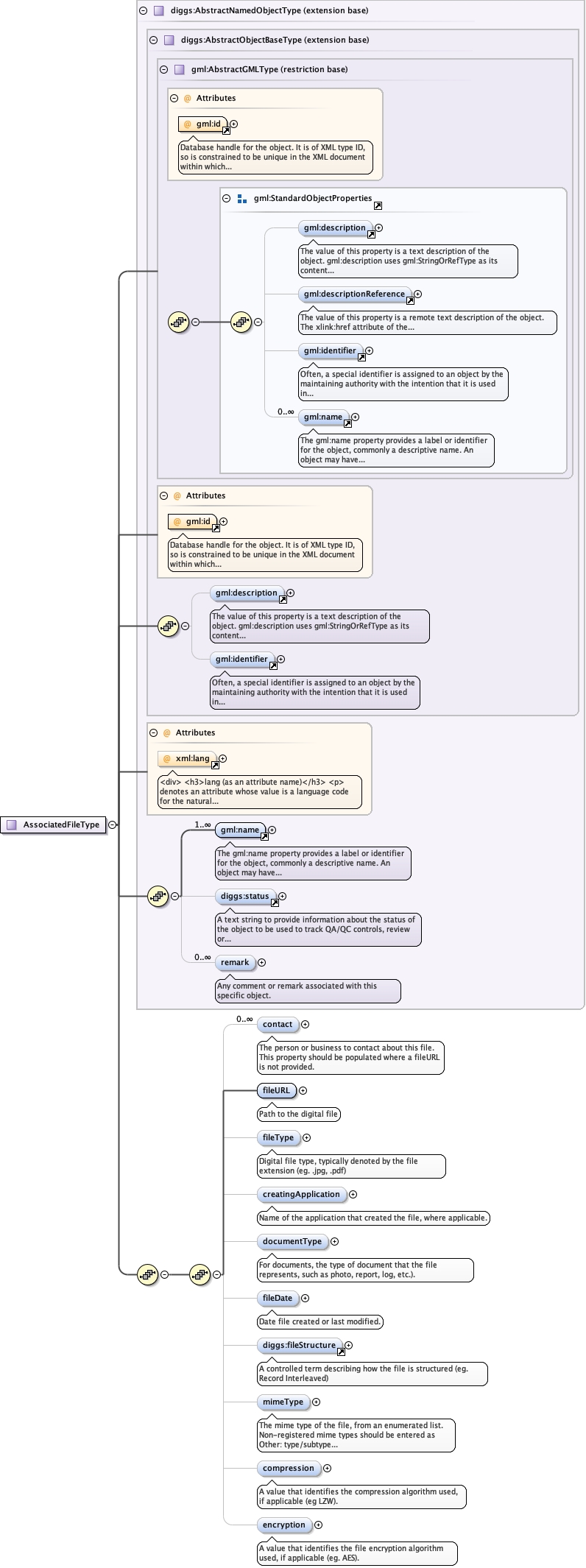

Complex Type diggs:AssociatedFileType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractNamedObjectType.tmp#AbstractNamedObjectTypeKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_contactKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileURLKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileTypeKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_creatingApplicationKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_documentTypeKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_fileDateKernel_xsd_Element_diggs_fileStructure.tmp#fileStructureKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_mimeTypeKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_compressionKernel_xsd_Complex_Type_diggs_AssociatedFileType.tmp#AssociatedFileType_encryption
Type extension of diggs:AbstractNamedObjectType
Type hierarchy
Used by
Model
Children diggs:compression, diggs:contact, diggs:creatingApplication, diggs:documentType, diggs:encryption, diggs:fileDate, diggs:fileStructure, diggs:fileType, diggs:fileURL, diggs:mimeType, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="AssociatedFileType">
  <complexContent>
    <extension base="diggs:AbstractNamedObjectType">
      <sequence>
        <sequence>
          <element minOccurs="0" name="contact" type="diggs:BusinessAssociatePropertyType" maxOccurs="unbounded">
            <annotation>
              <documentation>The person or business to contact about this file. This property should be populated where a fileURL is not provided.</documentation>
            </annotation>
          </element>
          <element minOccurs="1" name="fileURL" type="anyURI">
            <annotation>
              <documentation>Path to the digital file</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="fileType" type="gml:CodeType">
            <annotation>
              <documentation>Digital file type, typically denoted by the file extension (eg. .jpg, .pdf)</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="creatingApplication" type="diggs:SoftwareApplicationPropertyType">
            <annotation>
              <documentation>Name of the application that created the file, where applicable.</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="documentType" type="gml:CodeType">
            <annotation>
              <documentation>For documents, the type of document that the file represents, such as photo, report, log, etc.).</documentation>
            </annotation>
          </element>
          <element maxOccurs="1" minOccurs="0" name="fileDate" type="gml:TimePositionType">
            <annotation>
              <documentation>Date file created or last modified.</documentation>
            </annotation>
          </element>
          <element minOccurs="0" ref="diggs:fileStructure"/>
          <element minOccurs="0" name="mimeType" type="diggs:mimeTypeEnumExtType">
            <annotation>
              <documentation>The mime type of the file, from an enumerated list. Non-registered mime types should be entered as Other: type/subtype where the subtype should begin with "x-", eg. application/x-segy.</documentation>
            </annotation>
          </element>
          <element minOccurs="0" name="compression" type="anyURI">
            <annotation>
              <documentation>A value that identifies the compression algorithm used, if applicable (eg LZW).</documentation>
            </annotation>
          </element>
          <element minOccurs="0" name="encryption" type="anyURI">
            <annotation>
              <documentation>A value that identifies the file encryption algorithm used, if applicable (eg. AES).</documentation>
            </annotation>
          </element>
        </sequence>
      </sequence>
    </extension>
  </complexContent>
</complexType>
