Element diggs:Solid
Namespace http://diggsml.org/schema-dev
Annotations

A Diggs geometry object that forms the basis for 3-dimensional geometry.
The extent of a solid is defined by the boundary surfaces. exterior specifies the
outer boundary, interior the inner boundary of the solid.

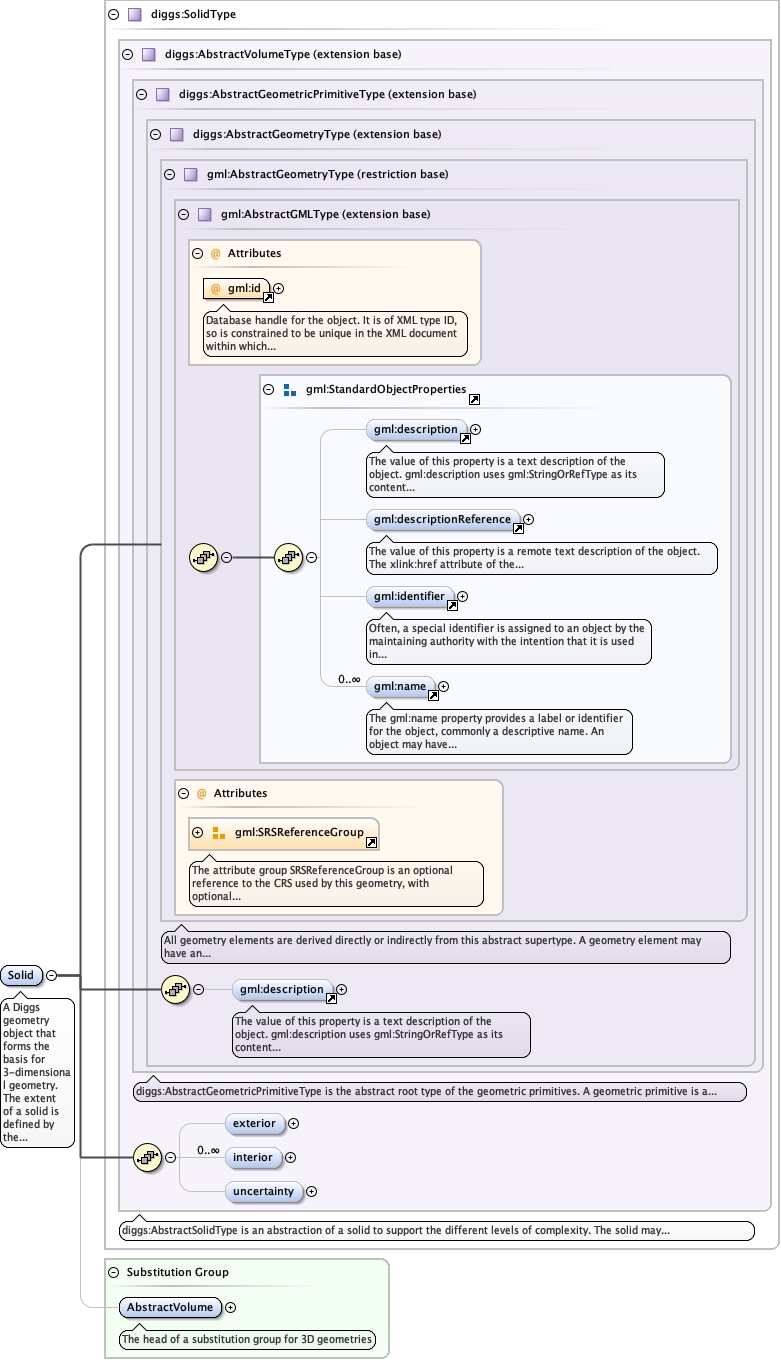

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_SRSReferenceGroup.tmp#SRSReferenceGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGeometryType.tmp#http___www.opengis.net_gml_3.2_AbstractGeometryTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptionKernel_xsd_Complex_Type_diggs_AbstractGeometryType.tmp#AbstractGeometryTypeKernel_xsd_Complex_Type_diggs_AbstractGeometricPrimitiveType.tmp#AbstractGeometricPrimitiveTypeGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_exteriorGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_interiorGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeType_uncertaintyGeophysics_xsd_Complex_Type_diggs_AbstractVolumeType.tmp#AbstractVolumeTypeGeophysics_xsd_Complex_Type_diggs_SolidType.tmp#http___diggsml.org_schema-dev_SolidTypeGeophysics_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolume
Type diggs:SolidType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
gml:description{0,1} , diggs:exterior{0,1} , diggs:interior* , diggs:uncertainty{0,1}
Children diggs:exterior, diggs:interior, diggs:uncertainty, gml:description
Instance

<diggs:Solid axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <diggs:exterior>{0,1}</diggs:exterior>
  <diggs:interior>{0,unbounded}</diggs:interior>
  <diggs:uncertainty>{0,1}</diggs:uncertainty>
</diggs:Solid>
Attributes
QName Type Use Annotation
axisLabels gml:NCNameList optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
srsDimension positiveInteger optional
srsName anyURI optional
uomLabels gml:NCNameList optional
Source

<element name="Solid" substitutionGroup="diggs:AbstractVolume" type="diggs:SolidType">
  <annotation>
    <documentation>A Diggs geometry object that forms the basis for 3-dimensional geometry. The extent of a solid is defined by the boundary surfaces. exterior specifies the outer boundary, interior the inner boundary of the solid.</documentation>
  </annotation>
</element>
