Element diggs:TestingProgram
Namespace http://diggsml.org/schemas/3
Annotations

A program of testing: the schedules submitted for testing, the planned tests, and
the measurement and specimen preparation specifications they follow.

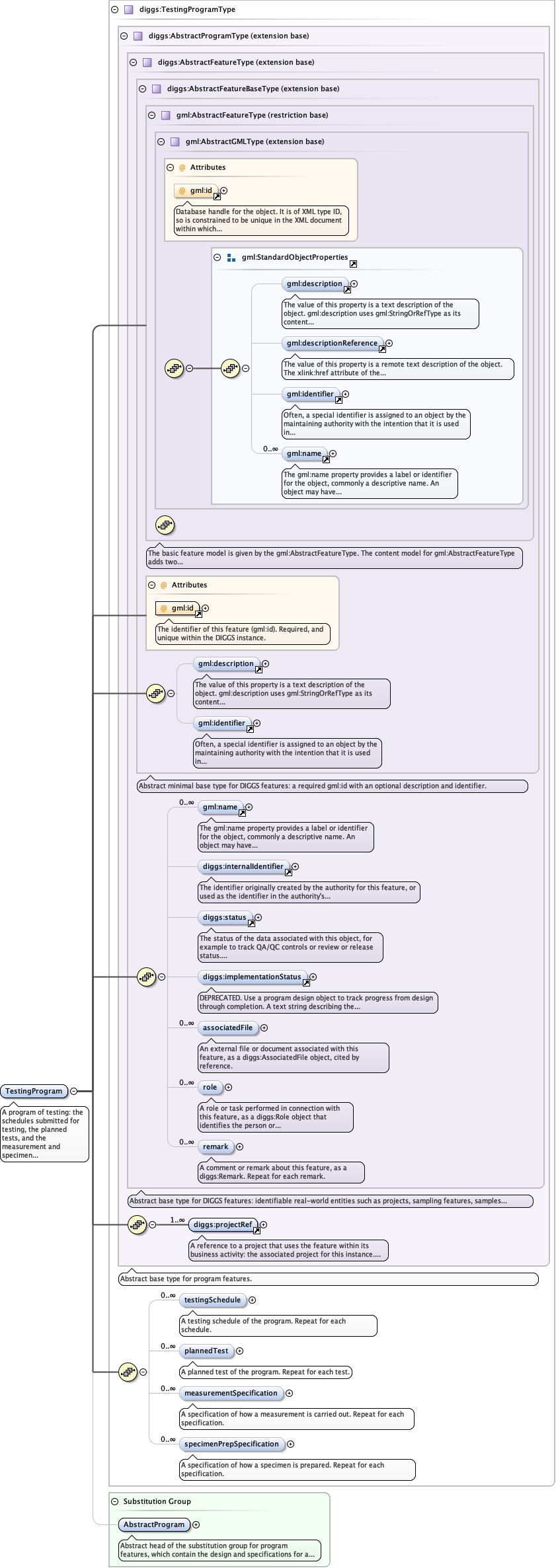

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_projectRef.tmp#projectRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramType.tmp#AbstractProgramTypeCore_xsd_Complex_Type_diggs_TestingProgramType.tmp#TestingProgramType_testingScheduleCore_xsd_Complex_Type_diggs_TestingProgramType.tmp#TestingProgramType_plannedTestCore_xsd_Complex_Type_diggs_TestingProgramType.tmp#TestingProgramType_measurementSpecificationCore_xsd_Complex_Type_diggs_TestingProgramType.tmp#TestingProgramType_specimenPrepSpecificationCore_xsd_Complex_Type_diggs_TestingProgramType.tmp#TestingProgramTypeAbstractTypes_xsd_Element_diggs_AbstractProgram.tmp#AbstractProgram
Type diggs:TestingProgramType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:measurementSpecification, diggs:plannedTest, diggs:projectRef, diggs:remark, diggs:role, diggs:specimenPrepSpecification, diggs:status, diggs:testingSchedule, gml:description, gml:identifier, gml:name
Instance

<diggs:TestingProgram gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:projectRef>
  <diggs:testingSchedule>{0,unbounded}</diggs:testingSchedule>
  <diggs:plannedTest>{0,unbounded}</diggs:plannedTest>
  <diggs:measurementSpecification>{0,unbounded}</diggs:measurementSpecification>
  <diggs:specimenPrepSpecification>{0,unbounded}</diggs:specimenPrepSpecification>
</diggs:TestingProgram>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="TestingProgram" substitutionGroup="diggs:AbstractProgram" type="diggs:TestingProgramType">
  <annotation>
    <documentation>A program of testing: the schedules submitted for testing, the planned tests, and the measurement and specimen preparation specifications they follow.</documentation>
  </annotation>
</element>
