Element diggs:SamplingFeatureGroup
Namespace http://diggsml.org/schemas/3
Annotations

DEPRECATED. Use a concrete group substituting diggs:AbstractSamplingFeatureGroup,
whose members cite the group through samplingFeatureGroupRef. A feature that
references associated sampling features within a group.

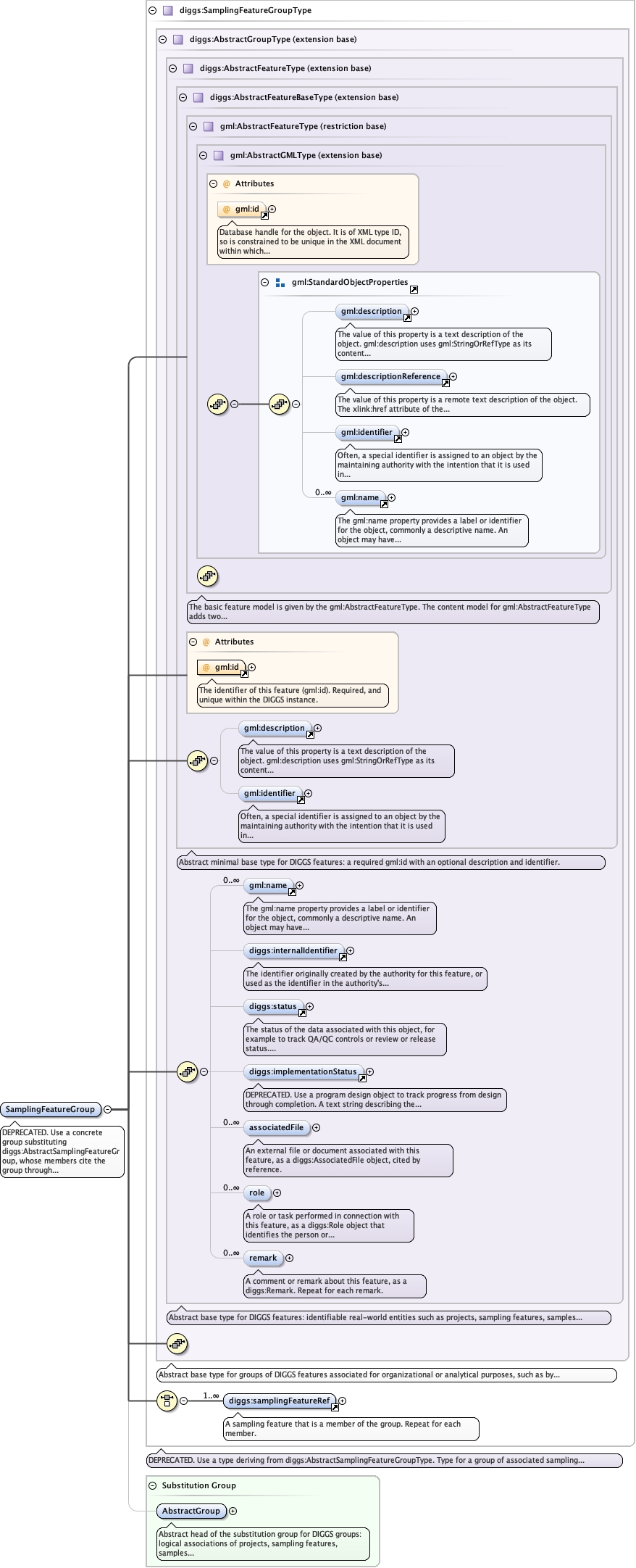

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractGroupType.tmp#AbstractGroupTypeCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCore_xsd_Complex_Type_diggs_SamplingFeatureGroupType.tmp#SamplingFeatureGroupTypeAbstractTypes_xsd_Element_diggs_AbstractGroup.tmp#AbstractGroup
Type diggs:SamplingFeatureGroupType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:SamplingFeatureGroup gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:samplingFeatureRef xlink:href="" identifierRef="" nilReason="" owns="false">{1,unbounded}</diggs:samplingFeatureRef>
</diggs:SamplingFeatureGroup>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="SamplingFeatureGroup" substitutionGroup="diggs:AbstractGroup" type="diggs:SamplingFeatureGroupType">
  <annotation>
    <appinfo>
      <diggs:deprecated since="3.1.0" note="a concrete group substituting diggs:AbstractSamplingFeatureGroup, whose members cite it through diggs:samplingFeatureGroupRef"/>
    </appinfo>
    <documentation>DEPRECATED. Use a concrete group substituting diggs:AbstractSamplingFeatureGroup, whose members cite the group through samplingFeatureGroupRef. A feature that references associated sampling features within a group.</documentation>
  </annotation>
</element>
