Element diggs:DrillPipe
Namespace http://diggsml.org/schemas/3
Annotations

A drill pipe, or a run of identical pipe sections, used in drilling.

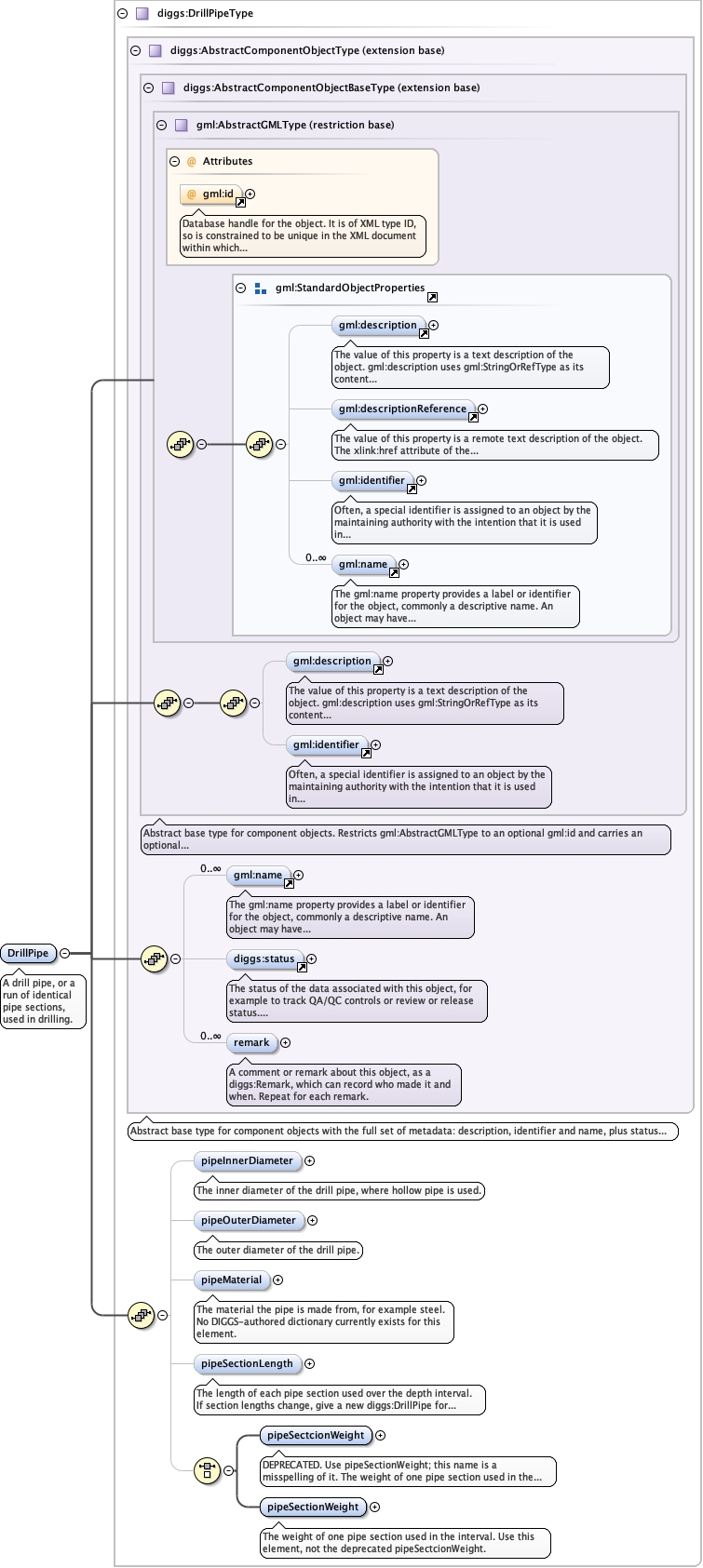

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeInnerDiameterCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeOuterDiameterCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeMaterialCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeSectionLengthCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeSectcionWeightCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType_pipeSectionWeightCore_xsd_Complex_Type_diggs_DrillPipeType.tmp#DrillPipeType
Type diggs:DrillPipeType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:pipeInnerDiameter, diggs:pipeMaterial, diggs:pipeOuterDiameter, diggs:pipeSectcionWeight, diggs:pipeSectionLength, diggs:pipeSectionWeight, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:DrillPipe gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:pipeInnerDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:pipeInnerDiameter>
  <diggs:pipeOuterDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:pipeOuterDiameter>
  <diggs:pipeMaterial codeSpace="">{0,1}</diggs:pipeMaterial>
  <diggs:pipeSectionLength howDetermined="" qualifier="" uom="">{0,1}</diggs:pipeSectionLength>
  <diggs:pipeSectcionWeight howDetermined="" qualifier="" uom="">{1,1}</diggs:pipeSectcionWeight>
  <diggs:pipeSectionWeight howDetermined="" qualifier="" uom="">{1,1}</diggs:pipeSectionWeight>
</diggs:DrillPipe>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DrillPipe" type="diggs:DrillPipeType">
  <annotation>
    <documentation>A drill pipe, or a run of identical pipe sections, used in drilling.</documentation>
  </annotation>
</element>
