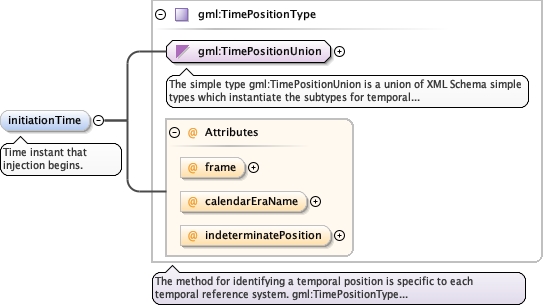

Element diggs:InjectionTimeSeriesType / diggs:initiationTime
Namespace http://diggsml.org/schema-dev
Annotations

Time instant that injection begins.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="initiationTime" type="gml:TimePositionType">
  <annotation>
    <documentation>Time instant that injection begins.</documentation>
  </annotation>
</element>

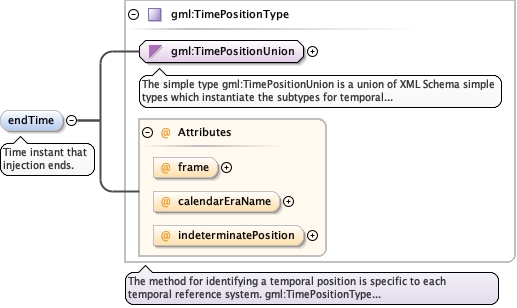

Element diggs:InjectionTimeSeriesType / diggs:endTime
Namespace http://diggsml.org/schema-dev
Annotations

Time instant that injection ends.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element minOccurs="0" name="endTime" type="gml:TimePositionType">
  <annotation>
    <documentation>Time instant that injection ends.</documentation>
  </annotation>
</element>

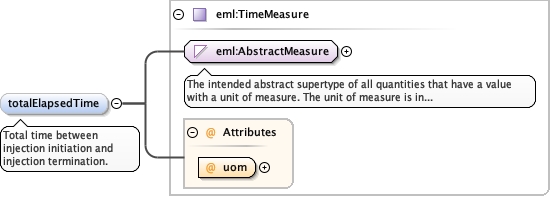

Element diggs:InjectionTimeSeriesType / diggs:totalElapsedTime
Namespace http://diggsml.org/schema-dev
Annotations

Total time between injection initiation and injection
termination.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="totalElapsedTime" type="eml:TimeMeasure">
  <annotation>
    <documentation>Total time between injection initiation and injection termination.</documentation>
  </annotation>
</element>
Element diggs:InjectionTimeSeriesType / diggs:numberPumpStrokes
Namespace http://diggsml.org/schema-dev
Annotations

The total number of pump strokes for the
injection.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="numberPumpStrokes" type="positiveInteger">
  <annotation>
    <documentation>The total number of pump strokes for the injection.</documentation>
  </annotation>
</element>

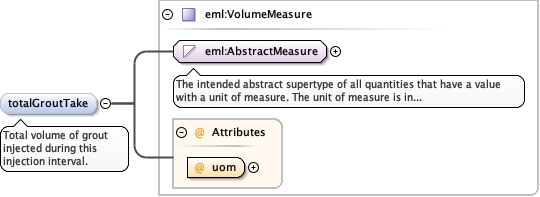

Element diggs:InjectionTimeSeriesType / diggs:totalGroutTake
Namespace http://diggsml.org/schema-dev
Annotations

Total volume of grout injected during this injection
interval.
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumeMeasure.tmp#VolumeMeasure
Type eml:VolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumeUom required
Source

<element minOccurs="0" name="totalGroutTake" type="eml:VolumeMeasure">
  <annotation>
    <documentation>Total volume of grout injected during this injection interval.</documentation>
  </annotation>
</element>

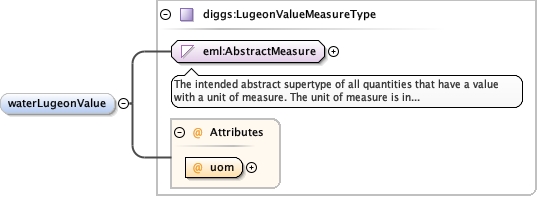

Element diggs:InjectionTimeSeriesType / diggs:waterLugeonValue
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_LugeonValueMeasureType.tmp#LugeonValueMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LugeonValueMeasureType.tmp#LugeonValueMeasureType
Type diggs:LugeonValueMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom diggs:fixedLugeonValueUOM required
Source

<element minOccurs="0" name="waterLugeonValue" type="diggs:LugeonValueMeasureType">
</element>

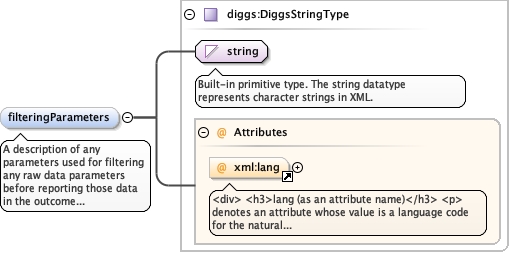

Element diggs:InjectionTimeSeriesType / diggs:filteringParameters
Namespace http://diggsml.org/schema-dev
Annotations

A description of any parameters used for filtering any
raw data parameters before reporting those data in the outcome
property.
Diagram
Diagramxml_xsd_Attribute_xml_lang.tmp#langKernel_xsd_Complex_Type_diggs_DiggsStringType.tmp#DiggsStringType
Type diggs:DiggsStringType
Properties
content complex
minOccurs 0
mixed true
Attributes
QName Type Use Annotation
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<element minOccurs="0" name="filteringParameters" type="diggs:DiggsStringType">
  <annotation>
    <documentation>A description of any parameters used for filtering any raw data parameters before reporting those data in the outcome property.</documentation>
  </annotation>
</element>

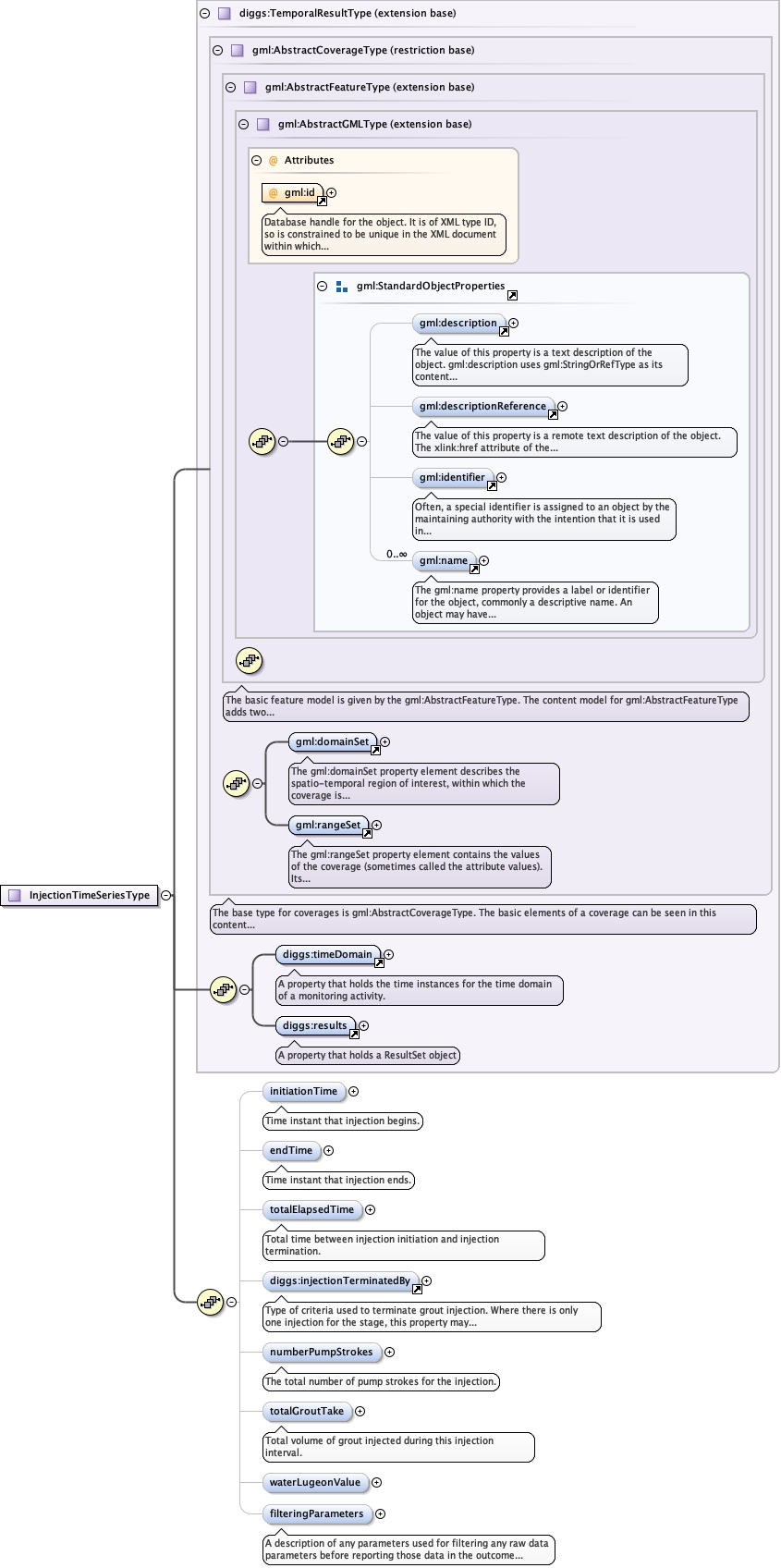

Complex Type diggs:InjectionTimeSeriesType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_domainSet.tmp#domainSetgml3_2Profile_diggs_xsd_Element_gml_rangeSet.tmp#rangeSetgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCoverageType.tmp#AbstractCoverageTypeKernel_xsd_Element_diggs_timeDomain.tmp#timeDomainKernel_xsd_Element_diggs_results.tmp#resultsKernel_xsd_Complex_Type_diggs_TemporalResultType.tmp#TemporalResultTypeConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_initiationTimeConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_endTimeConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_totalElapsedTimeConstruction_xsd_Element_diggs_injectionTerminatedBy.tmp#injectionTerminatedByConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_numberPumpStrokesConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_totalGroutTakeConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_waterLugeonValueConstruction_xsd_Complex_Type_diggs_InjectionTimeSeriesType.tmp#InjectionTimeSeriesType_filteringParameters
Type extension of diggs:TemporalResultType
Type hierarchy
Used by
Model
Children diggs:endTime, diggs:filteringParameters, diggs:initiationTime, diggs:injectionTerminatedBy, diggs:numberPumpStrokes, diggs:results, diggs:timeDomain, diggs:totalElapsedTime, diggs:totalGroutTake, diggs:waterLugeonValue
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="InjectionTimeSeriesType">
  <complexContent>
    <extension base="diggs:TemporalResultType">
      <sequence>
        <element minOccurs="0" name="initiationTime" type="gml:TimePositionType">
          <annotation>
            <documentation>Time instant that injection begins.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="endTime" type="gml:TimePositionType">
          <annotation>
            <documentation>Time instant that injection ends.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalElapsedTime" type="eml:TimeMeasure">
          <annotation>
            <documentation>Total time between injection initiation and injection termination.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:injectionTerminatedBy">
          <annotation>
            <documentation>Type of criteria used to terminate grout injection. Where there is only one injection for the stage, this property may be left unpopulated and the injectionTerminatedBy property of the stage is used instead.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="numberPumpStrokes" type="positiveInteger">
          <annotation>
            <documentation>The total number of pump strokes for the injection.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalGroutTake" type="eml:VolumeMeasure">
          <annotation>
            <documentation>Total volume of grout injected during this injection interval.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="waterLugeonValue" type="diggs:LugeonValueMeasureType">
        </element>
        <element minOccurs="0" name="filteringParameters" type="diggs:DiggsStringType">
          <annotation>
            <documentation>A description of any parameters used for filtering any raw data parameters before reporting those data in the outcome property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
