Complex Type diggs:GroutingDataPropertyParametersType
Namespace http://diggsml.org/schema-dev

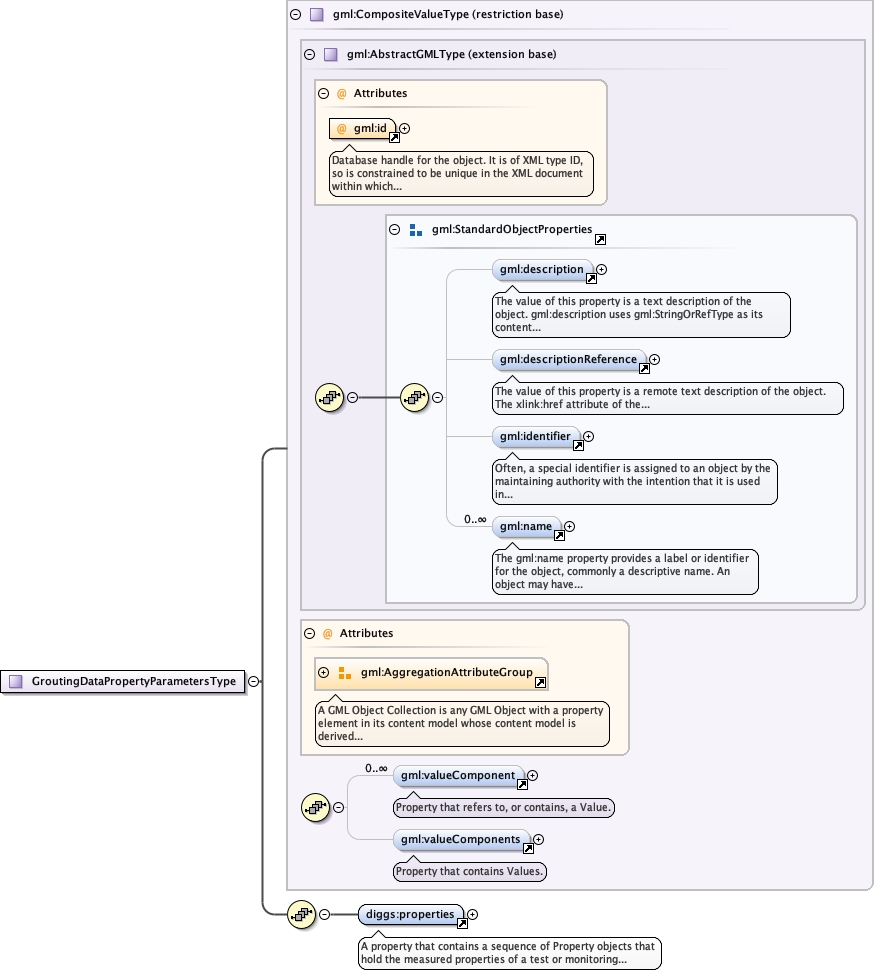

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_valueComponent.tmp#valueComponentgml3_2Profile_diggs_xsd_Element_gml_valueComponents.tmp#valueComponentsgml3_2Profile_diggs_xsd_Complex_Type_gml_CompositeValueType.tmp#CompositeValueTypeKernel_xsd_Element_diggs_properties.tmp#properties
Type restriction of gml:CompositeValueType
Type hierarchy
Used by
Model
Children diggs:properties
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutingDataPropertyParametersType">
  <complexContent>
    <restriction base="gml:CompositeValueType">
      <sequence>
        <element maxOccurs="1" minOccurs="1" ref="diggs:properties"/>
      </sequence>
    </restriction>
  </complexContent>
</complexType>
