Element diggs:DesignVerification
Namespace http://diggsml.org/schemas/3
Annotations

A design check with an outcome, such as buckling, shear, global or slope stability,
lateral spreading, seismic or liquefaction, punching or structural axial,
distinguished from a design input or output because its meaning is a verdict against
a demand and a capacity, not a value. Repeatable, since one design commonly needs
more than one check, or the same check run under different conditions (static and
seismic, short-term and long-term); distinguish repetitions by gml:name or remark.
Distinct from diggs:AbstractAcceptanceCriterionType: a criterion states a limit a
design must satisfy, declared on the specification side and checked against a
realized feature after construction, whereas a design verification states the
outcome of a pre-construction analysis run against that limit, declared on the
design side.

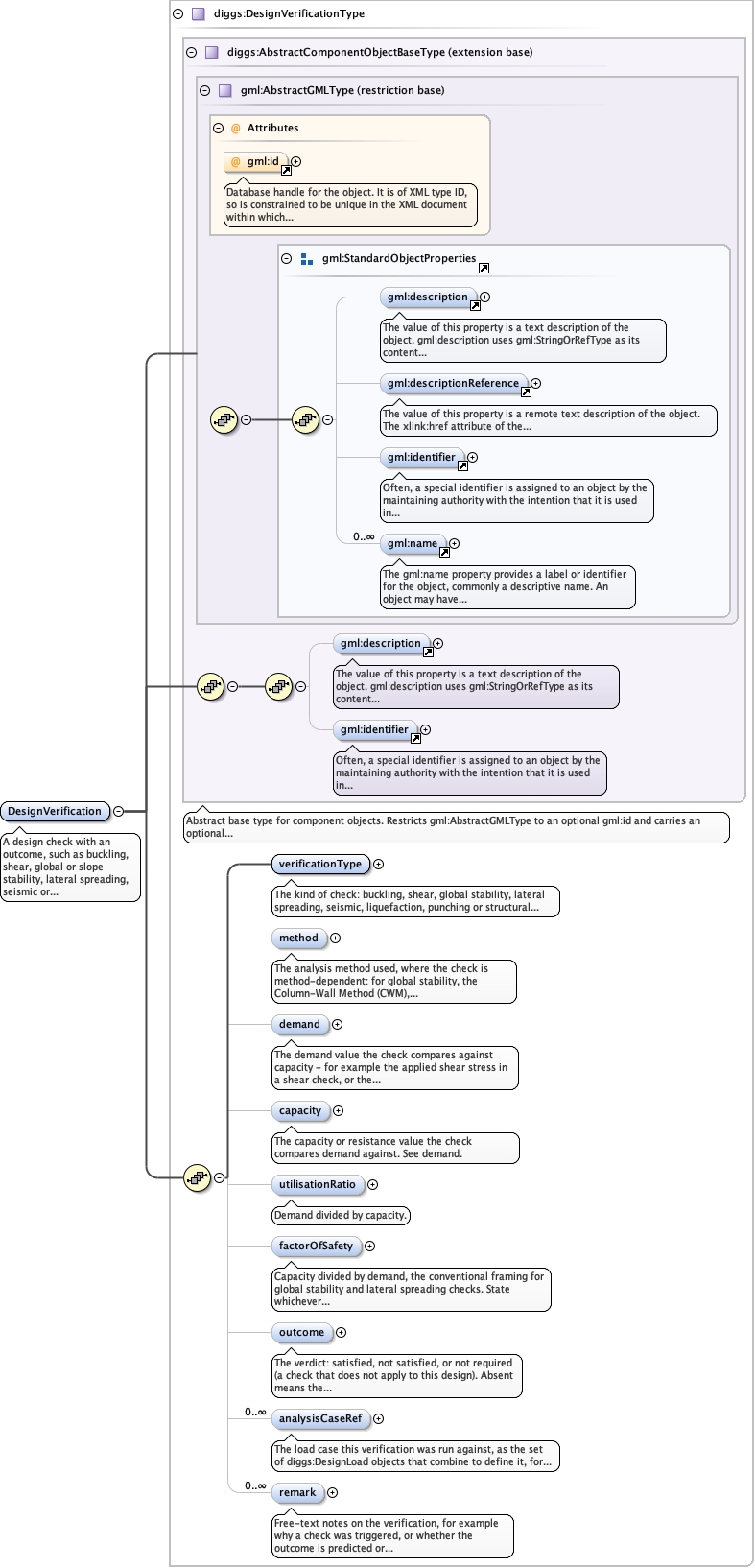

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_verificationTypeCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_methodCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_demandCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_capacityCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_utilisationRatioCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_factorOfSafetyCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_outcomeCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_analysisCaseRefCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType_remarkCommon_xsd_Complex_Type_diggs_DesignVerificationType.tmp#DesignVerificationType
Type diggs:DesignVerificationType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:analysisCaseRef, diggs:capacity, diggs:demand, diggs:factorOfSafety, diggs:method, diggs:outcome, diggs:remark, diggs:utilisationRatio, diggs:verificationType, gml:description, gml:identifier
Instance

<diggs:DesignVerification gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:verificationType codeSpace="">{1,1}</diggs:verificationType>
  <diggs:method codeSpace="">{0,1}</diggs:method>
  <diggs:demand>{0,1}</diggs:demand>
  <diggs:capacity>{0,1}</diggs:capacity>
  <diggs:utilisationRatio howDetermined="" qualifier="" uom="">{0,1}</diggs:utilisationRatio>
  <diggs:factorOfSafety howDetermined="" qualifier="" uom="">{0,1}</diggs:factorOfSafety>
  <diggs:outcome codeSpace="">{0,1}</diggs:outcome>
  <diggs:analysisCaseRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,unbounded}</diggs:analysisCaseRef>
  <diggs:remark>{0,unbounded}</diggs:remark>
</diggs:DesignVerification>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DesignVerification" type="diggs:DesignVerificationType">
  <annotation>
    <documentation>A design check with an outcome, such as buckling, shear, global or slope stability, lateral spreading, seismic or liquefaction, punching or structural axial, distinguished from a design input or output because its meaning is a verdict against a demand and a capacity, not a value. Repeatable, since one design commonly needs more than one check, or the same check run under different conditions (static and seismic, short-term and long-term); distinguish repetitions by gml:name or remark. Distinct from diggs:AbstractAcceptanceCriterionType: a criterion states a limit a design must satisfy, declared on the specification side and checked against a realized feature after construction, whereas a design verification states the outcome of a pre-construction analysis run against that limit, declared on the design side.</documentation>
  </annotation>
</element>
