Element diggs:DesignTension
Namespace http://diggsml.org/schemas/3
Annotations

One tensile force component a geosynthetic reinforcement layer must carry, together
with the load path it comes from: arching between column heads, lateral spreading,
differential settlement, or their sum. The components are separate objects, repeated
once per component, because they are different forces that one symbol would
conflate. Both fields are required: a tension value with no stated source cannot be
checked against the right design case, and a source with no magnitude carries no
information.

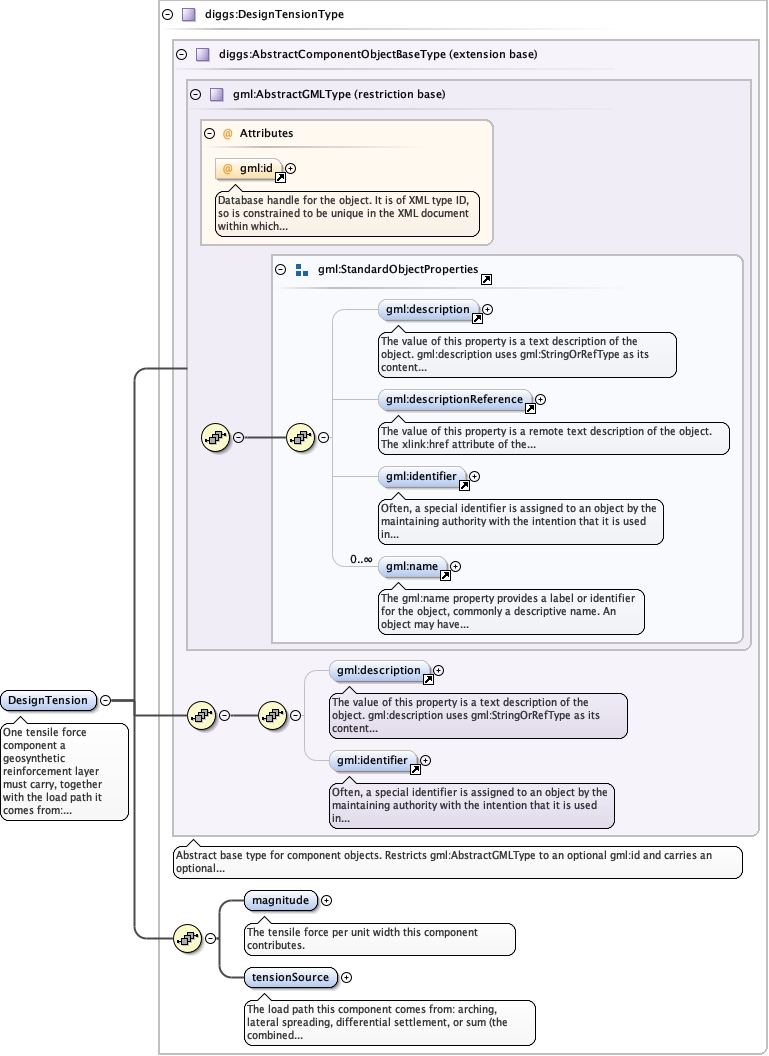

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCommon_xsd_Complex_Type_diggs_DesignTensionType.tmp#DesignTensionType_magnitudeCommon_xsd_Complex_Type_diggs_DesignTensionType.tmp#DesignTensionType_tensionSourceCommon_xsd_Complex_Type_diggs_DesignTensionType.tmp#DesignTensionType
Type diggs:DesignTensionType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:magnitude, diggs:tensionSource, gml:description, gml:identifier
Instance

<diggs:DesignTension gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:magnitude howDetermined="" qualifier="" uom="">{1,1}</diggs:magnitude>
  <diggs:tensionSource>{1,1}</diggs:tensionSource>
</diggs:DesignTension>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DesignTension" type="diggs:DesignTensionType">
  <annotation>
    <documentation>One tensile force component a geosynthetic reinforcement layer must carry, together with the load path it comes from: arching between column heads, lateral spreading, differential settlement, or their sum. The components are separate objects, repeated once per component, because they are different forces that one symbol would conflate. Both fields are required: a tension value with no stated source cannot be checked against the right design case, and a source with no magnitude carries no information.</documentation>
  </annotation>
</element>
XML Schema documentation generated by ® XML Editor.
