Element diggs:ResultFileType / diggs:mimeType
Namespace http://diggsml.org/schemas/3
Annotations

The mime type of the file. Values come from the enumerated list, or
"Other: xx", where xx is a user-defined term whose meaning differs
from every listed value (not a synonym of one). For a mime type that
is not registered, xx is type/subtype with a subtype that begins
with "x-", for example Other: application/x-segy.

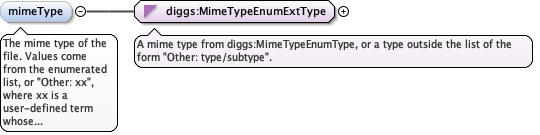

Diagram
DiagramCommon_xsd_Simple_Type_diggs_MimeTypeEnumExtType.tmp#MimeTypeEnumExtType
Type diggs:MimeTypeEnumExtType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
  <annotation>
    <documentation>The mime type of the file. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one). For a mime type that is not registered, xx is type/subtype with a subtype that begins with "x-", for example Other: application/x-segy.</documentation>
  </annotation>
</element>
Element diggs:ResultFileType / diggs:compression
Namespace http://diggsml.org/schemas/3
Annotations

A value, as a URI, that identifies the compression algorithm used,
if applicable.
Diagram
Diagram
Type anyURI
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="compression" type="anyURI">
  <annotation>
    <documentation>A value, as a URI, that identifies the compression algorithm used, if applicable.</documentation>
  </annotation>
</element>

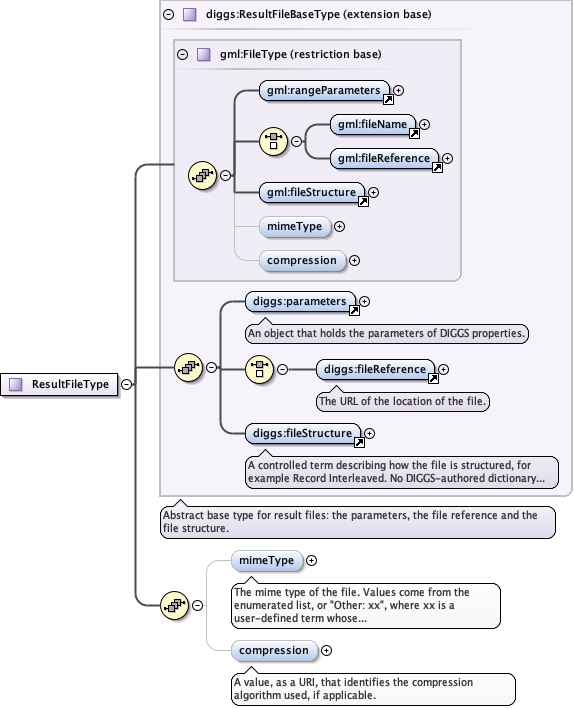

Complex Type diggs:ResultFileType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_rangeParameters.tmp#rangeParametersgml3_2Profile_diggs_xsd_Element_gml_fileName.tmp#fileNamegml3_2Profile_diggs_xsd_Element_gml_fileReference.tmp#fileReferencegml3_2Profile_diggs_xsd_Element_gml_fileStructure.tmp#http___www.opengis.net_gml_3.2_fileStructuregml3_2Profile_diggs_xsd_Complex_Type_gml_FileType.tmp#FileType_mimeTypegml3_2Profile_diggs_xsd_Complex_Type_gml_FileType.tmp#FileType_compressiongml3_2Profile_diggs_xsd_Complex_Type_gml_FileType.tmp#FileTypeCommon_xsd_Element_diggs_parameters.tmp#parametersCommon_xsd_Element_diggs_fileReference.tmp#http___diggsml.org_schemas_3_fileReferenceCommon_xsd_Element_diggs_fileStructure.tmp#fileStructureCommon_xsd_Complex_Type_diggs_ResultFileBaseType.tmp#ResultFileBaseTypeCommon_xsd_Complex_Type_diggs_ResultFileType.tmp#ResultFileType_mimeTypeCommon_xsd_Complex_Type_diggs_ResultFileType.tmp#ResultFileType_compression
Type extension of diggs:ResultFileBaseType
Type hierarchy
Used by
Model
Children diggs:compression, diggs:fileReference, diggs:fileStructure, diggs:mimeType, diggs:parameters
Source

<complexType name="ResultFileType">
  <complexContent>
    <extension base="diggs:ResultFileBaseType">
      <sequence>
        <element minOccurs="0" name="mimeType" type="diggs:MimeTypeEnumExtType">
          <annotation>
            <documentation>The mime type of the file. Values come from the enumerated list, or "Other: xx", where xx is a user-defined term whose meaning differs from every listed value (not a synonym of one). For a mime type that is not registered, xx is type/subtype with a subtype that begins with "x-", for example Other: application/x-segy.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="compression" type="anyURI">
          <annotation>
            <documentation>A value, as a URI, that identifies the compression algorithm used, if applicable.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
