Schema documentation for component diggs:axisRef

Reference to the axis being defined. Should reference an axis defined in the CartesianCS of the parent LocalCartesianCRS. Typically references the gml:id of a gml:CoordinateSystemAxis element (e.g., "X", "Y", "Z", "easting", "northing", "elevation", "station", "offset").

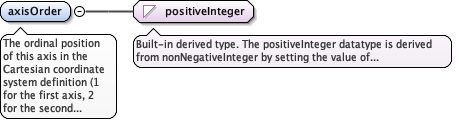

The ordinal position of this axis in the Cartesian coordinate system definition (1 for the first axis, 2 for the second axis, etc.). This ensures correct matching between axes in the CS definition and their spatial extents, particularly important when the axis order is not alphabetical.

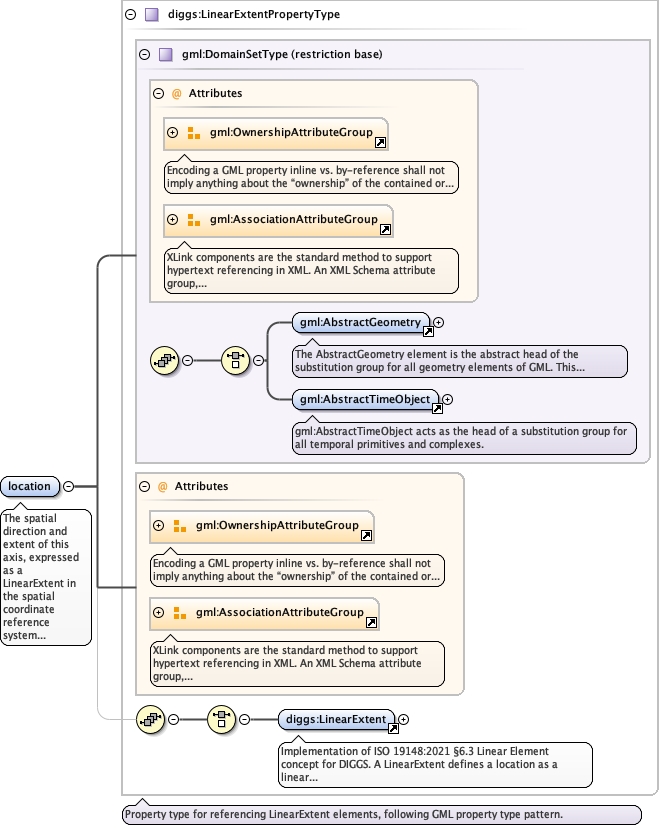

The spatial direction and extent of this axis, expressed as a LinearExtent in the spatial coordinate reference system of the . The start point of the LinearExtent typically corresponds to the origin location of the parent CRS, and the end point indicates the direction and length of the axis in spatial coordinates. The vector from start to end defines the positive direction of the axis. If omitted, the property directionVector must be used.

<diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3"> <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent> </diggs:location>

QName

Type

Fixed

Default

Use

Annotation

nilReason

gml:NilReasonType

optional

owns

boolean

false

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

Optional normalized direction vector (unit vector) for this axis in spatial coordinates. This provides an alternative or supplementary method to specify axis direction beyond the LinearExtent. When both are provided, they should be consistent with each other. The vector components correspond to the spatial CRS axes (typically X, Y, Z or Easting, Northing, Elevation). If omitted, location must be used.

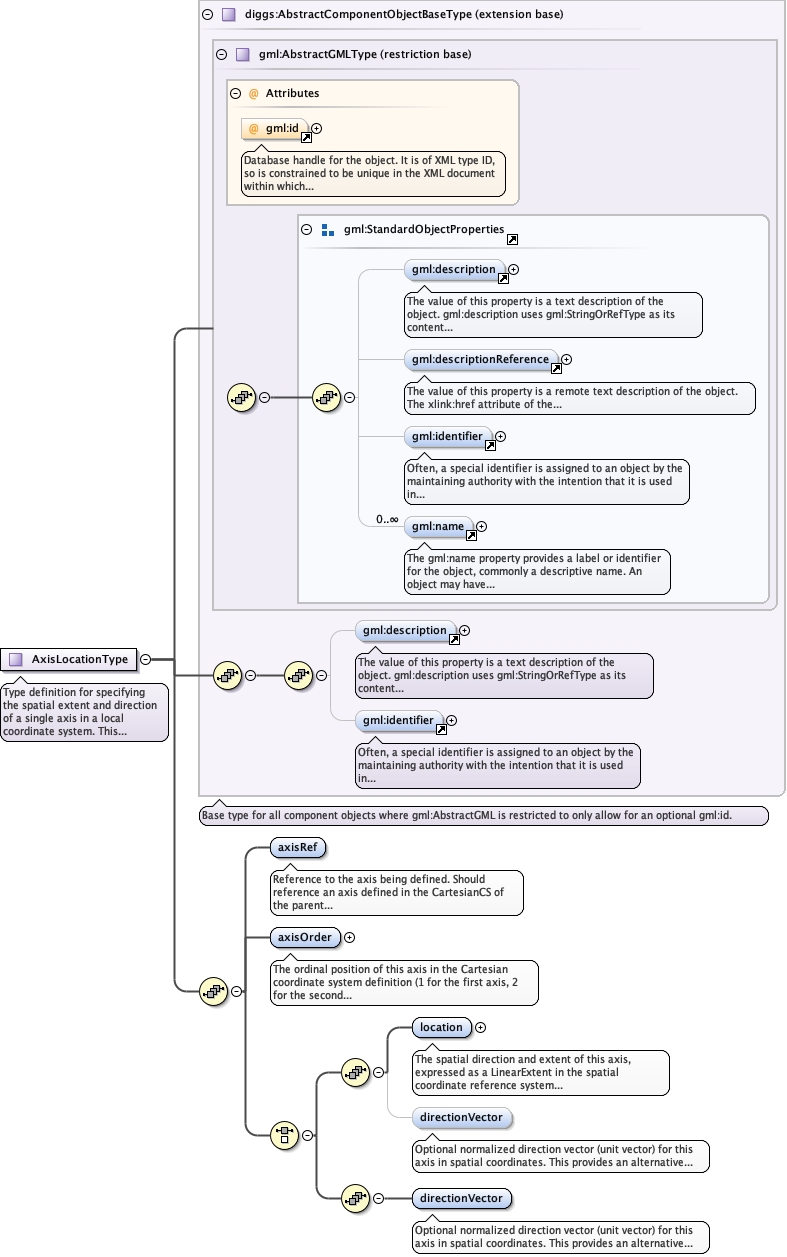

Type definition for specifying the spatial extent and direction of a single axis in a local coordinate system. This information enables the axis to be spatially positioned and oriented in a spatial coordinate reference system, supporting coordinate transformation calculations.
