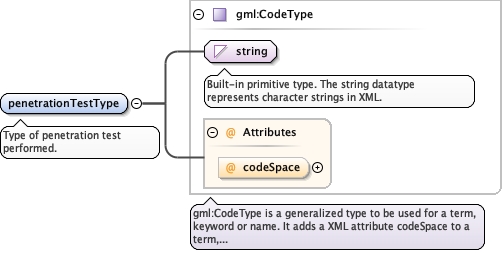

Element diggs:DynamicProbeTestType / diggs:penetrationTestType
Namespace http://diggsml.org/schemas/3
Annotations

Type of penetration test performed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

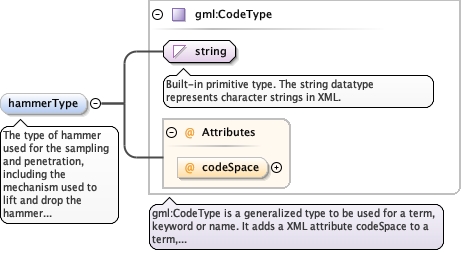

Element diggs:DynamicProbeTestType / diggs:hammerType
Namespace http://diggsml.org/schemas/3
Annotations

The type of hammer used for the sampling and penetration,
including the mechanism used to lift and drop the hammer assembly.
Additional details about the sampler (e.g. cathead diameter, number
of turns, etc) can be mapped to the equipment
object.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

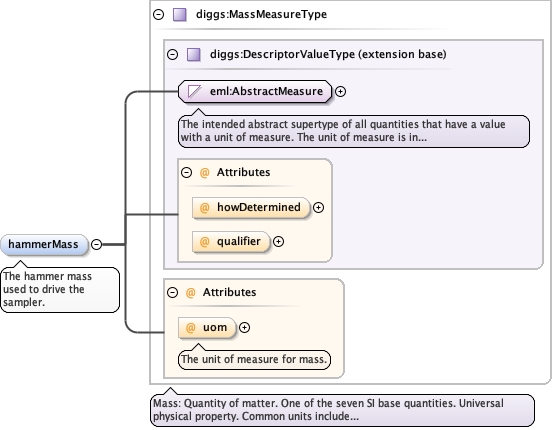

Element diggs:DynamicProbeTestType / diggs:hammerMass
Namespace http://diggsml.org/schemas/3
Annotations

The hammer mass used to drive the
sampler.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MassMeasureType.tmp#MassMeasureType
Type diggs:MassMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MassUomEnumType optional
The unit of measure for mass.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

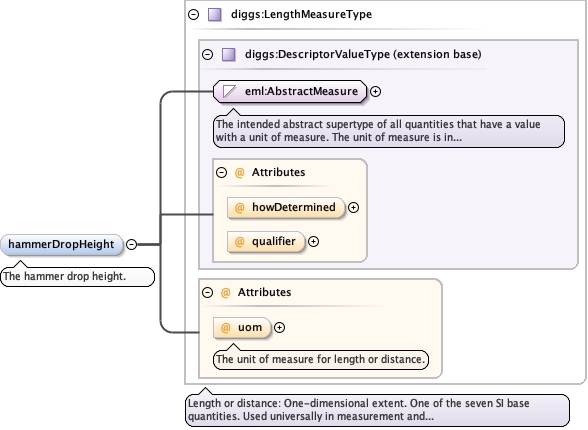

Element diggs:DynamicProbeTestType / diggs:hammerDropHeight
Namespace http://diggsml.org/schemas/3
Annotations

The hammer drop height.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

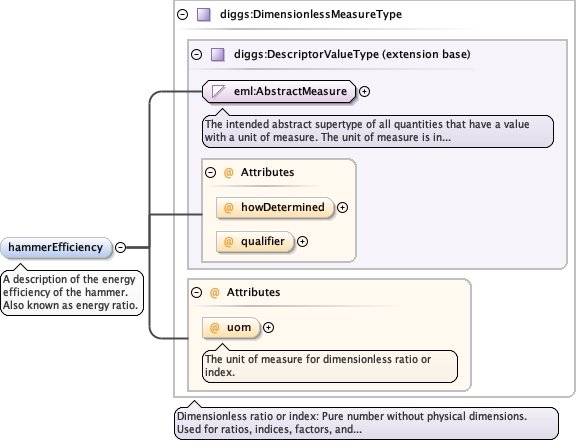

Element diggs:DynamicProbeTestType / diggs:hammerEfficiency
Namespace http://diggsml.org/schemas/3
Annotations

A description of the energy efficiency of the hammer.
Also known as energy ratio.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DimensionlessMeasureType.tmp#DimensionlessMeasureType
Type diggs:DimensionlessMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DimensionlessUomEnumType optional
The unit of measure for dimensionless ratio or index.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

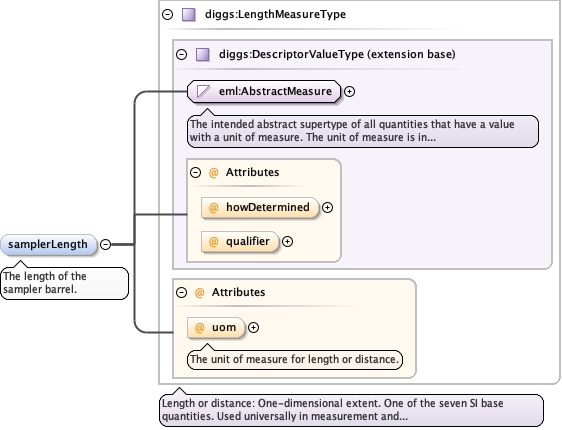

Element diggs:DynamicProbeTestType / diggs:samplerLength
Namespace http://diggsml.org/schemas/3
Annotations

The length of the sampler barrel.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

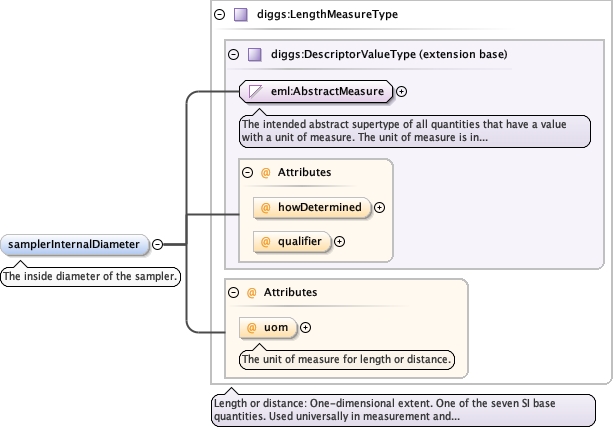

Element diggs:DynamicProbeTestType / diggs:samplerInternalDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The inside diameter of the sampler.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:DynamicProbeTestType / diggs:samplerLinerDescription
Namespace http://diggsml.org/schemas/3
Annotations

A description of the liner, if used.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:DynamicProbeTestType / diggs:samplerRetainerDescription
Namespace http://diggsml.org/schemas/3
Annotations

A description of the basket retainer, if
used.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

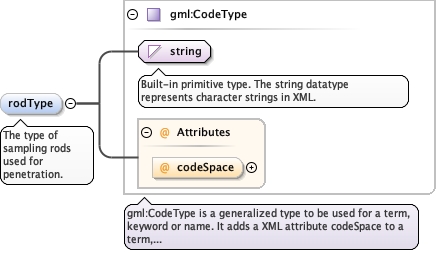

Element diggs:DynamicProbeTestType / diggs:rodType
Namespace http://diggsml.org/schemas/3
Annotations

The type of sampling rods used for
penetration.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

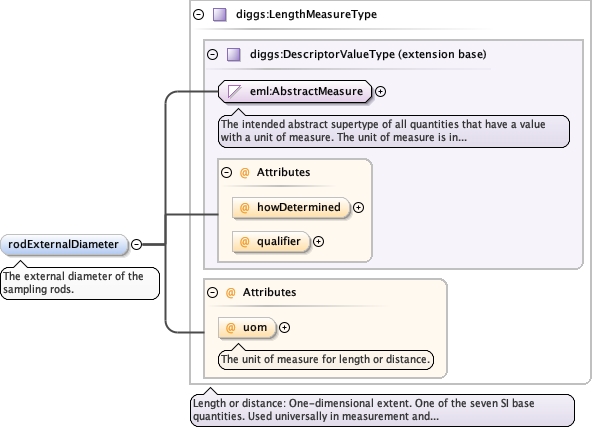

Element diggs:DynamicProbeTestType / diggs:rodExternalDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The external diameter of the sampling
rods.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

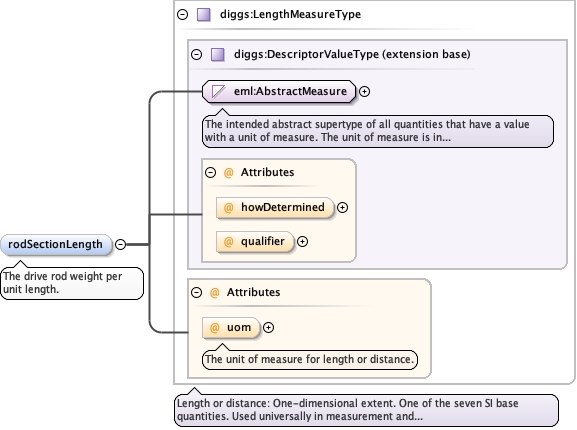

Element diggs:DynamicProbeTestType / diggs:rodSectionLength
Namespace http://diggsml.org/schemas/3
Annotations

The drive rod weight per unit length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

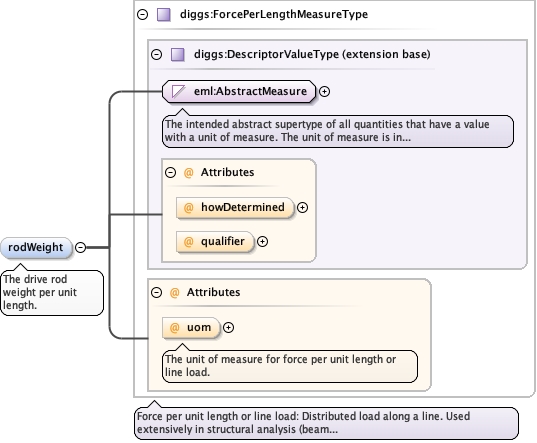

Element diggs:DynamicProbeTestType / diggs:rodWeight
Namespace http://diggsml.org/schemas/3
Annotations

The drive rod weight per unit length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType
Type diggs:ForcePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerLengthUomEnumType optional
The unit of measure for force per unit length or line load.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

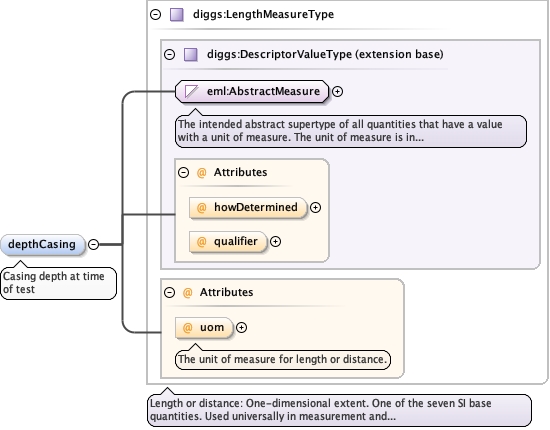

Element diggs:DynamicProbeTestType / diggs:depthCasing
Namespace http://diggsml.org/schemas/3
Annotations

Casing depth at time of test
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

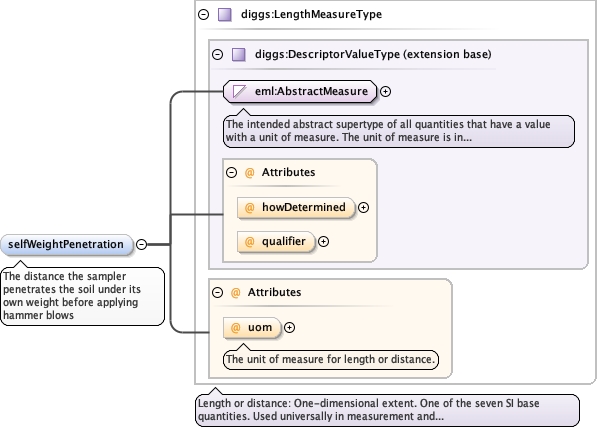

Element diggs:DynamicProbeTestType / diggs:selfWeightPenetration
Namespace http://diggsml.org/schemas/3
Annotations

The distance the sampler penetrates the soil under its
own weight before applying hammer blows
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
Element diggs:DynamicProbeTestType / diggs:waterDepth
Namespace http://diggsml.org/schemas/3
Annotations

Depth to water at time of test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

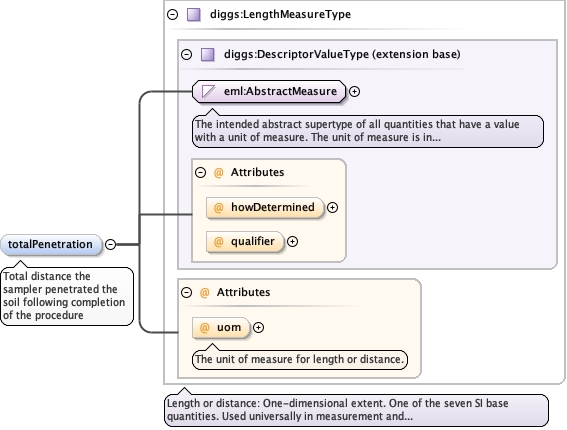

Element diggs:DynamicProbeTestType / diggs:totalPenetration
Namespace http://diggsml.org/schemas/3
Annotations

Total distance the sampler penetrated the soil following
completion of the procedure
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd

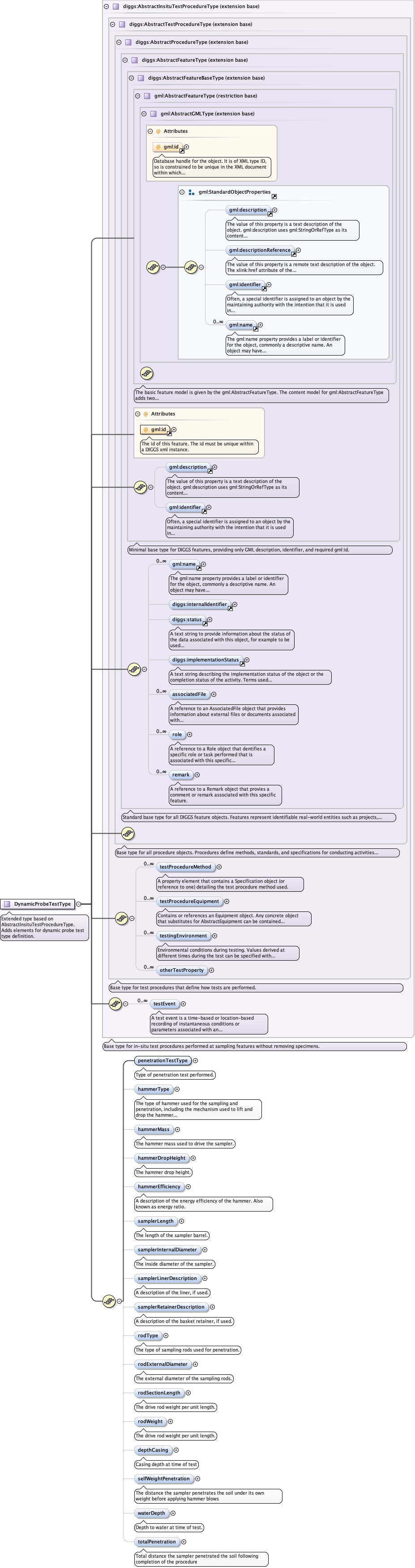

Complex Type diggs:DynamicProbeTestType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractInsituTestProcedureType. Adds elements for dynamic probe test type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_penetrationTestTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerMassExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerDropHeightExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_hammerEfficiencyExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerLengthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerInternalDiameterExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerLinerDescriptionExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_samplerRetainerDescriptionExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodTypeExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodExternalDiameterExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodSectionLengthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_rodWeightExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_depthCasingExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_selfWeightPenetrationExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_waterDepthExtProcedures_xsd_Complex_Type_diggs_DynamicProbeTestType.tmp#DynamicProbeTestType_totalPenetration
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:depthCasing, diggs:hammerDropHeight, diggs:hammerEfficiency, diggs:hammerMass, diggs:hammerType, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:penetrationTestType, diggs:remark, diggs:rodExternalDiameter, diggs:rodSectionLength, diggs:rodType, diggs:rodWeight, diggs:role, diggs:samplerInternalDiameter, diggs:samplerLength, diggs:samplerLinerDescription, diggs:samplerRetainerDescription, diggs:selfWeightPenetration, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:totalPenetration, diggs:waterDepth, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
