Element diggs:AbstractInsituTestProcedureType / diggs:testEvent
Namespace http://diggsml.org/schemas/3
Annotations

A test event is a time-based or location-based recording
of instantaneous conditions or parameters associated with an in-situ
test, such as casing depth, water level, or any custom parameters.
This property holds one or more Event objects; Event objects are
associated with the type of sampling feature that the in-situ test
is performed in. For example, for a standard penetration test
performed in a borehole, a BoreholeEvent object would be used in the
testEvents property to record the depth to water at various times
during the test.

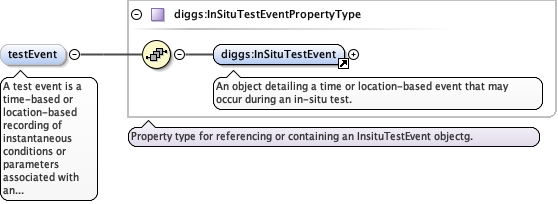

Diagram
DiagramCommon_xsd_Element_diggs_InSituTestEvent.tmp#InSituTestEventCommon_xsd_Complex_Type_diggs_InSituTestEventPropertyType.tmp#InSituTestEventPropertyType
Type diggs:InSituTestEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:InSituTestEvent
Instance

<diggs:testEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:InSituTestEvent gml:id="">{1,1}</diggs:InSituTestEvent>
</diggs:testEvent>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Complex Type diggs:AbstractInsituTestProcedureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for in-situ test procedures performed at sampling features without removing specimens.

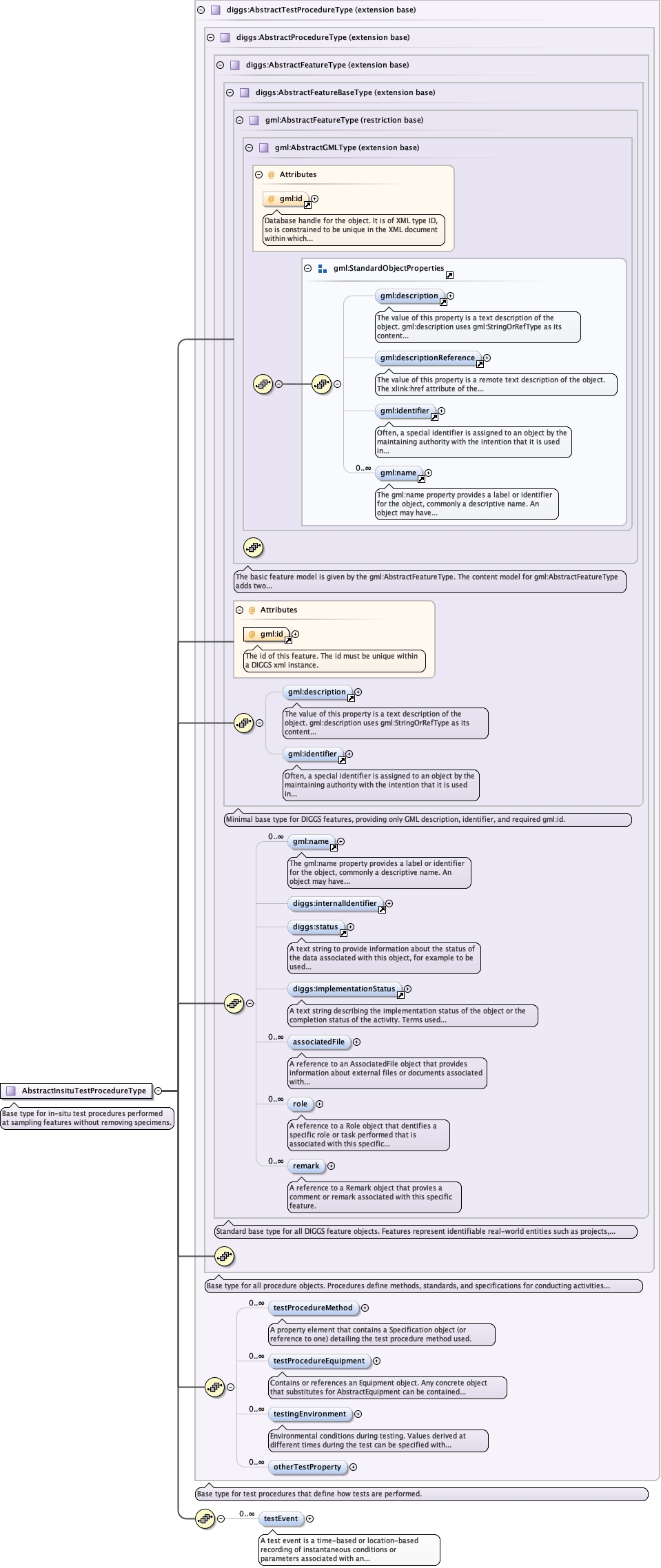

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEvent
Type extension of diggs:AbstractTestProcedureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
