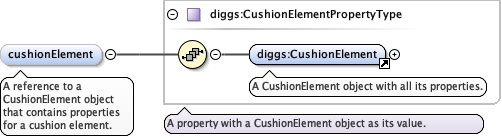

Element diggs:CushionType / diggs:cushionElement
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a CushionElement object that contains
properties for a cushion element.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_CushionElement.tmp#CushionElementDeepFoundation_xsd_Complex_Type_diggs_CushionElementPropertyType.tmp#CushionElementPropertyType
Type diggs:CushionElementPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:CushionElement
Instance

<diggs:cushionElement xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:CushionElement gml:id="">{1,1}</diggs:CushionElement>
</diggs:cushionElement>
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

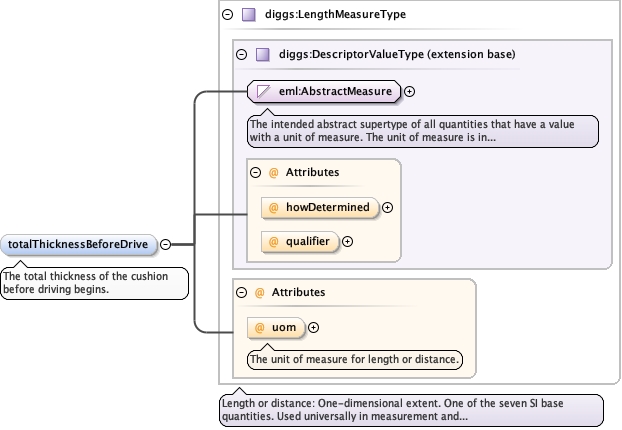

Element diggs:CushionType / diggs:totalThicknessBeforeDrive
Namespace http://diggsml.org/schemas/3
Annotations

The total thickness of the cushion before driving
begins.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

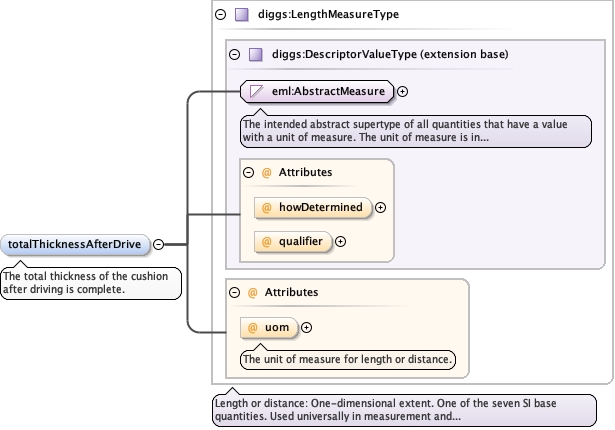

Element diggs:CushionType / diggs:totalThicknessAfterDrive
Namespace http://diggsml.org/schemas/3
Annotations

The total thickness of the cushion after driving is
complete.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

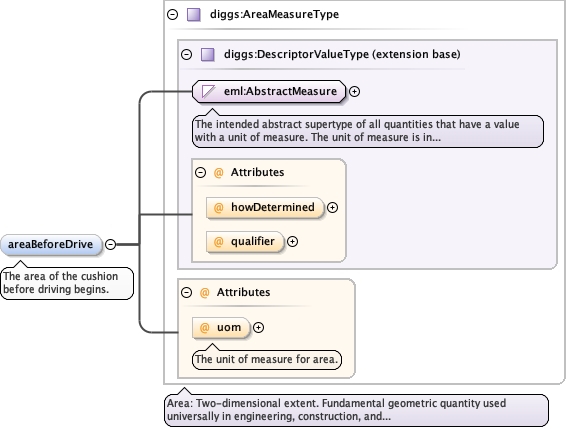

Element diggs:CushionType / diggs:areaBeforeDrive
Namespace http://diggsml.org/schemas/3
Annotations

The area of the cushion before driving
begins.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd

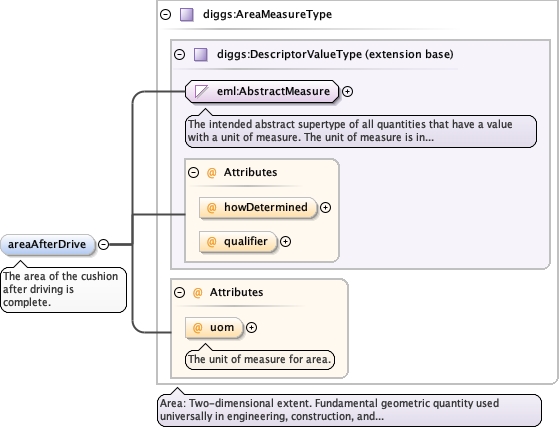

Element diggs:CushionType / diggs:areaAfterDrive
Namespace http://diggsml.org/schemas/3
Annotations

The area of the cushion after driving is
complete.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Element diggs:CushionType / diggs:coefficientOfRestitution
Namespace http://diggsml.org/schemas/3
Annotations

A value between 0 and 1 describing the energy returned
after impact, 1 is a perfectly elastic impact and 0 is a perfectly
plastic impact.
Diagram
DiagramDeepFoundation_xsd_Simple_Type_diggs_value0to1ValueType.tmp#value0to1ValueType
Type diggs:value0to1ValueType
Properties
content simple
minOccurs 0
Facets
maxInclusive 1
minInclusive 0
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
Complex Type diggs:CushionType
Namespace http://diggsml.org/schemas/3
Annotations

A compressible material placed between the hammer and the pile or the
pile and the pile cap to distribute impact force and reduce damage.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_cushionElementDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_totalThicknessBeforeDriveDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_totalThicknessAfterDriveDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_areaBeforeDriveDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_areaAfterDriveDeepFoundation_xsd_Complex_Type_diggs_CushionType.tmp#CushionType_coefficientOfRestitution
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
mixed false
Used by
Element diggs:Cushion
Model
Children diggs:areaAfterDrive, diggs:areaBeforeDrive, diggs:coefficientOfRestitution, diggs:cushionElement, diggs:remark, diggs:status, diggs:totalThicknessAfterDrive, diggs:totalThicknessBeforeDrive, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
