Element diggs:CushionElement
Namespace http://diggsml.org/schemas/3
Annotations

A CushionElement object with all its properties.

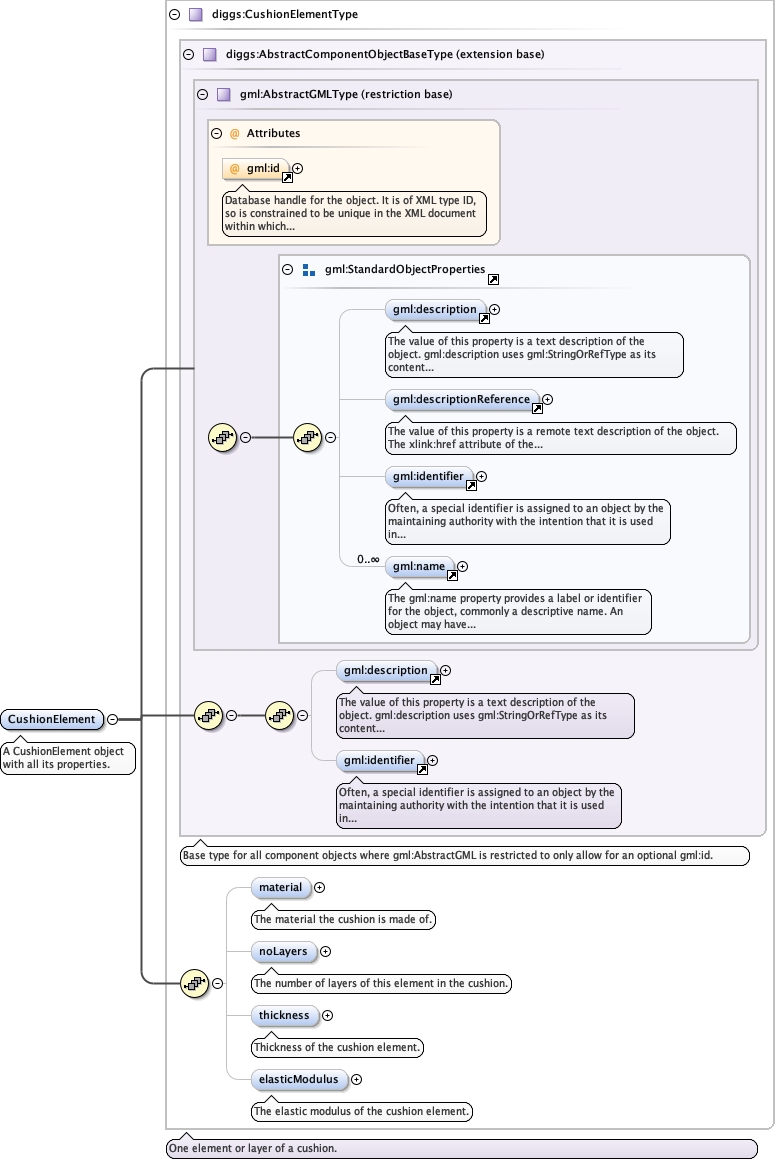

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_materialDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_noLayersDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_thicknessDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType_elasticModulusDeepFoundation_xsd_Complex_Type_diggs_CushionElementType.tmp#CushionElementType
Type diggs:CushionElementType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:elasticModulus, diggs:material, diggs:noLayers, diggs:thickness, gml:description, gml:identifier
Instance

<diggs:CushionElement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:material codeSpace="">{0,1}</diggs:material>
  <diggs:noLayers>{0,1}</diggs:noLayers>
  <diggs:thickness howDetermined="" qualifier="" uom="">{0,1}</diggs:thickness>
  <diggs:elasticModulus howDetermined="" qualifier="" uom="">{0,1}</diggs:elasticModulus>
</diggs:CushionElement>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/specialty/DeepFoundation.xsd
