Element diggs:AbstractProjectType / diggs:referencePoint
Namespace http://diggsml.org/schemas/3
Annotations

Defines the location of the project (usually a location
at the ground surface) within a well-known 3D CRS or combined CRS
(geographic or projected, and elevation), as an extension of
gml:Point object with an additional uncertainty property

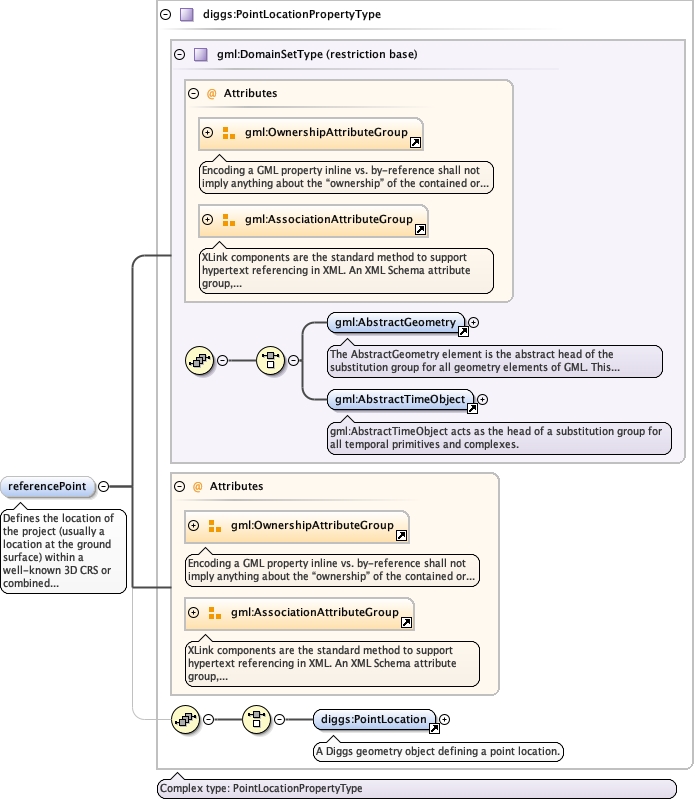

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:PointLocation
Instance

<diggs:referencePoint xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:referencePoint>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:linearExtent
Namespace http://diggsml.org/schemas/3
Annotations

Defines a project geometry that may be defined as a line
in geographic or projected space and contains a LinearExtent
geometry object.

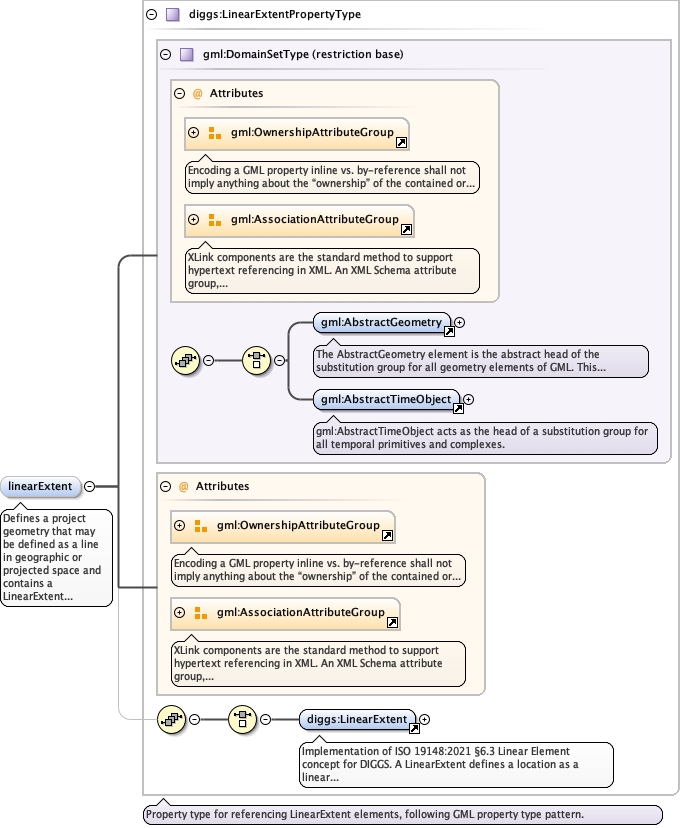

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_LinearExtent.tmp#LinearExtentCore_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LinearExtent
Instance

<diggs:linearExtent xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:linearExtent>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:arealExtent
Namespace http://diggsml.org/schemas/3
Annotations

Defines a project geometry that represents the areal
extent of a project in geographic or projected space and contains a
surface geometry object.

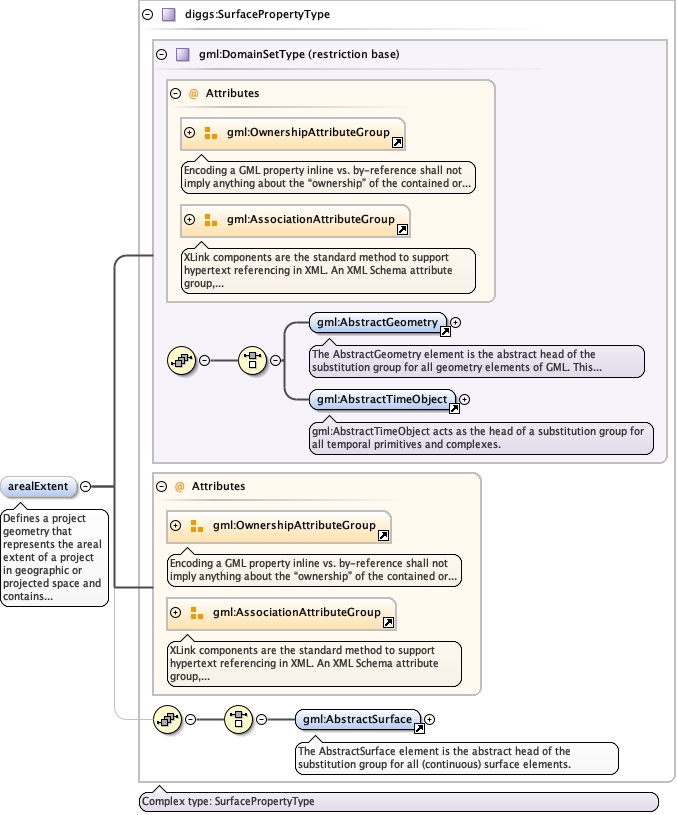

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractSurface.tmp#AbstractSurfaceCore_xsd_Complex_Type_diggs_SurfacePropertyType.tmp#SurfacePropertyType
Type diggs:SurfacePropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children gml:AbstractSurface
Instance

<diggs:arealExtent xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractSurface axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</gml:AbstractSurface>
</diggs:arealExtent>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:projectDateTimeSpan
Namespace http://diggsml.org/schemas/3
Annotations

The interval of time during which the project was
active.

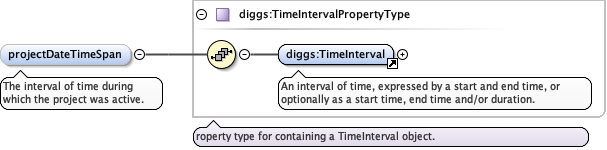

Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:projectDateTimeSpan xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:projectDateTimeSpan>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:locality
Namespace http://diggsml.org/schemas/3
Annotations

Contains either a Locality object or a PointLocation
object that describes, repectively, the non-coordinate or coordinate
location of the project. If only one locality property exists for
the project, referencePoint should be used to desccribe the
coordinate location for the project instead of the PointLocation
object.

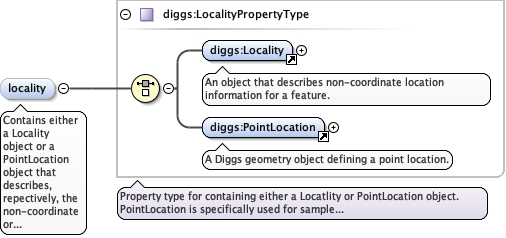

Diagram
DiagramCommon_xsd_Element_diggs_Locality.tmp#LocalityCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCommon_xsd_Complex_Type_diggs_LocalityPropertyType.tmp#LocalityPropertyType
Type diggs:LocalityPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Locality, diggs:PointLocation
Instance

<diggs:locality xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Locality gml:id="">{1,1}</diggs:Locality>
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:locality>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:purpose
Namespace http://diggsml.org/schemas/3
Annotations

A string descxribing the purpose for the project. This is
intended to come from a controlled list of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:projectEvent
Namespace http://diggsml.org/schemas/3
Annotations

Contains a ProjectEvent property describing the
occurrence of a time or location related event associated with a
project.

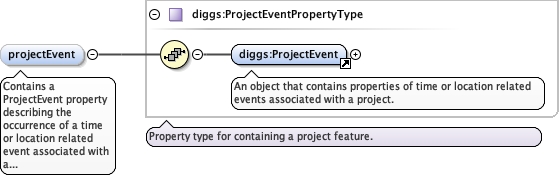

Diagram
DiagramCommon_xsd_Element_diggs_ProjectEvent.tmp#ProjectEventCommon_xsd_Complex_Type_diggs_ProjectEventPropertyType.tmp#ProjectEventPropertyType
Type diggs:ProjectEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:ProjectEvent
Instance

<diggs:projectEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:ProjectEvent gml:id="">{1,1}</diggs:ProjectEvent>
</diggs:projectEvent>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:contract
Namespace http://diggsml.org/schemas/3
Annotations

Contains a Contract object that describes the properties
of a business contract associated with the project.
Diagram
DiagramCommon_xsd_Element_diggs_Contract.tmp#ContractCommon_xsd_Complex_Type_diggs_ContractPropertyType.tmp#ContractPropertyType
Type diggs:ContractPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Contract
Instance

<diggs:contract xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Contract gml:id="">{1,1}</diggs:Contract>
</diggs:contract>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Element diggs:AbstractProjectType / diggs:otherProjectProperty
Namespace http://diggsml.org/schemas/3
Annotations

Contains a Parameter object used to describe the name and
value of a project property not otherwise explicitly defined in the
schema.

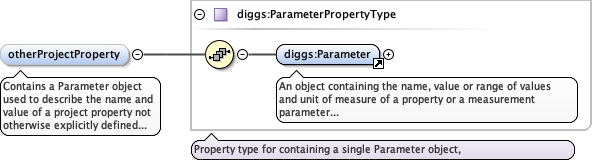

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherProjectProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherProjectProperty>
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
Complex Type diggs:AbstractProjectType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for projects that organize investigations with defined scope, location, and time frame.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_linearExtentAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_arealExtentAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_projectDateTimeSpanAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_purposeAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_projectEventAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_contractAbstractTypes_xsd_Complex_Type_diggs_AbstractProjectType.tmp#AbstractProjectType_otherProjectProperty
Type extension of diggs:AbstractNamedFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:arealExtent, diggs:associatedFile, diggs:contract, diggs:implementationStatus, diggs:internalIdentifier, diggs:linearExtent, diggs:locality, diggs:otherProjectProperty, diggs:projectDateTimeSpan, diggs:projectEvent, diggs:purpose, diggs:referencePoint, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/AbstractTypes.xsd
XML Schema documentation generated by ® XML Editor.
