Complex Type diggs:LengthPerLengthMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Strain or linear ratio: Dimensionless change in length per unit length. Fundamental concept in mechanics for strain, gradient, and slope. Commonly expressed as percent (%), fraction (m/m), Euclid, or ft/ft.

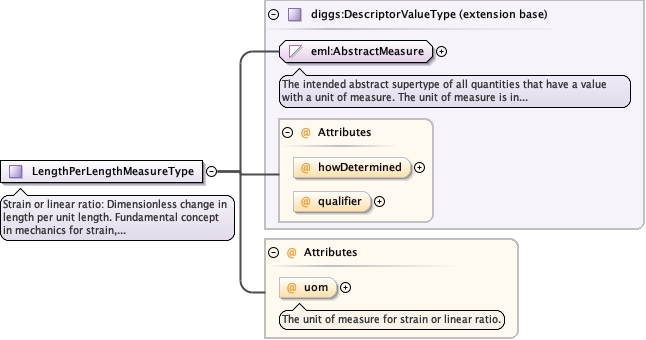

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthPerLengthMeasureType.tmp#LengthPerLengthMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthPerLengthUomEnumType optional
The unit of measure for strain or linear ratio.
Source

<complexType name="LengthPerLengthMeasureType">
  <annotation>
    <documentation>Strain or linear ratio: Dimensionless change in length per unit length. Fundamental concept in mechanics for strain, gradient, and slope. Commonly expressed as percent (%), fraction (m/m), Euclid, or ft/ft.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:LengthPerLengthUomEnumType">
        <annotation>
          <documentation>The unit of measure for strain or linear ratio.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:LengthPerLengthMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for strain or linear ratio.
Type diggs:LengthPerLengthUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:LengthPerLengthUomEnumType">
  <annotation>
    <documentation>The unit of measure for strain or linear ratio.</documentation>
  </annotation>
</attribute>
