Element diggs:AxisLocation
Namespace http://diggsml.org/schemas/3
Annotations

Defines the spatial location and orientation of a single axis  in either the target spatial coordinate reference system, or as a unit vector (in usnits of the target CRS).

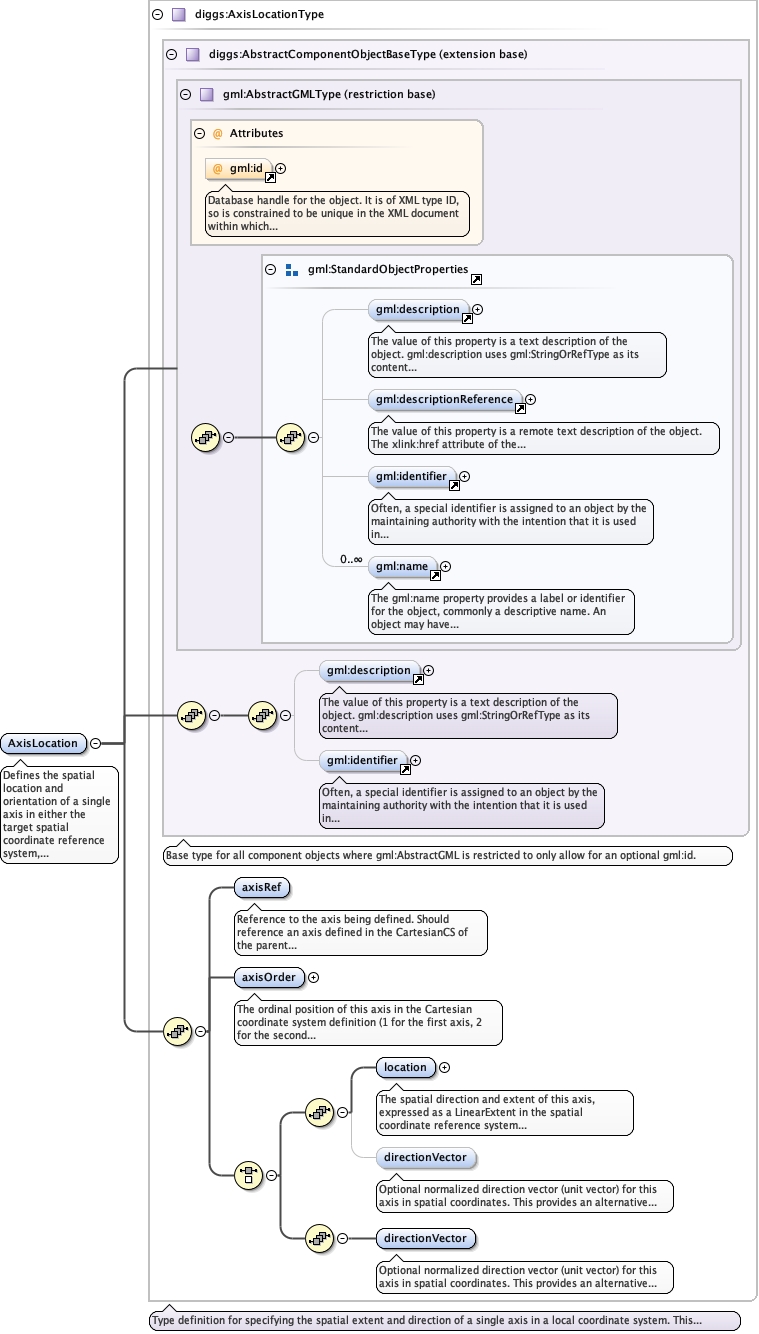

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisRefLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_axisOrderLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_locationLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType_directionVectorLocalReferencing_xsd_Complex_Type_diggs_AxisLocationType.tmp#AxisLocationType
Type diggs:AxisLocationType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:axisOrder, diggs:axisRef, diggs:directionVector, diggs:location, gml:description, gml:identifier
Instance

<diggs:AxisLocation gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:axisRef>{1,1}</diggs:axisRef>
  <diggs:axisOrder>{1,1}</diggs:axisOrder>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:location>
  <diggs:directionVector>{0,1}</diggs:directionVector>
  <diggs:directionVector>{1,1}</diggs:directionVector>
</diggs:AxisLocation>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AxisLocation" type="diggs:AxisLocationType">
  <annotation>
    <documentation>Defines the spatial location and orientation of a single axis in either the target spatial coordinate reference system, or as a unit vector (in usnits of the target CRS).</documentation>
  </annotation>
</element>
