Schema documentation for component diggs:ReferentBaseType

Base type for referent definitions, providing common GML properties (description, name) inherited from gml:AbstractGMLType. Extended by ReferentType to add specific referent properties like referent type, position, and distance along the linear element.

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<complexType name="ReferentBaseType">
  <annotation>
    <documentation>Base type for referent definitions, providing common GML properties (description, name) inherited from gml:AbstractGMLType. Extended by ReferentType to add specific referent properties like referent type, position, and distance along the linear element.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:AbstractGMLType">
      <sequence>
        <element minOccurs="0" ref="gml:description">
          <annotation>
            <documentation>Free-text description of the referent, including any additional context or clarification not captured by the referentType code.</documentation>
          </annotation>
        </element>
      </sequence>
    </restriction>
  </complexContent>
</complexType>

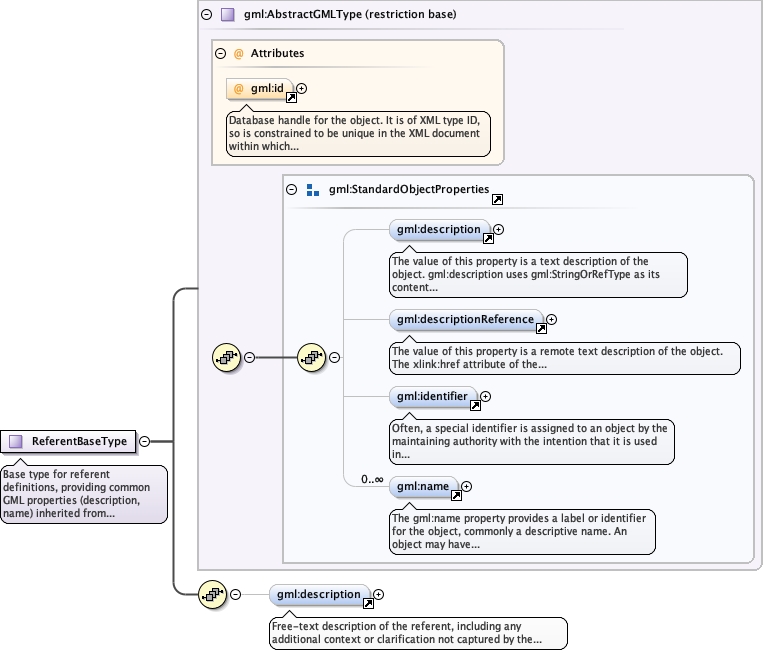

Showing:
