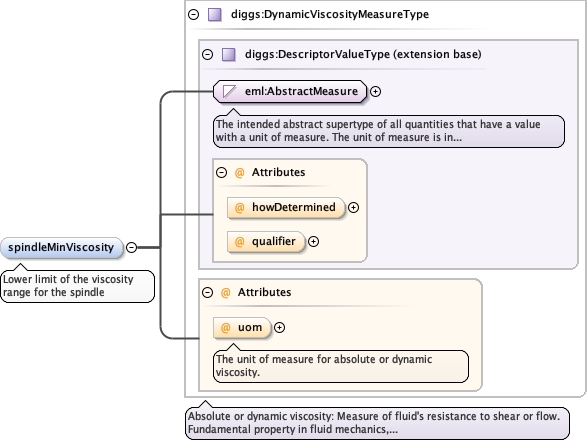

Element diggs:RotationalViscometerType / diggs:spindleMinViscosity
Namespace http://diggsml.org/schemas/3
Annotations

Lower limit of the viscosity range for the
spindle
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType
Type diggs:DynamicViscosityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DynamicViscosityUomEnumType optional
The unit of measure for absolute or dynamic viscosity.
Source

<element minOccurs="0" name="spindleMinViscosity" type="diggs:DynamicViscosityMeasureType">
  <annotation>
    <documentation>Lower limit of the viscosity range for the spindle</documentation>
  </annotation>
</element>
Element diggs:RotationalViscometerType / diggs:spindleMaxViscosity
Namespace http://diggsml.org/schemas/3
Annotations

Upper limit of the viscosity range for the
spindle
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DynamicViscosityMeasureType.tmp#DynamicViscosityMeasureType
Type diggs:DynamicViscosityMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DynamicViscosityUomEnumType optional
The unit of measure for absolute or dynamic viscosity.
Source

<element minOccurs="0" name="spindleMaxViscosity" type="diggs:DynamicViscosityMeasureType">
  <annotation>
    <documentation>Upper limit of the viscosity range for the spindle</documentation>
  </annotation>
</element>

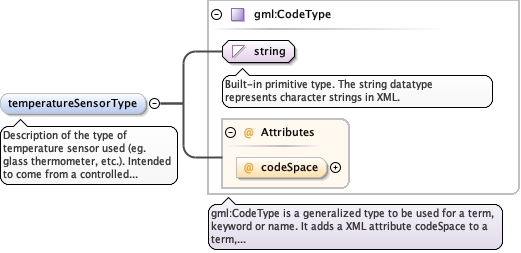

Element diggs:RotationalViscometerType / diggs:temperatureSensorType
Namespace http://diggsml.org/schemas/3
Annotations

Description of the type of temperature sensor used (eg.
glass thermometer, etc.). Intended to come from a controlled list of
terms
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="temperatureSensorType" type="gml:CodeType">
  <annotation>
    <documentation>Description of the type of temperature sensor used (eg. glass thermometer, etc.). Intended to come from a controlled list of terms</documentation>
  </annotation>
</element>

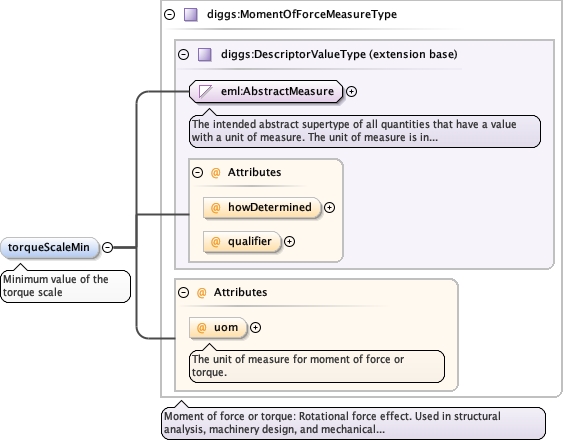

Element diggs:RotationalViscometerType / diggs:torqueScaleMin
Namespace http://diggsml.org/schemas/3
Annotations

Minimum value of the torque scale
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Source

<element minOccurs="0" name="torqueScaleMin" type="diggs:MomentOfForceMeasureType">
  <annotation>
    <documentation>Minimum value of the torque scale</documentation>
  </annotation>
</element>

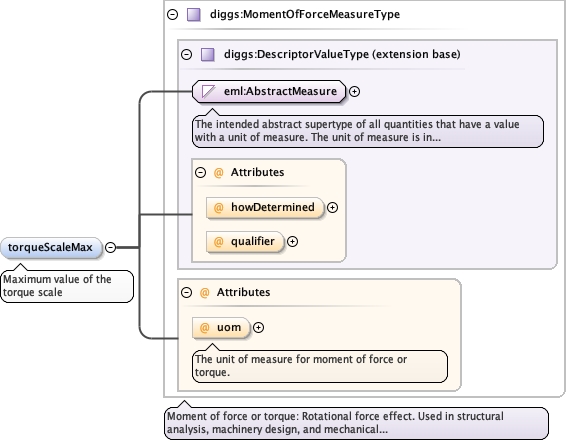

Element diggs:RotationalViscometerType / diggs:torqueScaleMax
Namespace http://diggsml.org/schemas/3
Annotations

Maximum value of the torque scale
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Source

<element minOccurs="0" name="torqueScaleMax" type="diggs:MomentOfForceMeasureType">
  <annotation>
    <documentation>Maximum value of the torque scale</documentation>
  </annotation>
</element>

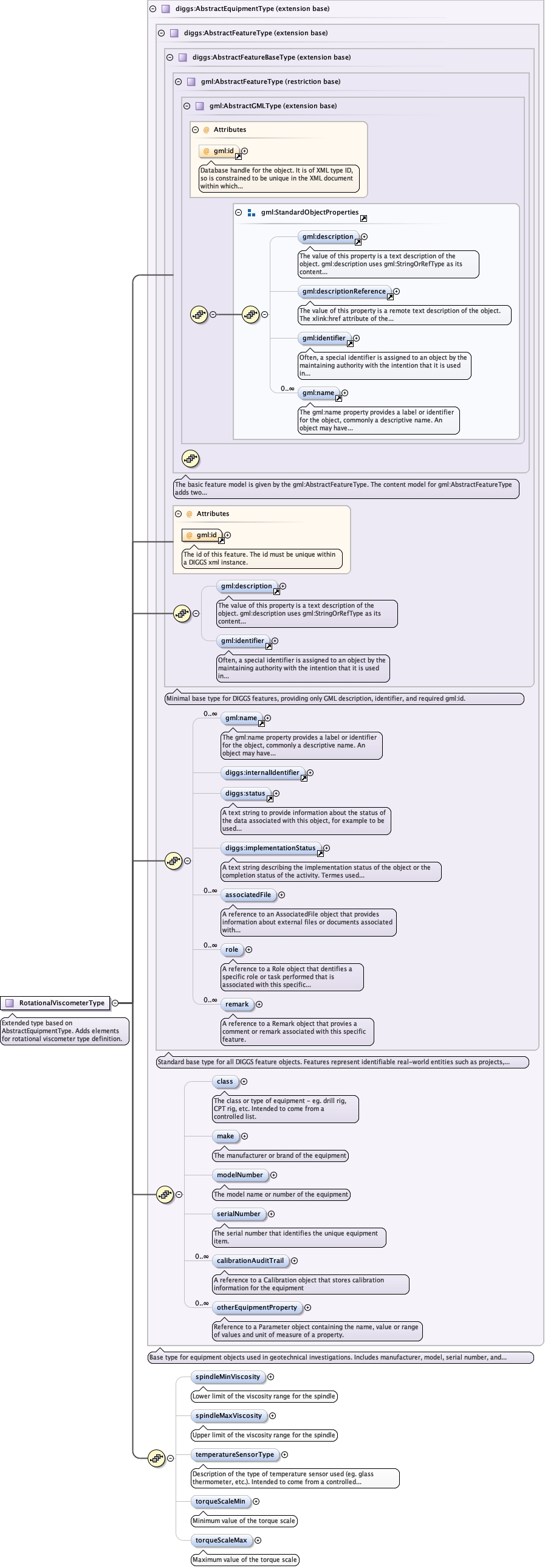

Complex Type diggs:RotationalViscometerType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractEquipmentType. Adds elements for rotational viscometer type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_RotationalViscometerType.tmp#RotationalViscometerType_spindleMinViscosityGrouting_xsd_Complex_Type_diggs_RotationalViscometerType.tmp#RotationalViscometerType_spindleMaxViscosityGrouting_xsd_Complex_Type_diggs_RotationalViscometerType.tmp#RotationalViscometerType_temperatureSensorTypeGrouting_xsd_Complex_Type_diggs_RotationalViscometerType.tmp#RotationalViscometerType_torqueScaleMinGrouting_xsd_Complex_Type_diggs_RotationalViscometerType.tmp#RotationalViscometerType_torqueScaleMax
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:spindleMaxViscosity, diggs:spindleMinViscosity, diggs:status, diggs:temperatureSensorType, diggs:torqueScaleMax, diggs:torqueScaleMin, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="RotationalViscometerType">
  <annotation>
    <documentation>Extended type based on AbstractEquipmentType. Adds elements for rotational viscometer type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="spindleMinViscosity" type="diggs:DynamicViscosityMeasureType">
          <annotation>
            <documentation>Lower limit of the viscosity range for the spindle</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="spindleMaxViscosity" type="diggs:DynamicViscosityMeasureType">
          <annotation>
            <documentation>Upper limit of the viscosity range for the spindle</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="temperatureSensorType" type="gml:CodeType">
          <annotation>
            <documentation>Description of the type of temperature sensor used (eg. glass thermometer, etc.). Intended to come from a controlled list of terms</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueScaleMin" type="diggs:MomentOfForceMeasureType">
          <annotation>
            <documentation>Minimum value of the torque scale</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueScaleMax" type="diggs:MomentOfForceMeasureType">
          <annotation>
            <documentation>Maximum value of the torque scale</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
