Complex Type diggs:InjectionDataResultsPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type for injection data results references. Used to wrap injection data results objects or references in properties.

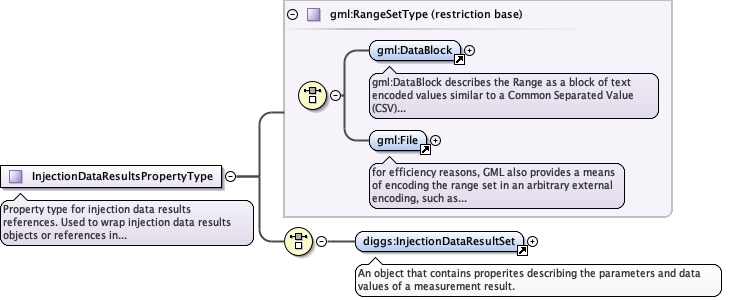

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_DataBlock.tmp#DataBlockgml3_2Profile_diggs_xsd_Element_gml_File.tmp#Filegml3_2Profile_diggs_xsd_Complex_Type_gml_RangeSetType.tmp#RangeSetTypeGrouting_xsd_Element_diggs_InjectionDataResultSet.tmp#InjectionDataResultSet
Type restriction of gml:RangeSetType
Type hierarchy
Used by
Model
Children diggs:InjectionDataResultSet
Source

<complexType name="InjectionDataResultsPropertyType">
  <annotation>
    <documentation>Property type for injection data results references. Used to wrap injection data results objects or references in properties.</documentation>
  </annotation>
  <complexContent>
    <restriction base="gml:RangeSetType">
      <choice>
        <element minOccurs="1" ref="diggs:InjectionDataResultSet"/>
      </choice>
    </restriction>
  </complexContent>
</complexType>
