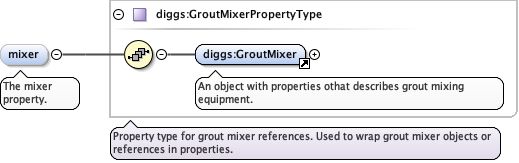

Element diggs:GroutPlantType / diggs:mixer
Namespace http://diggsml.org/schemas/3
Annotations

The mixer property.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutMixer.tmp#GroutMixerGrouting_xsd_Complex_Type_diggs_GroutMixerPropertyType.tmp#GroutMixerPropertyType
Type diggs:GroutMixerPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutMixer
Instance

<diggs:mixer xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutMixer gml:id="">{1,1}</diggs:GroutMixer>
</diggs:mixer>
Source

<element minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
  <annotation>
    <documentation>The mixer property.</documentation>
  </annotation>
</element>

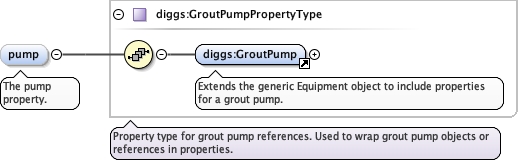

Element diggs:GroutPlantType / diggs:pump
Namespace http://diggsml.org/schemas/3
Annotations

The pump property.
Diagram
DiagramGrouting_xsd_Element_diggs_GroutPump.tmp#GroutPumpGrouting_xsd_Complex_Type_diggs_GroutPumpPropertyType.tmp#GroutPumpPropertyType
Type diggs:GroutPumpPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:GroutPump
Instance

<diggs:pump xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:GroutPump gml:id="">{1,1}</diggs:GroutPump>
</diggs:pump>
Source

<element minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
  <annotation>
    <documentation>The pump property.</documentation>
  </annotation>
</element>

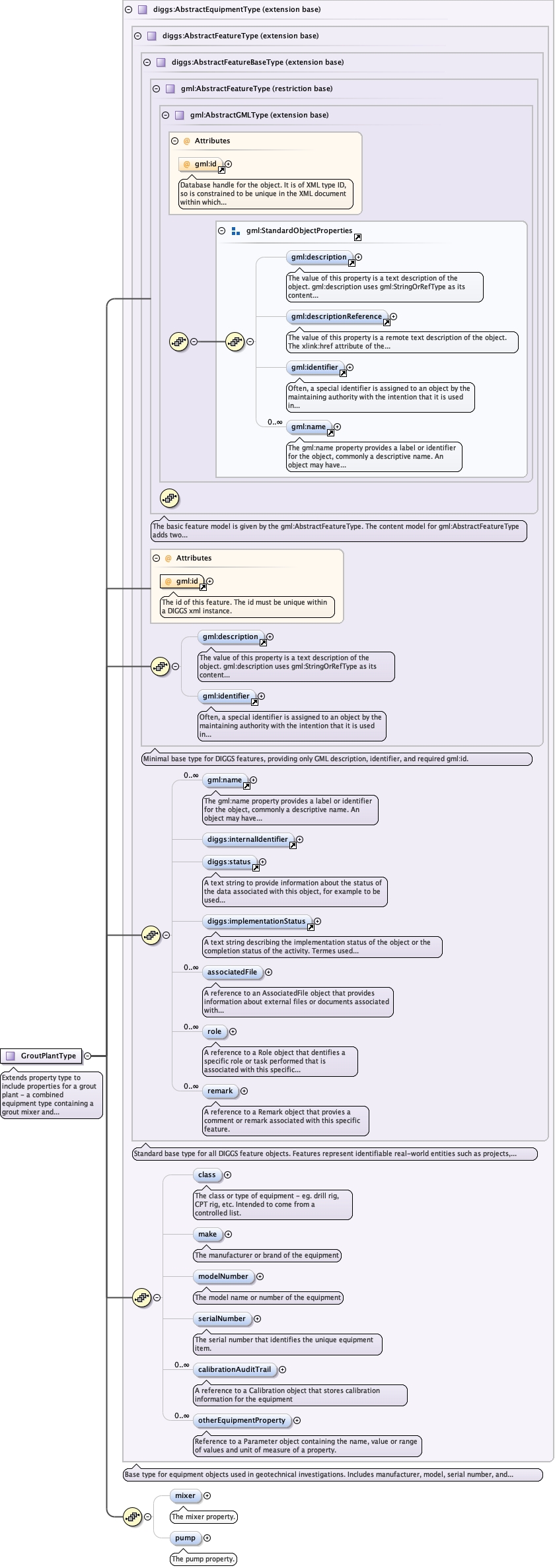

Complex Type diggs:GroutPlantType
Namespace http://diggsml.org/schemas/3
Annotations

Extends property type to include properties for a grout plant - a
combined equipment type containing a grout mixer and a grout pump.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_GroutPlantType.tmp#GroutPlantType_mixerGrouting_xsd_Complex_Type_diggs_GroutPlantType.tmp#GroutPlantType_pump
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:mixer, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pump, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutPlantType">
  <annotation>
    <documentation>Extends property type to include properties for a grout plant - a combined equipment type containing a grout mixer and a grout pump.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="mixer" type="diggs:GroutMixerPropertyType">
          <annotation>
            <documentation>The mixer property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pump" type="diggs:GroutPumpPropertyType">
          <annotation>
            <documentation>The pump property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
