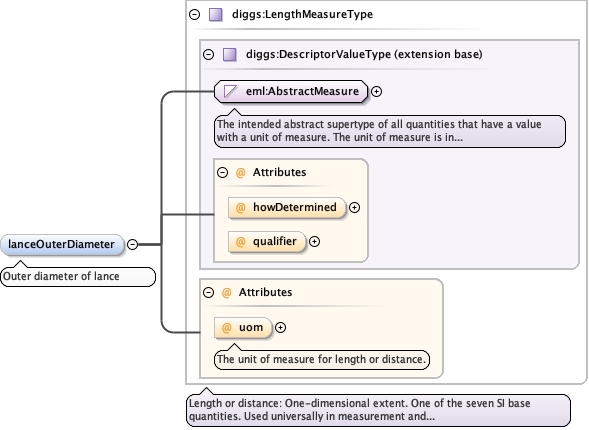

Element diggs:GroutInjectionEquipmentType / diggs:lanceOuterDiameter
Namespace http://diggsml.org/schemas/3
Annotations

Outer diameter of lance
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lanceOuterDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Outer diameter of lance</documentation>
  </annotation>
</element>

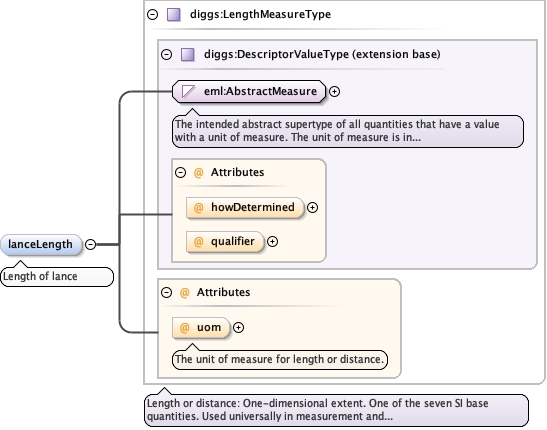

Element diggs:GroutInjectionEquipmentType / diggs:lanceLength
Namespace http://diggsml.org/schemas/3
Annotations

Length of lance
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lanceLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length of lance</documentation>
  </annotation>
</element>

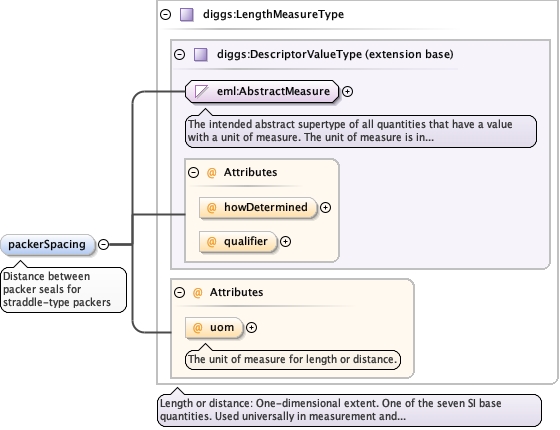

Element diggs:GroutInjectionEquipmentType / diggs:packerSpacing
Namespace http://diggsml.org/schemas/3
Annotations

Distance between packer seals for straddle-type
packers
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="packerSpacing" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Distance between packer seals for straddle-type packers</documentation>
  </annotation>
</element>

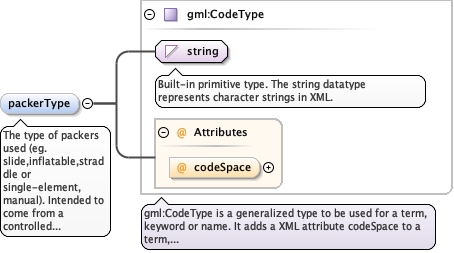

Element diggs:GroutInjectionEquipmentType / diggs:packerType
Namespace http://diggsml.org/schemas/3
Annotations

The type of packers used (eg. slide,inflatable,straddle
or single-element, manual). Intended to come from a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="packerType" type="gml:CodeType">
  <annotation>
    <documentation>The type of packers used (eg. slide,inflatable,straddle or single-element, manual). Intended to come from a controlled list.</documentation>
  </annotation>
</element>
Element diggs:GroutInjectionEquipmentType / diggs:groutPipeInnerDiameter
Namespace http://diggsml.org/schemas/3
Annotations

Inner diameter of the grout pipe or packer
rod.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="groutPipeInnerDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Inner diameter of the grout pipe or packer rod.</documentation>
  </annotation>
</element>

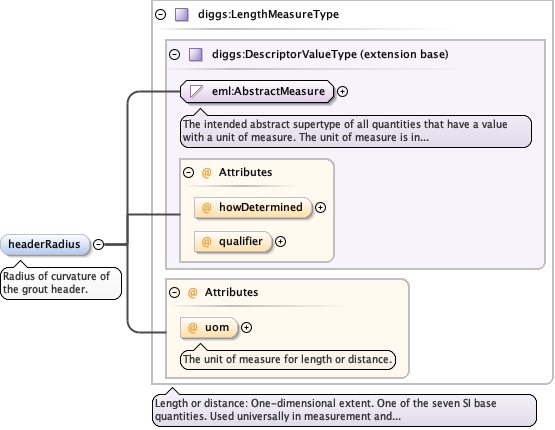

Element diggs:GroutInjectionEquipmentType / diggs:headerRadius
Namespace http://diggsml.org/schemas/3
Annotations

Radius of curvature of the grout header.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="headerRadius" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Radius of curvature of the grout header.</documentation>
  </annotation>
</element>
Element diggs:GroutInjectionEquipmentType / diggs:headerSize
Namespace http://diggsml.org/schemas/3
Annotations

Size of the grout header.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="headerSize" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Size of the grout header.</documentation>
  </annotation>
</element>

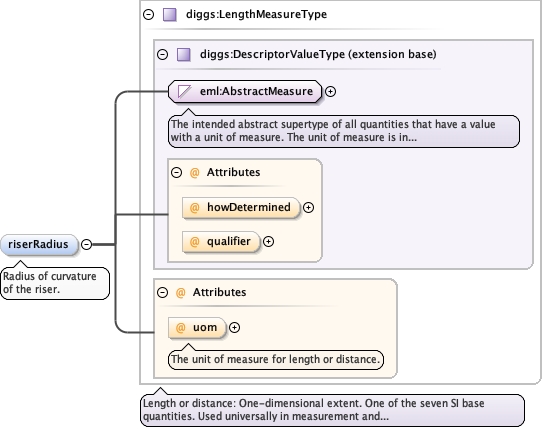

Element diggs:GroutInjectionEquipmentType / diggs:riserRadius
Namespace http://diggsml.org/schemas/3
Annotations

Radius of curvature of the riser.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="riserRadius" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Radius of curvature of the riser.</documentation>
  </annotation>
</element>

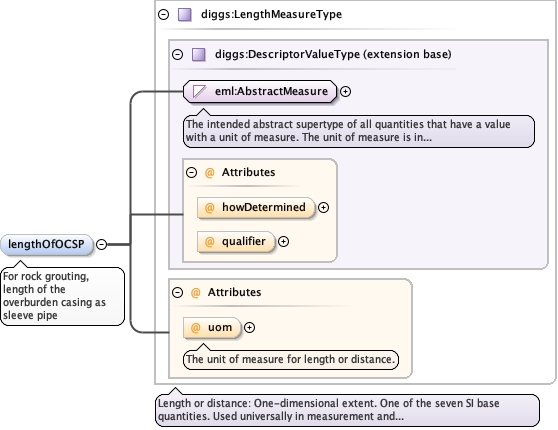

Element diggs:GroutInjectionEquipmentType / diggs:lengthOfOCSP
Namespace http://diggsml.org/schemas/3
Annotations

For rock grouting, length of the overburden casing as
sleeve pipe
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lengthOfOCSP" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>For rock grouting, length of the overburden casing as sleeve pipe</documentation>
  </annotation>
</element>

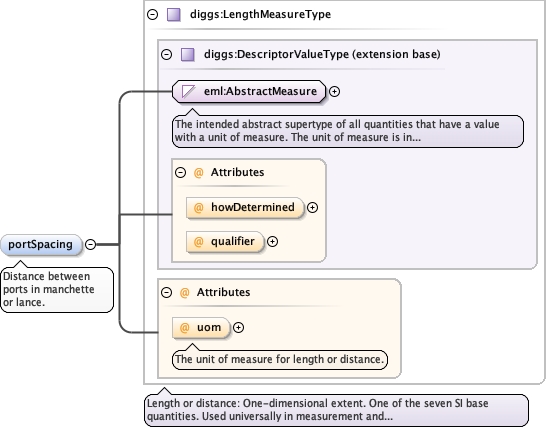

Element diggs:GroutInjectionEquipmentType / diggs:portSpacing
Namespace http://diggsml.org/schemas/3
Annotations

Distance between ports in manchette or
lance.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="portSpacing" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Distance between ports in manchette or lance.</documentation>
  </annotation>
</element>

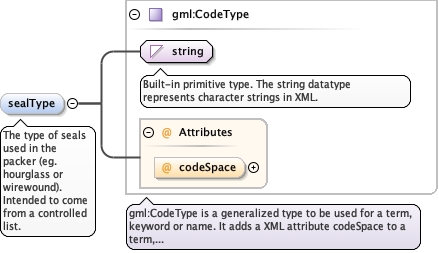

Element diggs:GroutInjectionEquipmentType / diggs:sealType
Namespace http://diggsml.org/schemas/3
Annotations

The type of seals used in the packer (eg. hourglass or
wirewound). Intended to come from a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="sealType" type="gml:CodeType">
  <annotation>
    <documentation>The type of seals used in the packer (eg. hourglass or wirewound). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

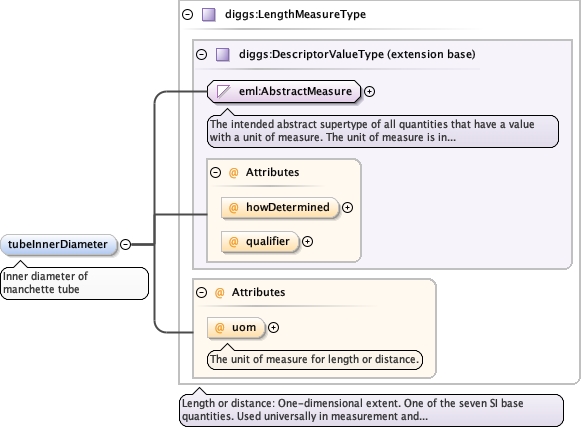

Element diggs:GroutInjectionEquipmentType / diggs:tubeInnerDiameter
Namespace http://diggsml.org/schemas/3
Annotations

Inner diameter of manchette tube
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="tubeInnerDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Inner diameter of manchette tube</documentation>
  </annotation>
</element>
Element diggs:GroutInjectionEquipmentType / diggs:tubeType
Namespace http://diggsml.org/schemas/3
Annotations

Type of manchette or other tube used, eg. standard PVC,
recessed rubber PVC, metal, etc. Intended to come from a controlled
list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="tubeType" type="gml:CodeType">
  <annotation>
    <documentation>Type of manchette or other tube used, eg. standard PVC, recessed rubber PVC, metal, etc. Intended to come from a controlled list.</documentation>
  </annotation>
</element>

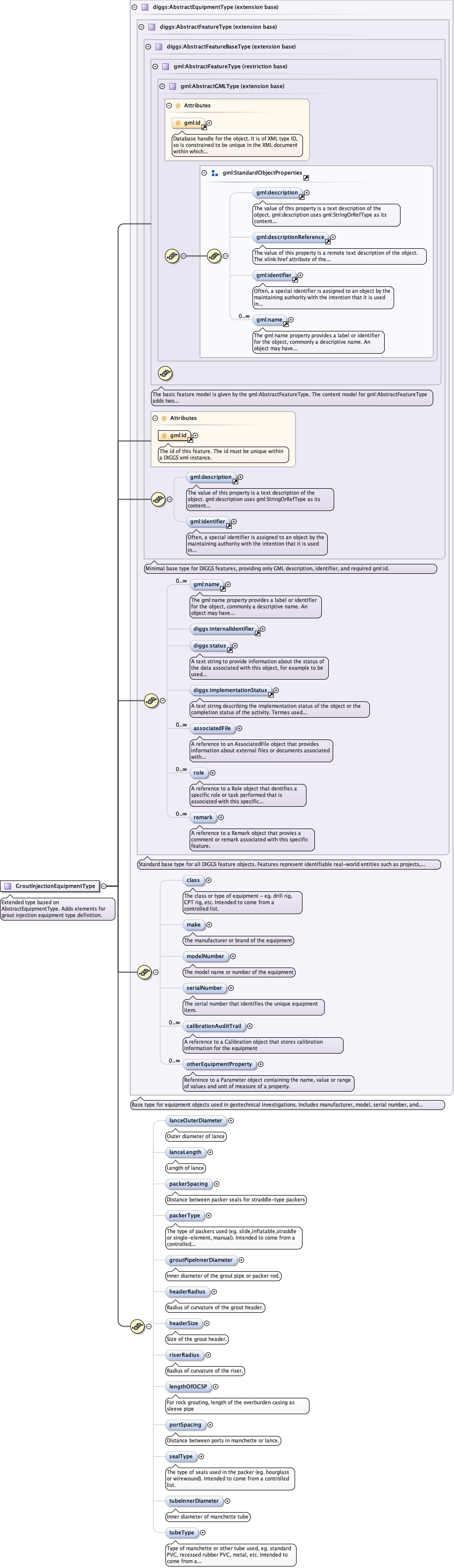

Complex Type diggs:GroutInjectionEquipmentType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractEquipmentType. Adds elements for grout injection equipment type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_lanceOuterDiameterGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_lanceLengthGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_packerSpacingGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_packerTypeGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_groutPipeInnerDiameterGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_headerRadiusGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_headerSizeGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_riserRadiusGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_lengthOfOCSPGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_portSpacingGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_sealTypeGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_tubeInnerDiameterGrouting_xsd_Complex_Type_diggs_GroutInjectionEquipmentType.tmp#GroutInjectionEquipmentType_tubeType
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:groutPipeInnerDiameter, diggs:headerRadius, diggs:headerSize, diggs:implementationStatus, diggs:internalIdentifier, diggs:lanceLength, diggs:lanceOuterDiameter, diggs:lengthOfOCSP, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:packerSpacing, diggs:packerType, diggs:portSpacing, diggs:remark, diggs:riserRadius, diggs:role, diggs:sealType, diggs:serialNumber, diggs:status, diggs:tubeInnerDiameter, diggs:tubeType, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="GroutInjectionEquipmentType">
  <annotation>
    <documentation>Extended type based on AbstractEquipmentType. Adds elements for grout injection equipment type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="lanceOuterDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Outer diameter of lance</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lanceLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length of lance</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="packerSpacing" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Distance between packer seals for straddle-type packers</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="packerType" type="gml:CodeType">
          <annotation>
            <documentation>The type of packers used (eg. slide,inflatable,straddle or single-element, manual). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="groutPipeInnerDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Inner diameter of the grout pipe or packer rod.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="headerRadius" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Radius of curvature of the grout header.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="headerSize" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Size of the grout header.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="riserRadius" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Radius of curvature of the riser.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthOfOCSP" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>For rock grouting, length of the overburden casing as sleeve pipe</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="portSpacing" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Distance between ports in manchette or lance.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="sealType" type="gml:CodeType">
          <annotation>
            <documentation>The type of seals used in the packer (eg. hourglass or wirewound). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tubeInnerDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Inner diameter of manchette tube</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tubeType" type="gml:CodeType">
          <annotation>
            <documentation>Type of manchette or other tube used, eg. standard PVC, recessed rubber PVC, metal, etc. Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
