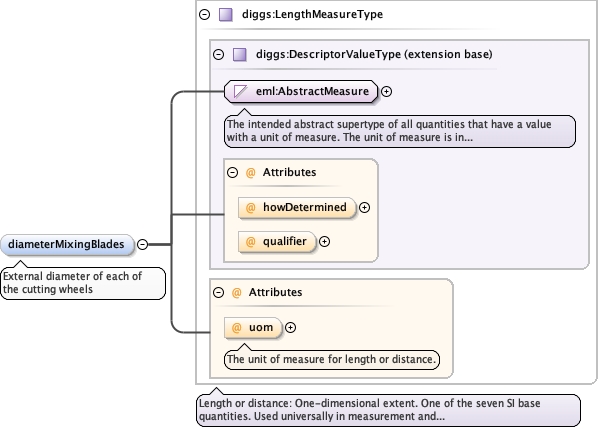

Element diggs:DeepSoilMixingToolType / diggs:diameterMixingBlades
Namespace http://diggsml.org/schemas/3
Annotations

External diameter of each of the cutting
wheels
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="diameterMixingBlades" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>External diameter of each of the cutting wheels</documentation>
  </annotation>
</element>
Element diggs:DeepSoilMixingToolType / diggs:numberBladesPerShaft
Namespace http://diggsml.org/schemas/3
Annotations

The total number of blades on each deep mixing tool
shaft
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="numberBladesPerShaft" type="positiveInteger">
  <annotation>
    <documentation>The total number of blades on each deep mixing tool shaft</documentation>
  </annotation>
</element>
Element diggs:DeepSoilMixingToolType / diggs:numberShafts
Namespace http://diggsml.org/schemas/3
Annotations

The total number of shafts on the deep mixing
tool
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="numberShafts" type="positiveInteger">
  <annotation>
    <documentation>The total number of shafts on the deep mixing tool</documentation>
  </annotation>
</element>

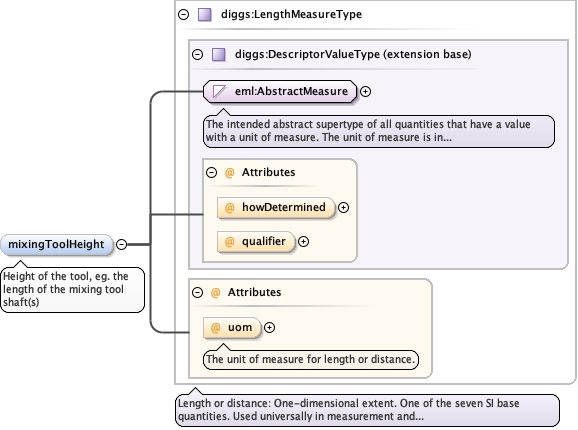

Element diggs:DeepSoilMixingToolType / diggs:mixingToolHeight
Namespace http://diggsml.org/schemas/3
Annotations

Height of the tool, eg. the length of the mixing tool
shaft(s)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="mixingToolHeight" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Height of the tool, eg. the length of the mixing tool shaft(s)</documentation>
  </annotation>
</element>

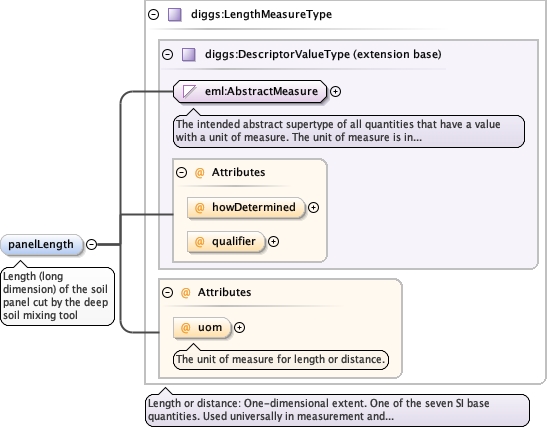

Element diggs:DeepSoilMixingToolType / diggs:panelLength
Namespace http://diggsml.org/schemas/3
Annotations

Length (long dimension) of the soil panel cut by the deep
soil mixing tool
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="panelLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length (long dimension) of the soil panel cut by the deep soil mixing tool</documentation>
  </annotation>
</element>

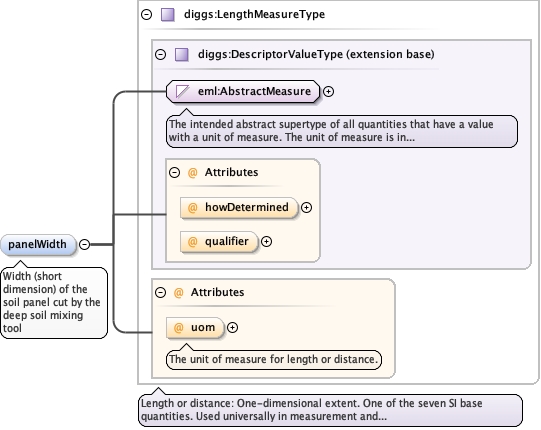

Element diggs:DeepSoilMixingToolType / diggs:panelWidth
Namespace http://diggsml.org/schemas/3
Annotations

Width (short dimension) of the soil panel cut by the deep
soil mixing tool
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="panelWidth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Width (short dimension) of the soil panel cut by the deep soil mixing tool</documentation>
  </annotation>
</element>

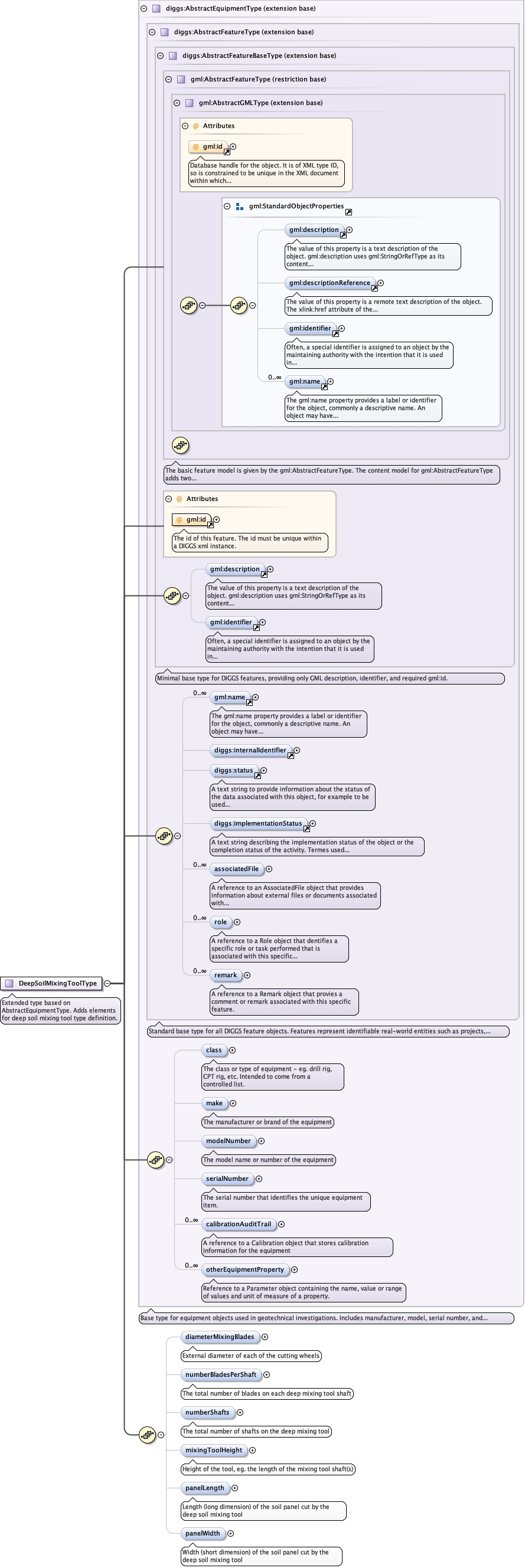

Complex Type diggs:DeepSoilMixingToolType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractEquipmentType. Adds elements for deep soil mixing tool type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_diameterMixingBladesGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_numberBladesPerShaftGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_numberShaftsGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_mixingToolHeightGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_panelLengthGrouting_xsd_Complex_Type_diggs_DeepSoilMixingToolType.tmp#DeepSoilMixingToolType_panelWidth
Type extension of diggs:AbstractEquipmentType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:diameterMixingBlades, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:mixingToolHeight, diggs:modelNumber, diggs:numberBladesPerShaft, diggs:numberShafts, diggs:otherEquipmentProperty, diggs:panelLength, diggs:panelWidth, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="DeepSoilMixingToolType">
  <annotation>
    <documentation>Extended type based on AbstractEquipmentType. Adds elements for deep soil mixing tool type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractEquipmentType">
      <sequence>
        <element minOccurs="0" name="diameterMixingBlades" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>External diameter of each of the cutting wheels</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="numberBladesPerShaft" type="positiveInteger">
          <annotation>
            <documentation>The total number of blades on each deep mixing tool shaft</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="numberShafts" type="positiveInteger">
          <annotation>
            <documentation>The total number of shafts on the deep mixing tool</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="mixingToolHeight" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Height of the tool, eg. the length of the mixing tool shaft(s)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="panelLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length (long dimension) of the soil panel cut by the deep soil mixing tool</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="panelWidth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Width (short dimension) of the soil panel cut by the deep soil mixing tool</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
