Namespace http://diggsml.org/schemas/3
Annotations
An procedure object that describes the components of a geophysical field
survey, including details about the receiver and source equipment, data acquisition
system, recording parameters, and source-receiver configurations or platform
geometries.

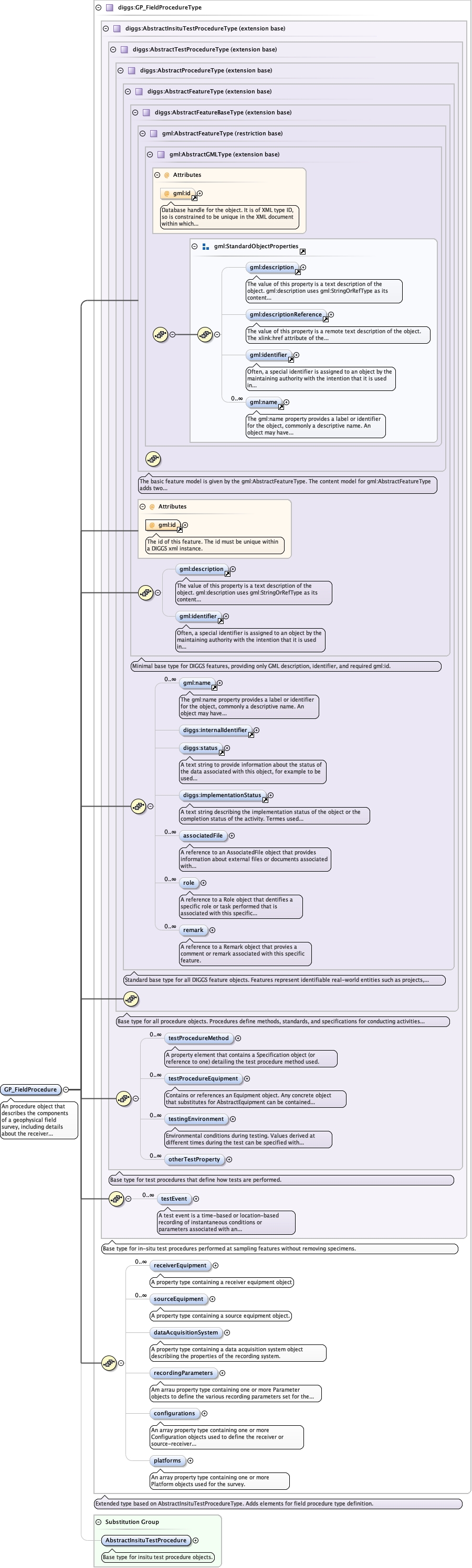

Diagram
Type diggs:GP_FieldProcedureType
Type hierarchy
Properties
Substitution Group Affiliation
Used by
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent* ,
diggs:receiverEquipment* ,
diggs:sourceEquipment* ,
diggs:dataAcquisitionSystem{0,1} ,
diggs:recordingParameters{0,1} ,
diggs:configurations{0,1} ,
diggs:platforms{0,1}
Children diggs:associatedFile diggs:configurations diggs:dataAcquisitionSystem diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:platforms diggs:receiverEquipment diggs:recordingParameters diggs:remark diggs:role diggs:sourceEquipment diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:GP_FieldProcedure gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,unbounded} </diggs:testEvent>
<diggs:receiverEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:receiverEquipment>
<diggs:sourceEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:sourceEquipment>
<diggs:dataAcquisitionSystem xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:dataAcquisitionSystem>
<diggs:recordingParameters > {0,1} </diggs:recordingParameters>
<diggs:configurations > {0,1} </diggs:configurations>
<diggs:platforms > {0,1} </diggs:platforms>
</diggs:GP_FieldProcedure>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "GP_FieldProcedure" type= "diggs:GP_FieldProcedureType" substitutionGroup= "diggs:AbstractInsituTestProcedure" >
<annotation >
<documentation > An procedure object that describes the components of a geophysical field survey, including details about the receiver and source equipment, data acquisition system, recording parameters, and source-receiver configurations or platform geometries. </documentation>
</annotation>
</element>
