Element diggs:ReceiverLocationsType / diggs:receiverRef
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a GP_Receiver object's gml:ID. At least
one GP_Receiver object must exist. If multiple receiverRef
properties are used the sourceLocations property must contain either
a MultiPointLocation or RectifiedGrid object and the order of the
tuples must correspond with the order of the receiverRef properties
within the instance.

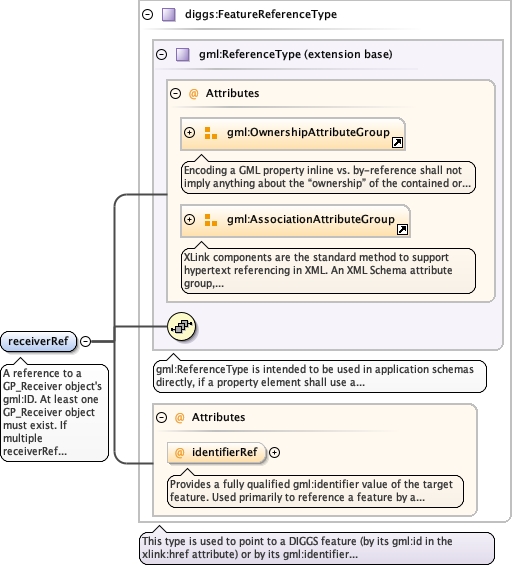

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_ReferenceType.tmp#ReferenceTypeCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType_identifierRefCommon_xsd_Complex_Type_diggs_FeatureReferenceType.tmp#FeatureReferenceType
Type diggs:FeatureReferenceType
Type hierarchy
Properties
content complex
maxOccurs unbounded
Model
Attributes
QName Type Fixed Default Use Annotation
identifierRef diggs:IdentifierReferenceType optional
Provides a fully qualified gml:identifier value of the target
feature. Used primarily to reference a feature by a globally unique
identifier as opposed to the gml:id
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="unbounded" name="receiverRef" type="diggs:FeatureReferenceType">
  <annotation>
    <documentation>A reference to a GP_Receiver object's gml:ID. At least one GP_Receiver object must exist. If multiple receiverRef properties are used the sourceLocations property must contain either a MultiPointLocation or RectifiedGrid object and the order of the tuples must correspond with the order of the receiverRef properties within the instance.</documentation>
  </annotation>
</element>
Element diggs:ReceiverLocationsType / diggs:locations
Namespace http://diggsml.org/schemas/3
Annotations

The locations property.

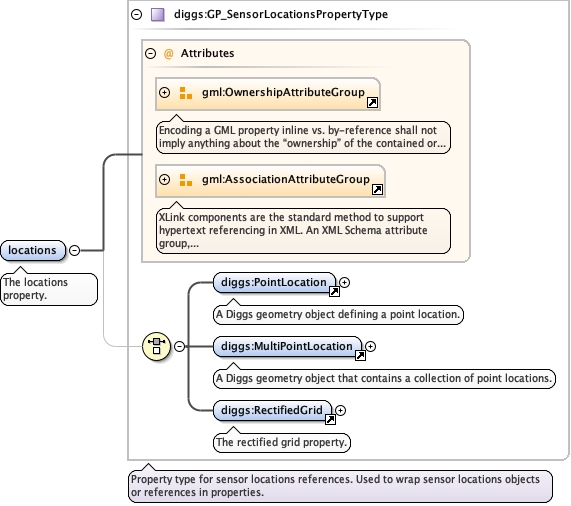

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Element_diggs_MultiPointLocation.tmp#MultiPointLocationCore_xsd_Element_diggs_RectifiedGrid.tmp#http___diggsml.org_schemas_3_RectifiedGridGeophysics_xsd_Complex_Type_diggs_GP_SensorLocationsPropertyType.tmp#GP_SensorLocationsPropertyType
Type diggs:GP_SensorLocationsPropertyType
Properties
content complex
Model
Children diggs:MultiPointLocation, diggs:PointLocation, diggs:RectifiedGrid
Instance

<diggs:locations xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
  <diggs:MultiPointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:MultiPointLocation>
  <diggs:RectifiedGrid axisLabels="" dimension="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:RectifiedGrid>
</diggs:locations>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="locations" type="diggs:GP_SensorLocationsPropertyType">
  <annotation>
    <documentation>The locations property.</documentation>
  </annotation>
</element>
Complex Type diggs:ReceiverLocationsType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractObjectType. Adds elements for receiver locations type definition.

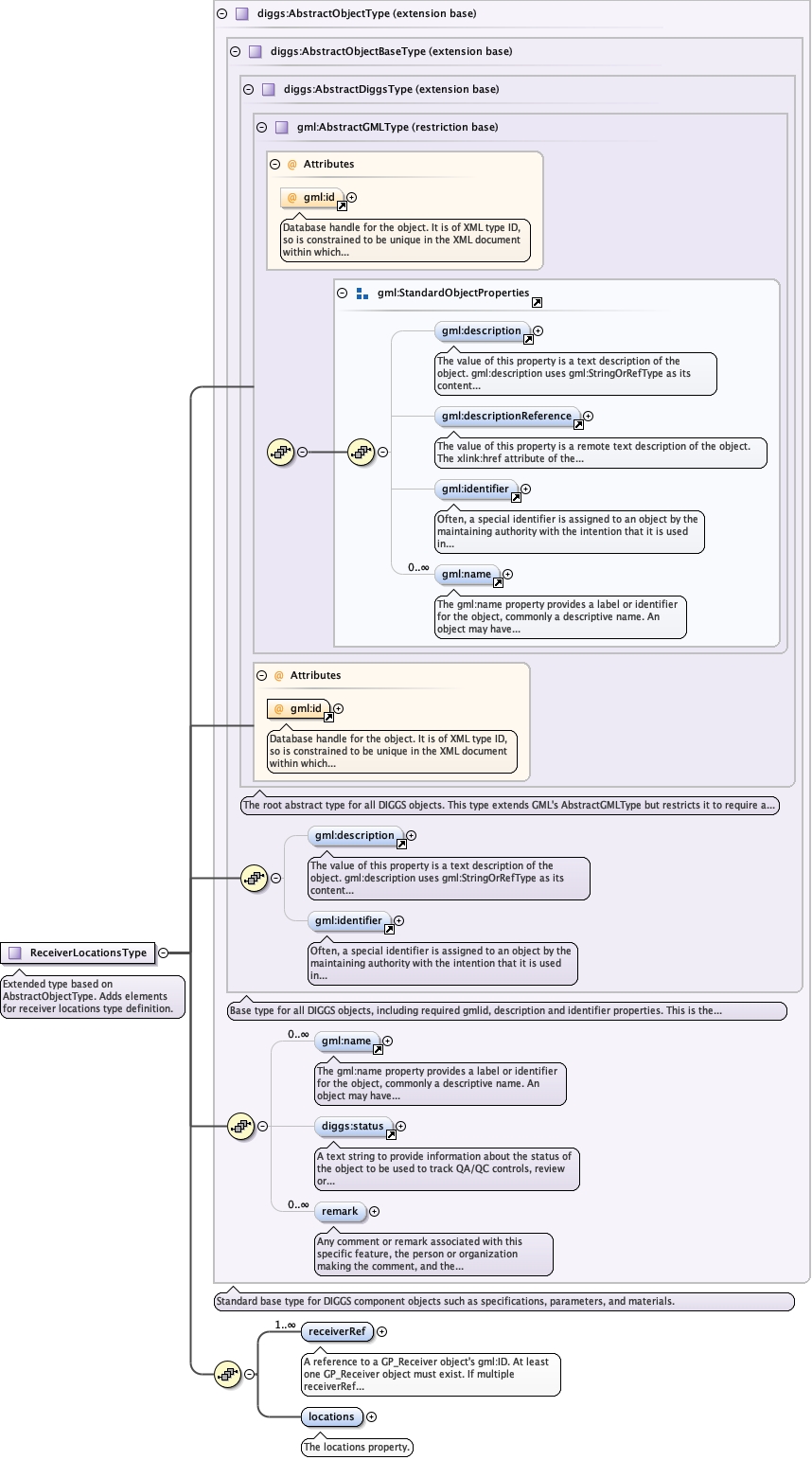

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeGeophysics_xsd_Complex_Type_diggs_ReceiverLocationsType.tmp#ReceiverLocationsType_receiverRefGeophysics_xsd_Complex_Type_diggs_ReceiverLocationsType.tmp#ReceiverLocationsType_locations
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:locations, diggs:receiverRef, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="ReceiverLocationsType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for receiver locations type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="unbounded" name="receiverRef" type="diggs:FeatureReferenceType">
          <annotation>
            <documentation>A reference to a GP_Receiver object's gml:ID. At least one GP_Receiver object must exist. If multiple receiverRef properties are used the sourceLocations property must contain either a MultiPointLocation or RectifiedGrid object and the order of the tuples must correspond with the order of the receiverRef properties within the instance.</documentation>
          </annotation>
        </element>
        <element name="locations" type="diggs:GP_SensorLocationsPropertyType">
          <annotation>
            <documentation>The locations property.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
