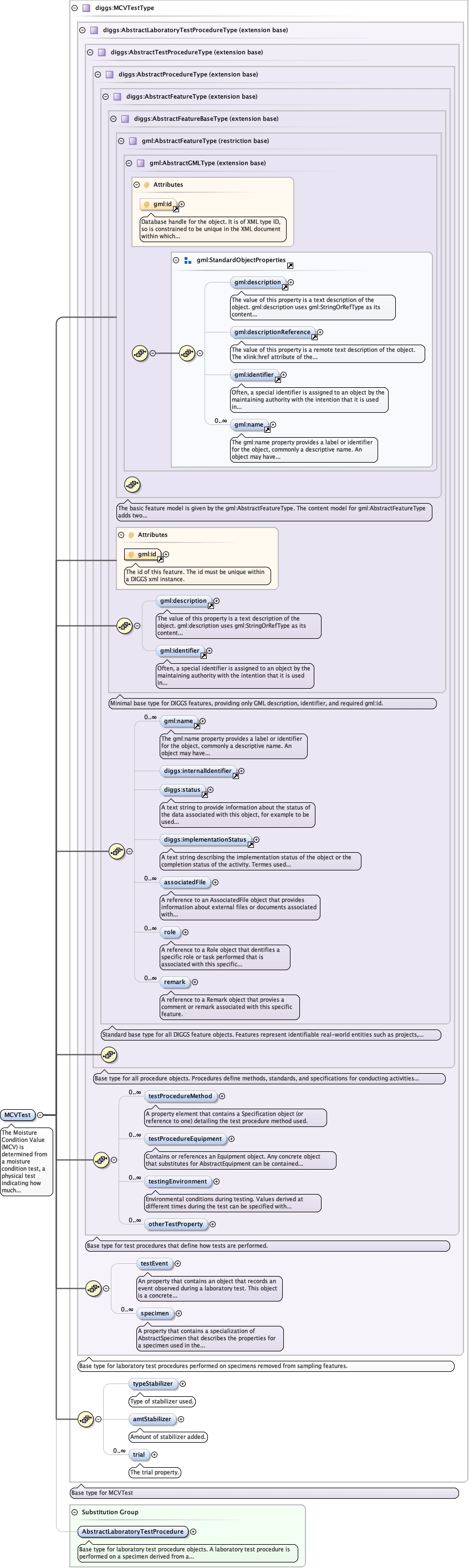

Schema documentation for component diggs:MCVTest

The Moisture Condition Value (MCV) is determined from a moisture condition test, a physical test indicating how much compactive effort is needed to compact a sample of soil at a particular moisture content. Compactive effort is provided by dropping a captive weight vertically a known distance on to a sample of soil in a cylindrical mould, and measuring compaction. By counting blows to give the required compaction it will be possible to establish a MCV for a soil at a particular moisture content.

<diggs:MCVTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:specimen>
  <diggs:typeStabilizer codeSpace="">{0,1}</diggs:typeStabilizer>
  <diggs:amtStabilizer howDetermined="" qualifier="" uom="">{0,1}</diggs:amtStabilizer>
  <diggs:trial>{0,unbounded}</diggs:trial>
</diggs:MCVTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="MCVTest" type="diggs:MCVTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>The Moisture Condition Value (MCV) is determined from a moisture condition test, a physical test indicating how much compactive effort is needed to compact a sample of soil at a particular moisture content. Compactive effort is provided by dropping a captive weight vertically a known distance on to a sample of soil in a cylindrical mould, and measuring compaction. By counting blows to give the required compaction it will be possible to establish a MCV for a soil at a particular moisture content.</documentation> </annotation> </element>
