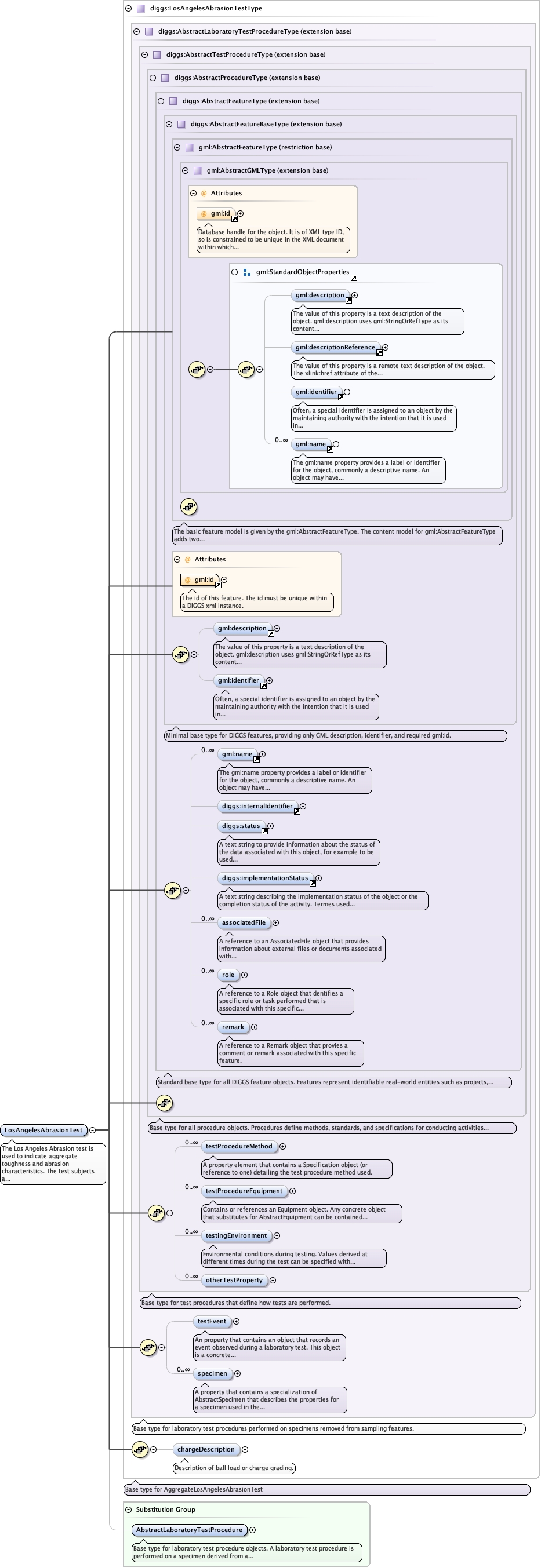

Schema documentation for component diggs:LosAngelesAbrasionTest

The Los Angeles Abrasion test is used to indicate aggregate toughness and abrasion characteristics. The test subjects a coarse aggregate sample to abrasion, impact, and grinding in a rotating steel drum containing a specified number of steel spheres. After being subjected to the rotating drum, the weight of aggregate that is retained on a specified sieve is subtracted from the original weight to obtain a percentage of the total aggregate weight that has broken down and passed through. Therefore, an L.A. abrasion loss value of 40 indicates that 40% of the original sample passed through.

<diggs:LosAngelesAbrasionTest gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:specimen>
  <diggs:chargeDescription>{0,1}</diggs:chargeDescription>
</diggs:LosAngelesAbrasionTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="LosAngelesAbrasionTest" type="diggs:LosAngelesAbrasionTestType" abstract="false" substitutionGroup="diggs:AbstractLaboratoryTestProcedure"> <annotation> <documentation>The Los Angeles Abrasion test is used to indicate aggregate toughness and abrasion characteristics. The test subjects a coarse aggregate sample to abrasion, impact, and grinding in a rotating steel drum containing a specified number of steel spheres. After being subjected to the rotating drum, the weight of aggregate that is retained on a specified sieve is subtracted from the original weight to obtain a percentage of the total aggregate weight that has broken down and passed through. Therefore, an L.A. abrasion loss value of 40 indicates that 40% of the original sample passed through.</documentation> </annotation> </element>
