Namespace http://diggsml.org/schemas/3
Annotations
This test determines the insitu permeability of a soil based on constant
head, falling head, and packer test methods.

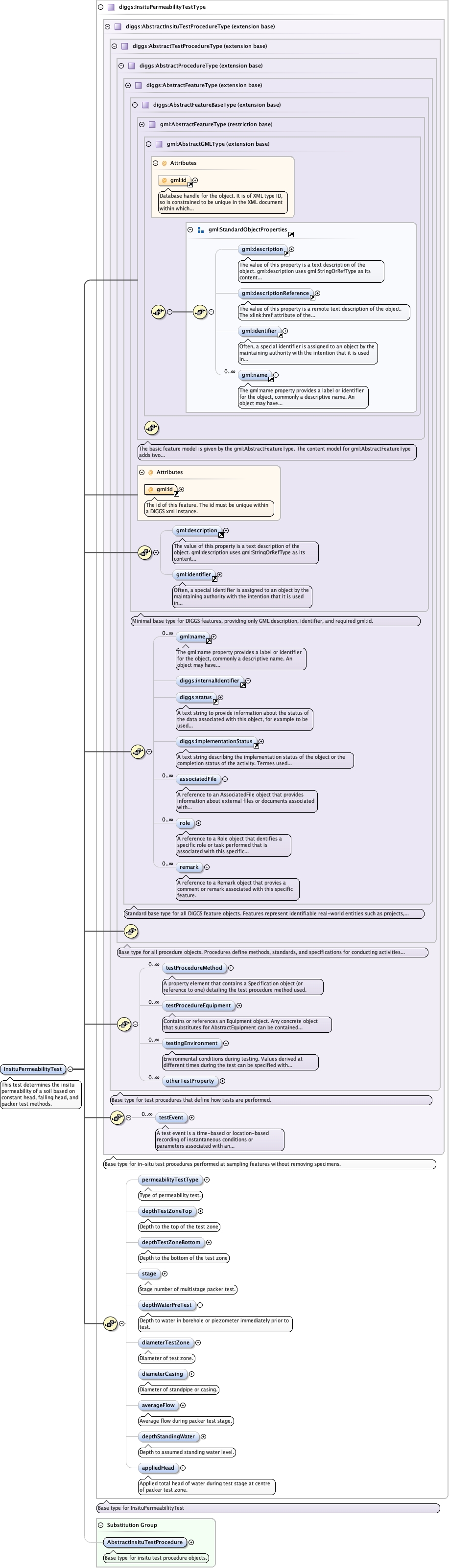

Diagram
Type diggs:InsituPermeabilityTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent* ,
diggs:permeabilityTestType{0,1} ,
diggs:depthTestZoneTop{0,1} ,
diggs:depthTestZoneBottom{0,1} ,
diggs:stage{0,1} ,
diggs:depthWaterPreTest{0,1} ,
diggs:diameterTestZone{0,1} ,
diggs:diameterCasing{0,1} ,
diggs:averageFlow{0,1} ,
diggs:depthStandingWater{0,1} ,
diggs:appliedHead{0,1}
Children diggs:appliedHead diggs:associatedFile diggs:averageFlow diggs:depthStandingWater diggs:depthTestZoneBottom diggs:depthTestZoneTop diggs:depthWaterPreTest diggs:diameterCasing diggs:diameterTestZone diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:permeabilityTestType diggs:remark diggs:role diggs:stage diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:InsituPermeabilityTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,unbounded} </diggs:testEvent>
<diggs:permeabilityTestType codeSpace= "" > {0,1} </diggs:permeabilityTestType>
<diggs:depthTestZoneTop howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:depthTestZoneTop>
<diggs:depthTestZoneBottom howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:depthTestZoneBottom>
<diggs:stage > {0,1} </diggs:stage>
<diggs:depthWaterPreTest howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:depthWaterPreTest>
<diggs:diameterTestZone howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:diameterTestZone>
<diggs:diameterCasing howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:diameterCasing>
<diggs:averageFlow howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:averageFlow>
<diggs:depthStandingWater howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:depthStandingWater>
<diggs:appliedHead howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:appliedHead>
</diggs:InsituPermeabilityTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "InsituPermeabilityTest" type= "diggs:InsituPermeabilityTestType" abstract= "false" substitutionGroup= "diggs:AbstractInsituTestProcedure" >
<annotation >
<documentation > This test determines the insitu permeability of a soil based on constant head, falling head, and packer test methods. </documentation>
</annotation>
</element>
