Element diggs:MCVTestTrialType / diggs:trialNo
Namespace http://diggsml.org/schemas/3
Annotations

The count of the test cycle
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element name="trialNo" type="positiveInteger" minOccurs="0">
  <annotation>
    <documentation>The count of the test cycle</documentation>
  </annotation>
</element>

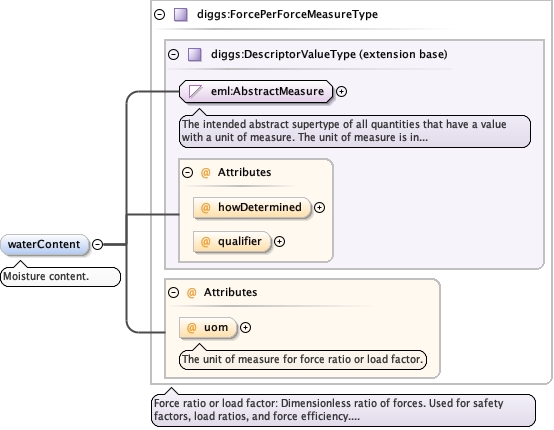

Element diggs:MCVTestTrialType / diggs:waterContent
Namespace http://diggsml.org/schemas/3
Annotations

Moisture content.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerForceMeasureType.tmp#ForcePerForceMeasureType
Type diggs:ForcePerForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerForceUomEnumType optional
The unit of measure for force ratio or load factor.
Source

<element name="waterContent" type="diggs:ForcePerForceMeasureType" minOccurs="0">
  <annotation>
    <documentation>Moisture content.</documentation>
  </annotation>
</element>

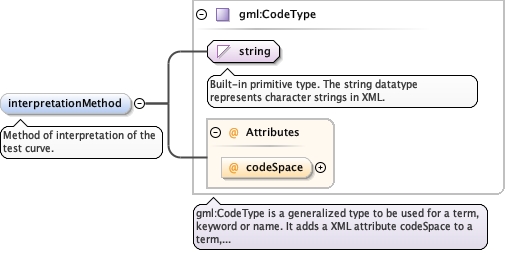

Element diggs:MCVTestTrialType / diggs:interpretationMethod
Namespace http://diggsml.org/schemas/3
Annotations

Method of interpretation of the test
curve.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>Method of interpretation of the test curve.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:bulkDensity
Namespace http://diggsml.org/schemas/3
Annotations

Bulk density measured after test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_DensityOrUnitWeightMeasureType.tmp#DensityOrUnitWeightMeasureType
Type diggs:DensityOrUnitWeightMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:DiggsDensityOrUnitWeightUomEnumType required
The unit of measure for density or unit weight. This can be either a mass per volume unit (for true density) or a force per volume unit (for unit weight).
Source

<element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
  <annotation>
    <documentation>Bulk density measured after test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:mcv
Namespace http://diggsml.org/schemas/3
Annotations

Measured MCV
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element name="mcv" type="double" minOccurs="0">
  <annotation>
    <documentation>Measured MCV</documentation>
  </annotation>
</element>

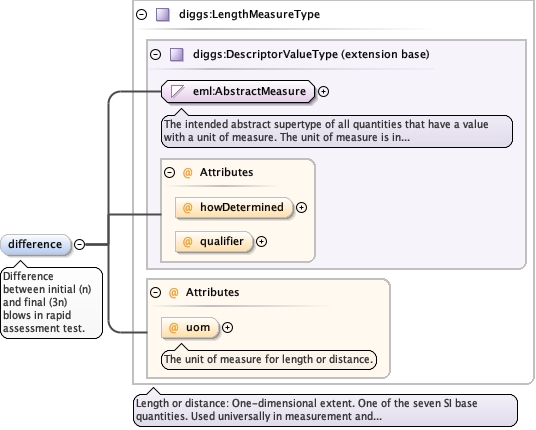

Element diggs:MCVTestTrialType / diggs:difference
Namespace http://diggsml.org/schemas/3
Annotations

Difference between initial (n) and final (3n) blows in
rapid assessment test.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="difference" type="diggs:LengthMeasureType" minOccurs="0">
  <annotation>
    <documentation>Difference between initial (n) and final (3n) blows in rapid assessment test.</documentation>
  </annotation>
</element>
Element diggs:MCVTestTrialType / diggs:strongerWeaker
Namespace http://diggsml.org/schemas/3
Annotations

Stronger or weaker than pre-calibrated
standard.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element name="strongerWeaker" type="string" minOccurs="0">
  <annotation>
    <documentation>Stronger or weaker than pre-calibrated standard.</documentation>
  </annotation>
</element>

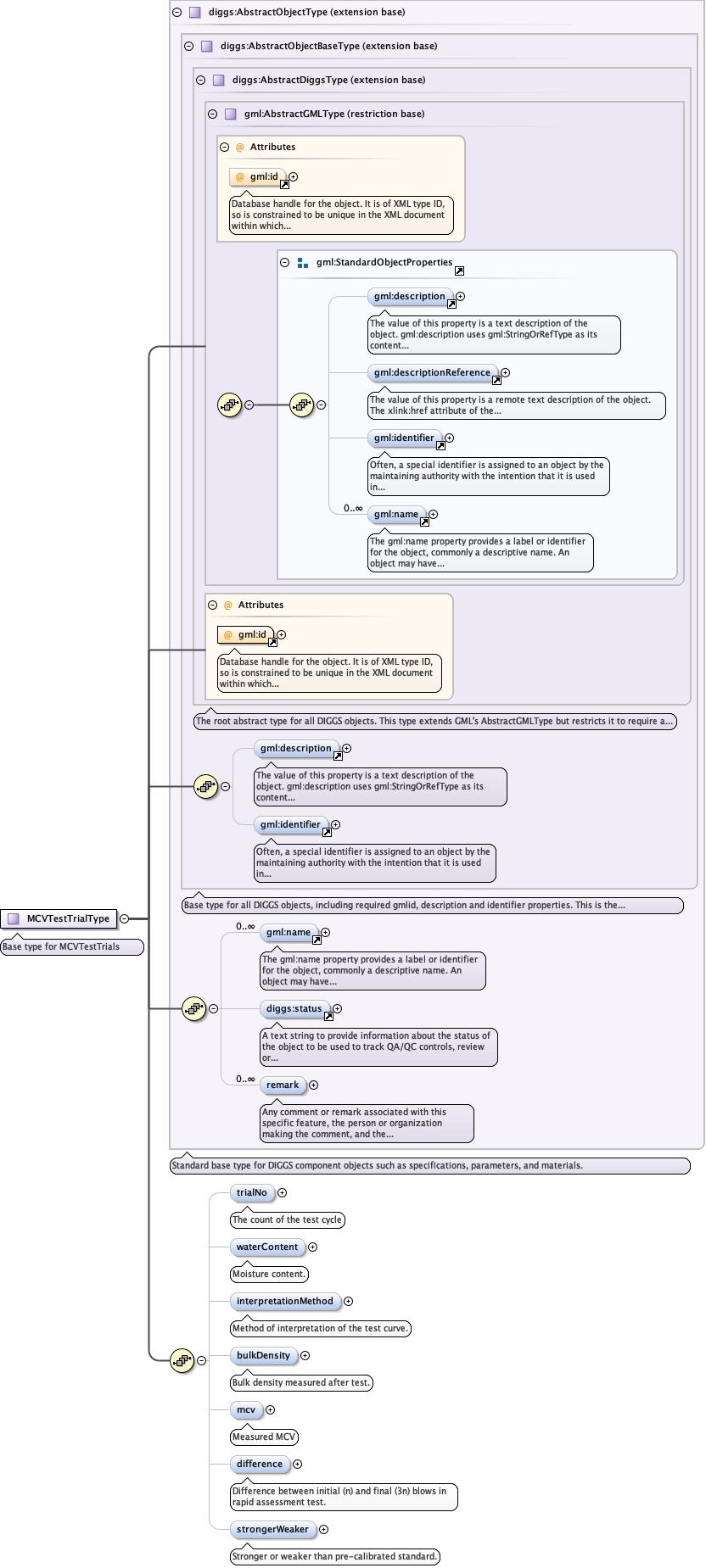

Complex Type diggs:MCVTestTrialType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for MCVTestTrials
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_trialNoExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_waterContentExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_interpretationMethodExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_bulkDensityExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_mcvExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_differenceExtProcedures_xsd_Complex_Type_diggs_MCVTestTrialType.tmp#MCVTestTrialType_strongerWeaker
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:bulkDensity, diggs:difference, diggs:interpretationMethod, diggs:mcv, diggs:remark, diggs:status, diggs:strongerWeaker, diggs:trialNo, diggs:waterContent, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="MCVTestTrialType">
  <annotation>
    <documentation>Base type for MCVTestTrials</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="trialNo" type="positiveInteger" minOccurs="0">
          <annotation>
            <documentation>The count of the test cycle</documentation>
          </annotation>
        </element>
        <element name="waterContent" type="diggs:ForcePerForceMeasureType" minOccurs="0">
          <annotation>
            <documentation>Moisture content.</documentation>
          </annotation>
        </element>
        <element name="interpretationMethod" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>Method of interpretation of the test curve.</documentation>
          </annotation>
        </element>
        <element name="bulkDensity" type="diggs:DensityOrUnitWeightMeasureType" minOccurs="0">
          <annotation>
            <documentation>Bulk density measured after test.</documentation>
          </annotation>
        </element>
        <element name="mcv" type="double" minOccurs="0">
          <annotation>
            <documentation>Measured MCV</documentation>
          </annotation>
        </element>
        <element name="difference" type="diggs:LengthMeasureType" minOccurs="0">
          <annotation>
            <documentation>Difference between initial (n) and final (3n) blows in rapid assessment test.</documentation>
          </annotation>
        </element>
        <element name="strongerWeaker" type="string" minOccurs="0">
          <annotation>
            <documentation>Stronger or weaker than pre-calibrated standard.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
