Namespace http://diggsml.org/schemas/3/geotechnical
Annotations
An object that describes an unconfined compressive strength test procedure. The Compressive strength of a material is that value of uniaxial
compressive stress reached when the material fails

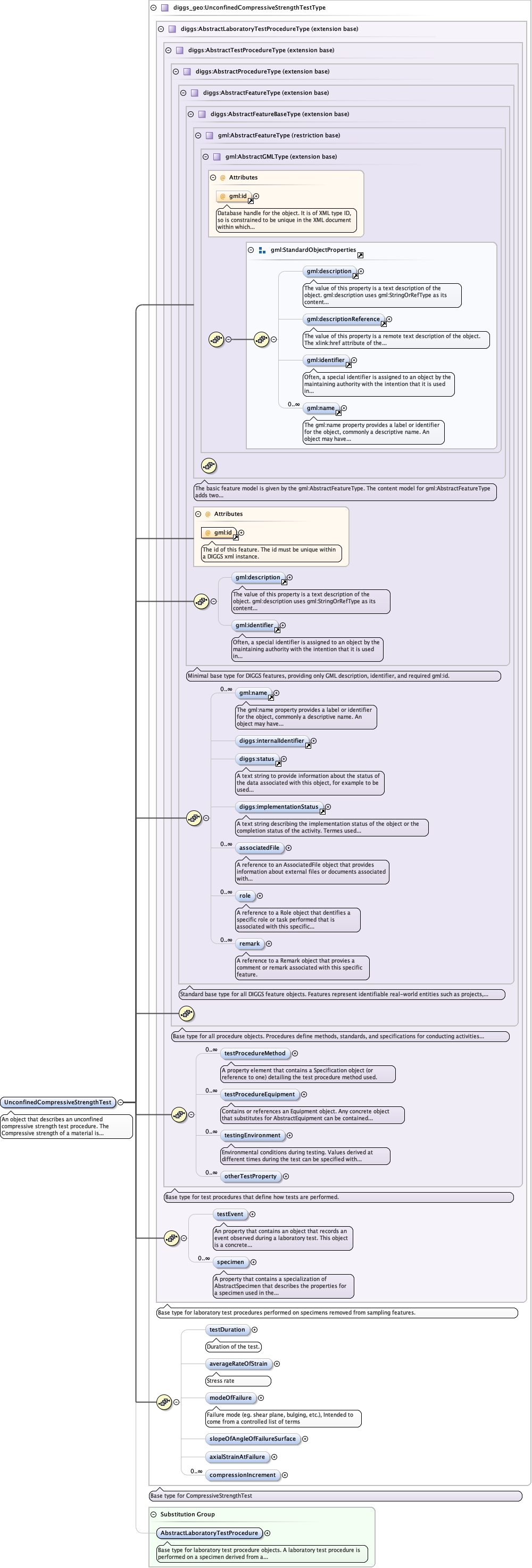

Diagram
Type diggs_geo:UnconfinedCompressiveStrengthTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs_geo:testDuration{0,1} ,
diggs_geo:averageRateOfStrain{0,1} ,
diggs_geo:modeOfFailure{0,1} ,
diggs_geo:slopeOfAngleOfFailureSurface{0,1} ,
diggs_geo:axialStrainAtFailure{0,1} ,
diggs_geo:compressionIncrement*
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:remark diggs:role diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs_geo:averageRateOfStrain diggs_geo:axialStrainAtFailure diggs_geo:compressionIncrement diggs_geo:modeOfFailure diggs_geo:slopeOfAngleOfFailureSurface diggs_geo:testDuration gml:description gml:identifier gml:name
Instance
<diggs_geo:UnconfinedCompressiveStrengthTest gml:id= "" xmlns:diggs_geo= "http://diggsml.org/schemas/3/geotechnical" xmlns:gml= "http://www.opengis.net/gml/3.2" xmlns:diggs= "http://diggsml.org/schemas/3" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs_geo:testDuration howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:testDuration>
<diggs_geo:averageRateOfStrain howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:averageRateOfStrain>
<diggs_geo:modeOfFailure codeSpace= "" > {0,1} </diggs_geo:modeOfFailure>
<diggs_geo:slopeOfAngleOfFailureSurface howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:slopeOfAngleOfFailureSurface>
<diggs_geo:axialStrainAtFailure howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:axialStrainAtFailure>
<diggs_geo:compressionIncrement > {0,unbounded} </diggs_geo:compressionIncrement>
</diggs_geo:UnconfinedCompressiveStrengthTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "UnconfinedCompressiveStrengthTest" substitutionGroup= "diggs:AbstractLaboratoryTestProcedure" type= "diggs_geo:UnconfinedCompressiveStrengthTestType" >
<annotation >
<documentation > An object that describes an unconfined compressive strength test procedure. The Compressive strength of a material is that value of uniaxial compressive stress reached when the material fails </documentation>
</annotation>
</element>
