Namespace http://diggsml.org/schemas/3/geotechnical
Annotations
An object describing the properties of an in-situ static cone test procedure. This Test is an in situ testing method used to determine
the geotechnical engineering properties of soils and delineating soil stratigraphy.
The test method consists of pushing an instrumented cone, with the tip facing down,
into the ground at a controlled rate.

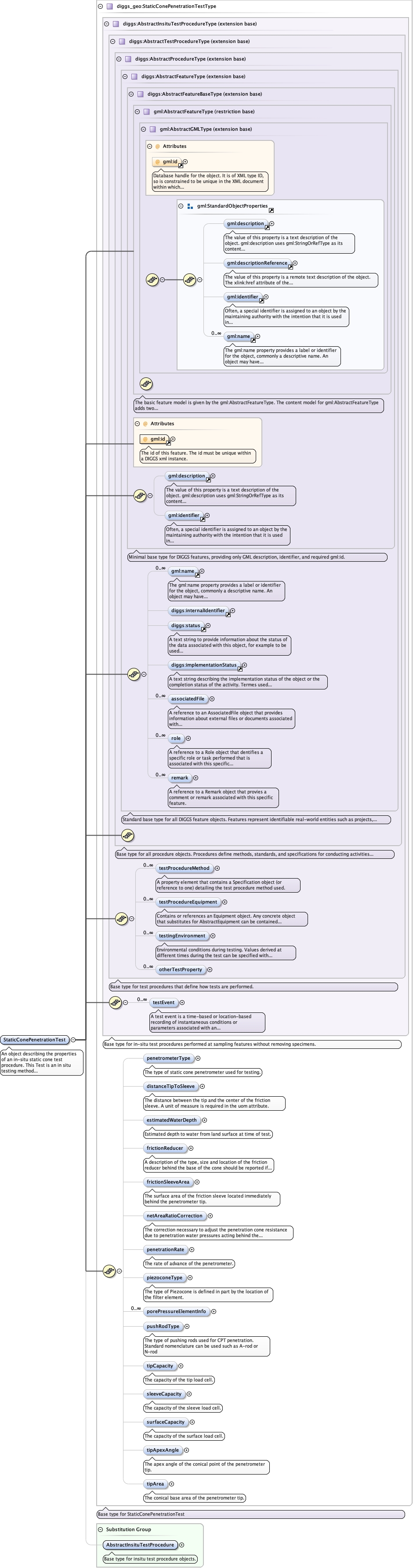

Diagram
Type diggs_geo:StaticConePenetrationTestType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent* ,
diggs_geo:penetrometerType{0,1} ,
diggs_geo:distanceTipToSleeve{0,1} ,
diggs_geo:estimatedWaterDepth{0,1} ,
diggs_geo:frictionReducer{0,1} ,
diggs_geo:frictionSleeveArea{0,1} ,
diggs_geo:netAreaRatioCorrection{0,1} ,
diggs_geo:penetrationRate{0,1} ,
diggs_geo:piezoconeType{0,1} ,
diggs_geo:porePressureElementInfo* ,
diggs_geo:pushRodType{0,1} ,
diggs_geo:tipCapacity{0,1} ,
diggs_geo:sleeveCapacity{0,1} ,
diggs_geo:surfaceCapacity{0,1} ,
diggs_geo:tipApexAngle{0,1} ,
diggs_geo:tipArea{0,1}
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:remark diggs:role diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs_geo:distanceTipToSleeve diggs_geo:estimatedWaterDepth diggs_geo:frictionReducer diggs_geo:frictionSleeveArea diggs_geo:netAreaRatioCorrection diggs_geo:penetrationRate diggs_geo:penetrometerType diggs_geo:piezoconeType diggs_geo:porePressureElementInfo diggs_geo:pushRodType diggs_geo:sleeveCapacity diggs_geo:surfaceCapacity diggs_geo:tipApexAngle diggs_geo:tipArea diggs_geo:tipCapacity gml:description gml:identifier gml:name
Instance
<diggs_geo:StaticConePenetrationTest gml:id= "" xmlns:diggs_geo= "http://diggsml.org/schemas/3/geotechnical" xmlns:gml= "http://www.opengis.net/gml/3.2" xmlns:diggs= "http://diggsml.org/schemas/3" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,unbounded} </diggs:testEvent>
<diggs_geo:penetrometerType codeSpace= "" > {0,1} </diggs_geo:penetrometerType>
<diggs_geo:distanceTipToSleeve howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:distanceTipToSleeve>
<diggs_geo:estimatedWaterDepth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:estimatedWaterDepth>
<diggs_geo:frictionReducer > {0,1} </diggs_geo:frictionReducer>
<diggs_geo:frictionSleeveArea howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:frictionSleeveArea>
<diggs_geo:netAreaRatioCorrection > {0,1} </diggs_geo:netAreaRatioCorrection>
<diggs_geo:penetrationRate howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:penetrationRate>
<diggs_geo:piezoconeType codeSpace= "" > {0,1} </diggs_geo:piezoconeType>
<diggs_geo:porePressureElementInfo > {0,unbounded} </diggs_geo:porePressureElementInfo>
<diggs_geo:pushRodType codeSpace= "" > {0,1} </diggs_geo:pushRodType>
<diggs_geo:tipCapacity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:tipCapacity>
<diggs_geo:sleeveCapacity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:sleeveCapacity>
<diggs_geo:surfaceCapacity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:surfaceCapacity>
<diggs_geo:tipApexAngle howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:tipApexAngle>
<diggs_geo:tipArea howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:tipArea>
</diggs_geo:StaticConePenetrationTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "StaticConePenetrationTest" type= "diggs_geo:StaticConePenetrationTestType" substitutionGroup= "diggs:AbstractInsituTestProcedure" >
<annotation >
<documentation > An object describing the properties of an in-situ static cone test procedure. This Test is an in situ testing method used to determine the geotechnical engineering properties of soils and delineating soil stratigraphy. The test method consists of pushing an instrumented cone, with the tip facing down, into the ground at a controlled rate. </documentation>
</annotation>
</element>
