Element diggs_geo:PorePressureDissipationTest
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

The Pore Pressure Dissipation Test occurs as part of a static cone penetration test, where the probe stops advancing and easured excess pore pressures are recorded over time. It is used to measure equilibrium pore pressure and to estimate in situ horizontal coefficient of
consolidation (ch) and in situ horizontal coefficient of permeability (kh)

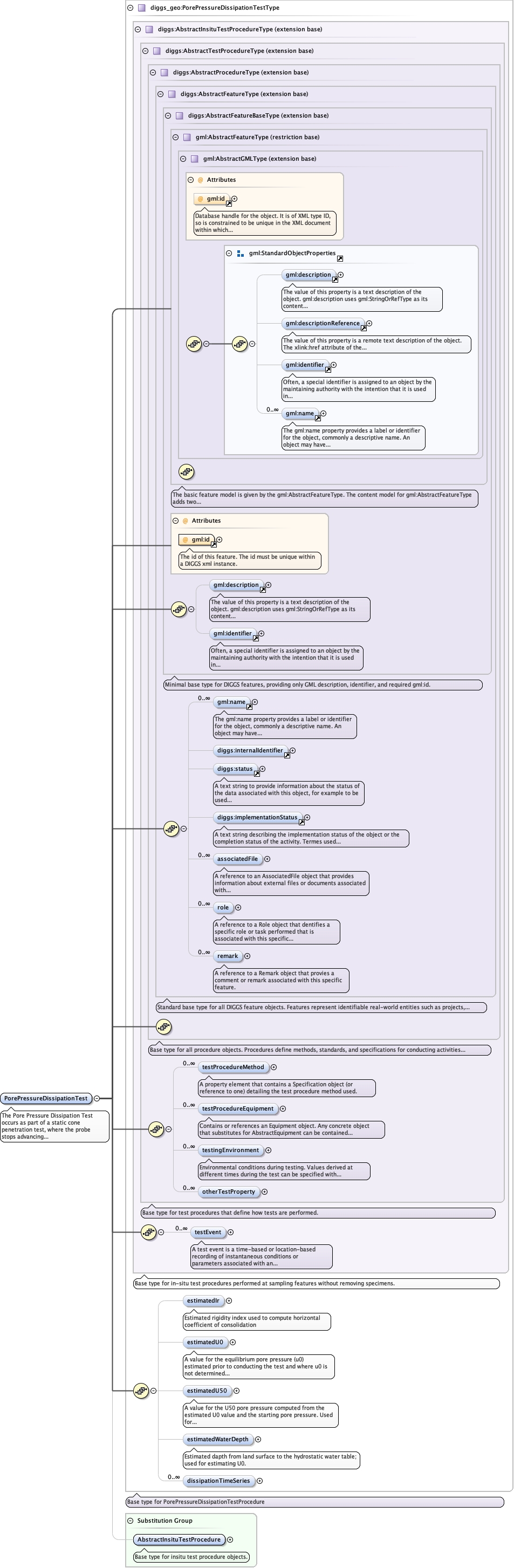

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestType_estimatedIrDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestType_estimatedU0Diggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestType_estimatedU50Diggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestType_estimatedWaterDepthDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestType_dissipationTimeSeriesDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_PorePressureDissipationTestType.tmp#http___diggsml.org_schemas_3_geotechnical_PorePressureDissipationTestTypeAbstractTypes_xsd_Element_diggs_AbstractInsituTestProcedure.tmp#AbstractInsituTestProcedure
Type diggs_geo:PorePressureDissipationTestType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs_geo:dissipationTimeSeries, diggs_geo:estimatedIr, diggs_geo:estimatedU0, diggs_geo:estimatedU50, diggs_geo:estimatedWaterDepth, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:PorePressureDissipationTest gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs_geo:estimatedIr howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:estimatedIr>
  <diggs_geo:estimatedU0 howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:estimatedU0>
  <diggs_geo:estimatedU50 howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:estimatedU50>
  <diggs_geo:estimatedWaterDepth howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:estimatedWaterDepth>
  <diggs_geo:dissipationTimeSeries>{0,unbounded}</diggs_geo:dissipationTimeSeries>
</diggs_geo:PorePressureDissipationTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="PorePressureDissipationTest" type="diggs_geo:PorePressureDissipationTestType" substitutionGroup="diggs:AbstractInsituTestProcedure" abstract="false">
  <annotation>
    <documentation>The Pore Pressure Dissipation Test occurs as part of a static cone penetration test, where the probe stops advancing and easured excess pore pressures are recorded over time. It is used to measure equilibrium pore pressure and to estimate in situ horizontal coefficient of consolidation (ch) and in situ horizontal coefficient of permeability (kh)</documentation>
  </annotation>
</element>
