Namespace http://diggsml.org/schemas/3/geotechnical
Annotations
An object describing an in-situ vahe shear test procedure. This test gives the in place shearing resistance of
soft, saturated clays.

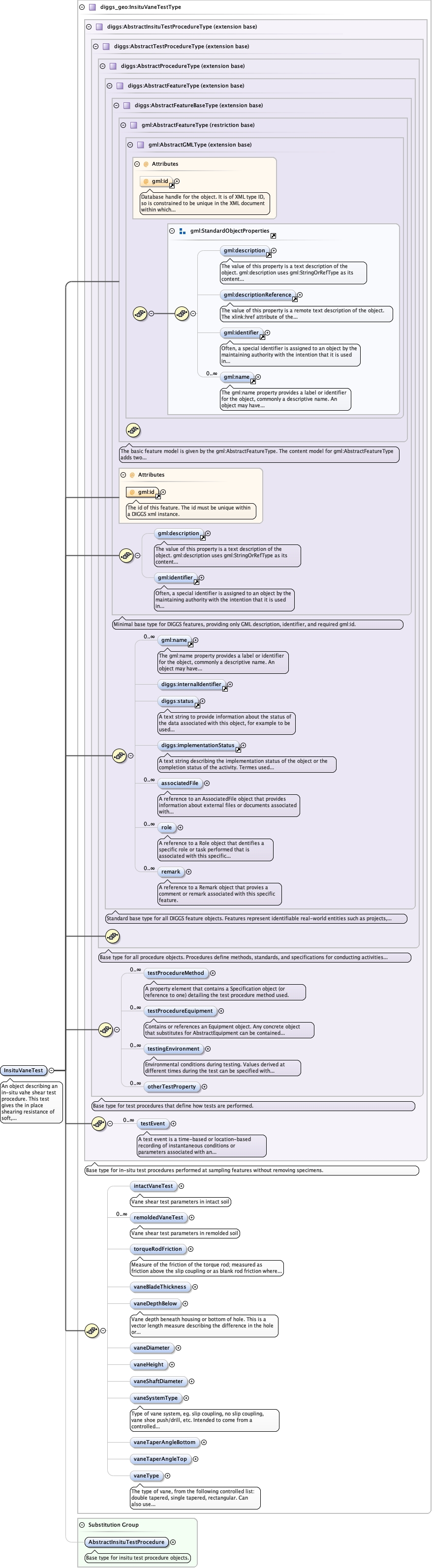

Diagram
Type diggs_geo:InsituVaneTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent* ,
diggs_geo:intactVaneTest{0,1} ,
diggs_geo:remoldedVaneTest* ,
diggs_geo:torqueRodFriction{0,1} ,
diggs_geo:vaneBladeThickness{0,1} ,
diggs_geo:vaneDepthBelow{0,1} ,
diggs_geo:vaneDiameter{0,1} ,
diggs_geo:vaneHeight{0,1} ,
diggs_geo:vaneShaftDiameter{0,1} ,
diggs_geo:vaneSystemType{0,1} ,
diggs_geo:vaneTaperAngleBottom{0,1} ,
diggs_geo:vaneTaperAngleTop{0,1} ,
diggs_geo:vaneType{0,1}
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:remark diggs:role diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs_geo:intactVaneTest diggs_geo:remoldedVaneTest diggs_geo:torqueRodFriction diggs_geo:vaneBladeThickness diggs_geo:vaneDepthBelow diggs_geo:vaneDiameter diggs_geo:vaneHeight diggs_geo:vaneShaftDiameter diggs_geo:vaneSystemType diggs_geo:vaneTaperAngleBottom diggs_geo:vaneTaperAngleTop diggs_geo:vaneType gml:description gml:identifier gml:name
Instance
<diggs_geo:InsituVaneTest gml:id= "" xmlns:diggs_geo= "http://diggsml.org/schemas/3/geotechnical" xmlns:gml= "http://www.opengis.net/gml/3.2" xmlns:diggs= "http://diggsml.org/schemas/3" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,unbounded} </diggs:testEvent>
<diggs_geo:intactVaneTest > {0,1} </diggs_geo:intactVaneTest>
<diggs_geo:remoldedVaneTest > {0,unbounded} </diggs_geo:remoldedVaneTest>
<diggs_geo:torqueRodFriction howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:torqueRodFriction>
<diggs_geo:vaneBladeThickness howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneBladeThickness>
<diggs_geo:vaneDepthBelow howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneDepthBelow>
<diggs_geo:vaneDiameter howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneDiameter>
<diggs_geo:vaneHeight howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneHeight>
<diggs_geo:vaneShaftDiameter howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneShaftDiameter>
<diggs_geo:vaneSystemType codeSpace= "" > {0,1} </diggs_geo:vaneSystemType>
<diggs_geo:vaneTaperAngleBottom howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneTaperAngleBottom>
<diggs_geo:vaneTaperAngleTop howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs_geo:vaneTaperAngleTop>
<diggs_geo:vaneType > {0,1} </diggs_geo:vaneType>
</diggs_geo:InsituVaneTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "InsituVaneTest" abstract= "false" type= "diggs_geo:InsituVaneTestType" substitutionGroup= "diggs:AbstractInsituTestProcedure" >
<annotation >
<documentation > An object describing an in-situ vahe shear test procedure. This test gives the in place shearing resistance of soft, saturated clays. </documentation>
</annotation>
</element>
