Element diggs_geo:FlatPlateDilatometerTest
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object describing a flat plate dilatometer test procedure. This test consists of forcing the dilatometer blade into the soil, with
the membrane facing the horizontal direction, to a desired test penetration,
measuring the thrust to accomplish this penetration and then using gas pressure to
expand a circular steel membrane located on one side of the blade. The operator
measures and records the pressure required to produce expansion of the membrane into
the soil at two preset deflections. The operator then deflates the membrane,
possibly recording an optional third measurement, advances the blade the desired
penetration increment and repeats the test.

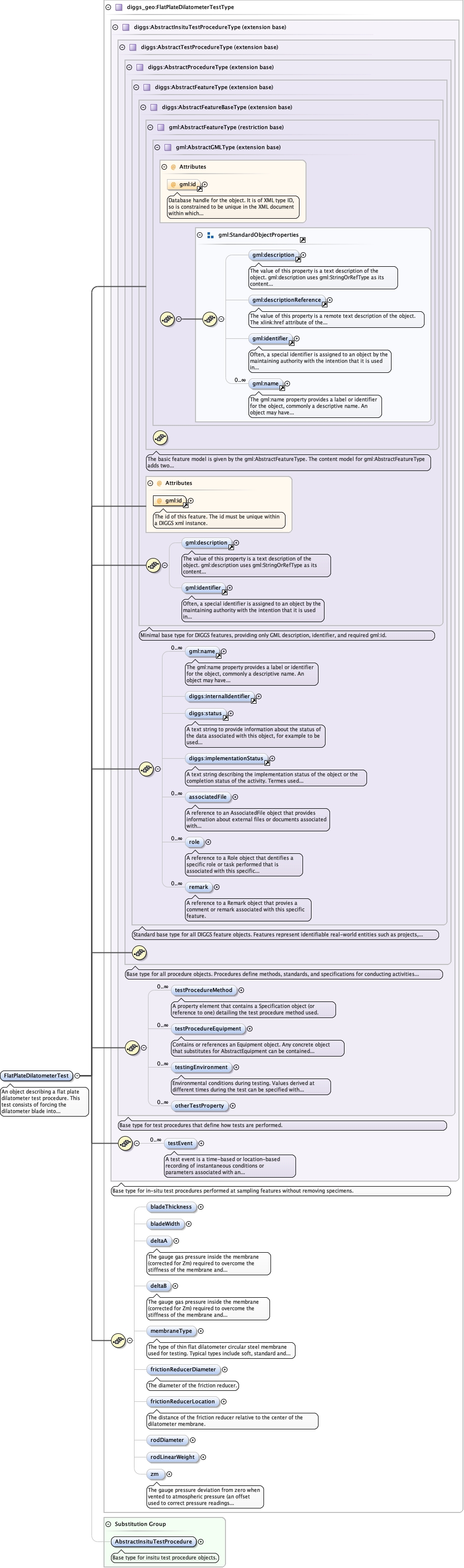

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_bladeThicknessDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_bladeWidthDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_deltaADiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_deltaBDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_membraneTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_frictionReducerDiameterDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_frictionReducerLocationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_rodDiameterDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_rodLinearWeightDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestType_zmDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_FlatPlateDilatometerTestType.tmp#http___diggsml.org_schemas_3_geotechnical_FlatPlateDilatometerTestTypeAbstractTypes_xsd_Element_diggs_AbstractInsituTestProcedure.tmp#AbstractInsituTestProcedure
Type diggs_geo:FlatPlateDilatometerTestType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs_geo:bladeThickness, diggs_geo:bladeWidth, diggs_geo:deltaA, diggs_geo:deltaB, diggs_geo:frictionReducerDiameter, diggs_geo:frictionReducerLocation, diggs_geo:membraneType, diggs_geo:rodDiameter, diggs_geo:rodLinearWeight, diggs_geo:zm, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:FlatPlateDilatometerTest gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,unbounded}</diggs:testEvent>
  <diggs_geo:bladeThickness howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:bladeThickness>
  <diggs_geo:bladeWidth howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:bladeWidth>
  <diggs_geo:deltaA howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:deltaA>
  <diggs_geo:deltaB howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:deltaB>
  <diggs_geo:membraneType codeSpace="">{0,1}</diggs_geo:membraneType>
  <diggs_geo:frictionReducerDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:frictionReducerDiameter>
  <diggs_geo:frictionReducerLocation howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:frictionReducerLocation>
  <diggs_geo:rodDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:rodDiameter>
  <diggs_geo:rodLinearWeight howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:rodLinearWeight>
  <diggs_geo:zm howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:zm>
</diggs_geo:FlatPlateDilatometerTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="FlatPlateDilatometerTest" type="diggs_geo:FlatPlateDilatometerTestType" substitutionGroup="diggs:AbstractInsituTestProcedure">
  <annotation>
    <documentation>An object describing a flat plate dilatometer test procedure. This test consists of forcing the dilatometer blade into the soil, with the membrane facing the horizontal direction, to a desired test penetration, measuring the thrust to accomplish this penetration and then using gas pressure to expand a circular steel membrane located on one side of the blade. The operator measures and records the pressure required to produce expansion of the membrane into the soil at two preset deflections. The operator then deflates the membrane, possibly recording an optional third measurement, advances the blade the desired penetration increment and repeats the test.</documentation>
  </annotation>
</element>
