Element diggs_geo:DsConConsolidationIncrement
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object containing properties of a single consolidation increment within loading increment of a direct shear test procedure.

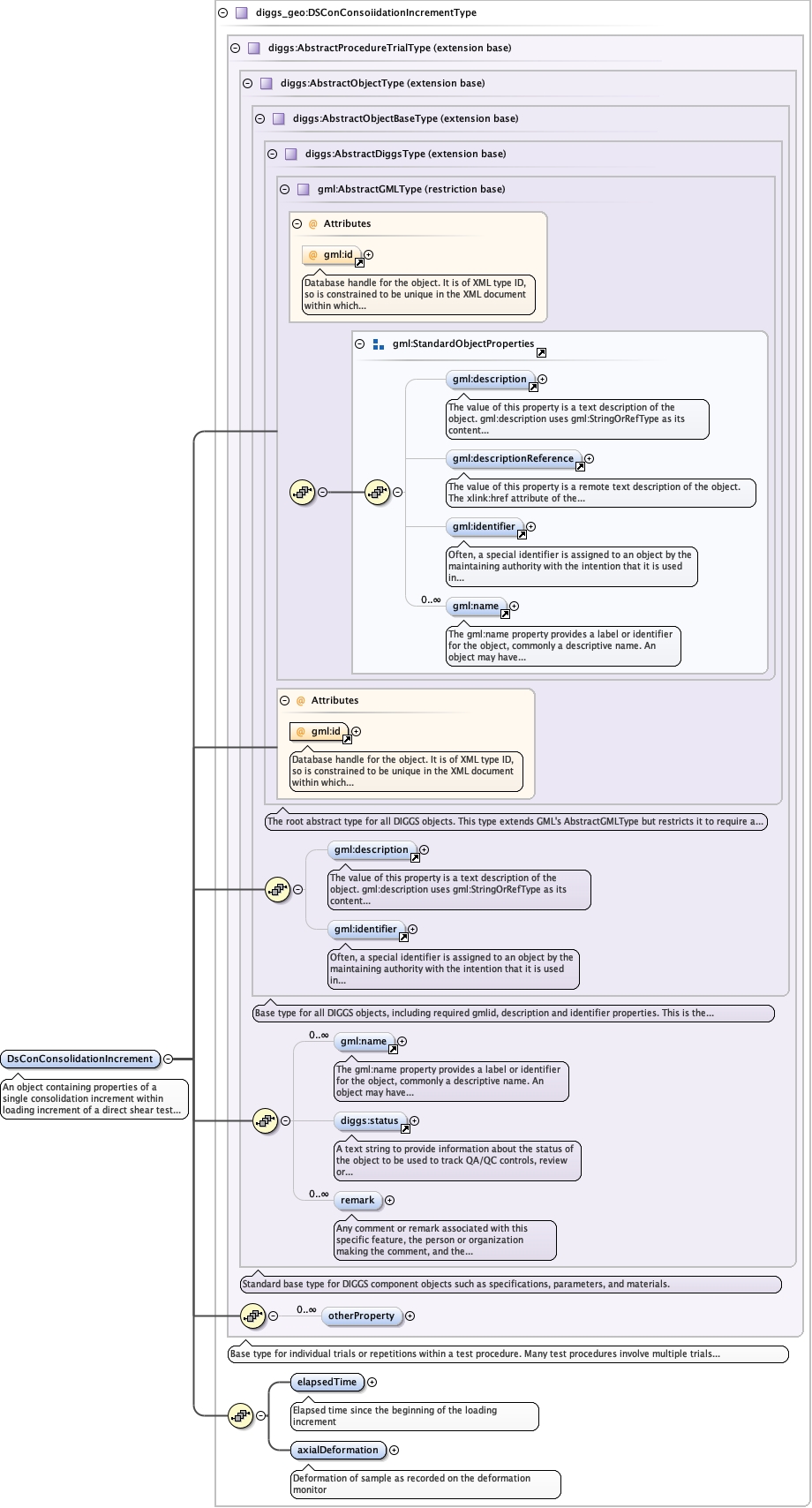

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DSConConsoiidationIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DSConConsoiidationIncrementType_elapsedTimeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DSConConsoiidationIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DSConConsoiidationIncrementType_axialDeformationDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_DSConConsoiidationIncrementType.tmp#http___diggsml.org_schemas_3_geotechnical_DSConConsoiidationIncrementType
Type diggs_geo:DSConConsoiidationIncrementType
Type hierarchy
Properties
content complex
Used by
Complex Type diggs_geo:DSConConsolidationIncrementPropertyType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:otherProperty* , diggs_geo:elapsedTime , diggs_geo:axialDeformation
Children diggs:otherProperty, diggs:remark, diggs:status, diggs_geo:axialDeformation, diggs_geo:elapsedTime, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:DsConConsolidationIncrement gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs_geo:elapsedTime howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:elapsedTime>
  <diggs_geo:axialDeformation howDetermined="" qualifier="" uom="">{1,1}</diggs_geo:axialDeformation>
</diggs_geo:DsConConsolidationIncrement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DsConConsolidationIncrement" type="diggs_geo:DSConConsoiidationIncrementType">
  <annotation>
    <documentation>An object containing properties of a single consolidation increment within loading increment of a direct shear test procedure.</documentation>
  </annotation>
</element>
