Element diggs:AbstractProcedureTrialType / diggs:otherProperty
Namespace http://diggsml.org/schemas/3

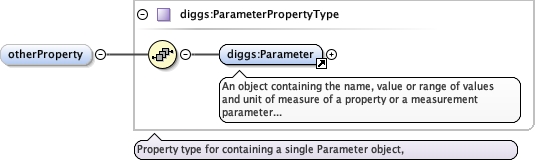

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherProperty" type="diggs:ParameterPropertyType"/>
Complex Type diggs:AbstractProcedureTrialType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for individual trials or repetitions within a test procedure. Many test procedures involve multiple trials (e.g., multiple readings, repeat measurements, or staged loading sequences). Each trial represents a discrete execution of the test methodology, and the trial results can be aggregated or analyzed to produce the final test result. Common examples include multiple blows in a Standard Penetration Test or repeated readings in a laboratory consolidation test.

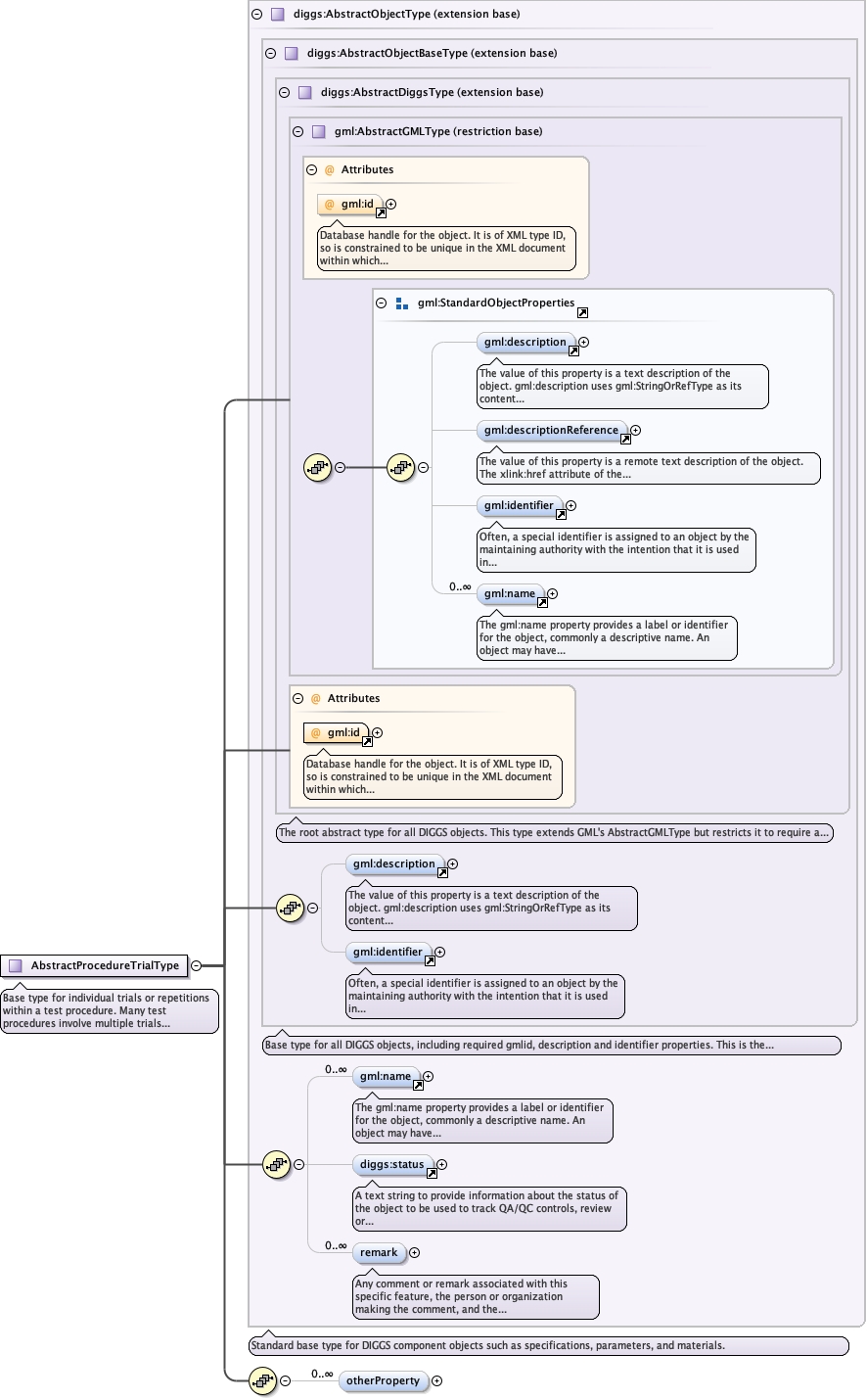

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherProperty
Type extension of diggs:AbstractObjectType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:otherProperty, diggs:remark, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractProcedureTrialType" abstract="true">
  <annotation>
    <documentation>Base type for individual trials or repetitions within a test procedure. Many test procedures involve multiple trials (e.g., multiple readings, repeat measurements, or staged loading sequences). Each trial represents a discrete execution of the test methodology, and the trial results can be aggregated or analyzed to produce the final test result. Common examples include multiple blows in a Standard Penetration Test or repeated readings in a laboratory consolidation test.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" name="otherProperty" type="diggs:ParameterPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
